Toner Cable WS3G Series 3GHz Diode Steered Digital Splitter - Manual

Frequency (MHz) 5-40 MHz 40-550 MHz 550-950 MHz 950-2150 MHz 2150-3000 MHz
WS3G-2 Insertion Loss (max dB) 4.4 4.5 5.0 5.5 6
WS3G-3 Insertion Loss (max dB) 5.5/9.0 5.8/10.0 6.0/11.0 6.5/12.0 7.0/13.0
WS3G-4 Insertion Loss (max dB) 8.2 8.3 8.5 9 15.5
All models Isolation (min dB) 20 20 20 20 20
All models Input/Output 12 12 12 12 12
Return Loss (min dB)
Specifications Subject To Change Without Notice Rev 11-11 ©Toner Cable Equipment, Inc.
WS3G Series
3GHz Diode Steered Digital Splitter
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Features
• 5MHz to 3GHz Wideband operation suitable for digital and analog applications.
• Diode-steered provides circuitry protection while allowing DC power to pass from output ports to input port
without DC backfeeding (all ports).
• Flat frequency response for consistent system performance.
• High-performance printed circuit board provides improved hum modulation and intermodulation performance
to ensure superior picture quality.
• Solder-back case provides -130dB RFI shielding.
• Heavy-duty case and nickel plating ensure long-lasting performance in harsh environments.
• Flat-end ports provide for superior cable-to-port interface for maximum signal transfer.
Ordering Information

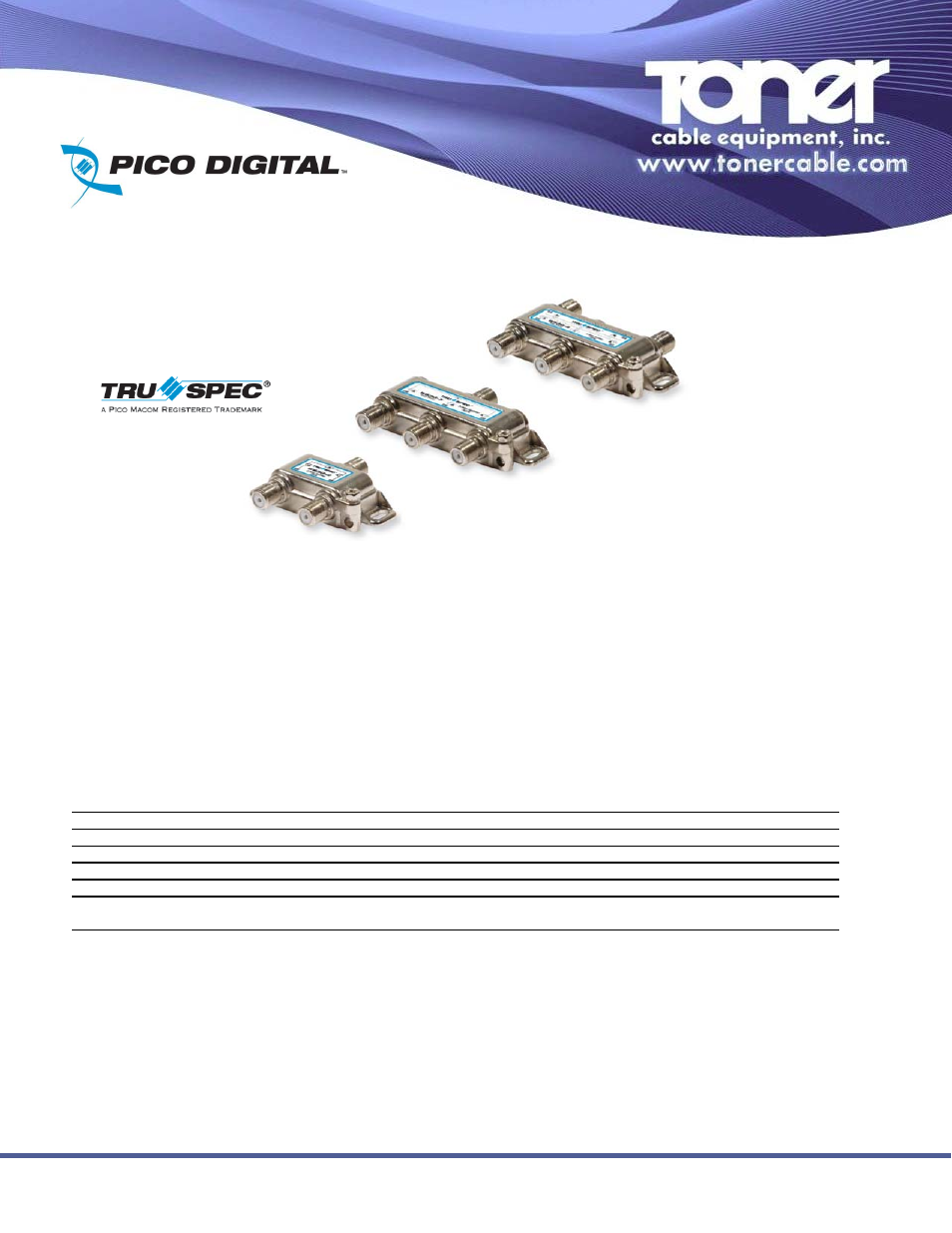

WS3G-2 2-Port Splitter 3GHz Diode Steered Digital Splitter
WS3G-3 3-Port Splitter 3GHz Diode Steered Digital Splitter
WS3G-4 4-Port Splitter 3GHz Diode Steered Digital Splitter
Specifications
WS3G-2
WS3G-3
WS3G-4
