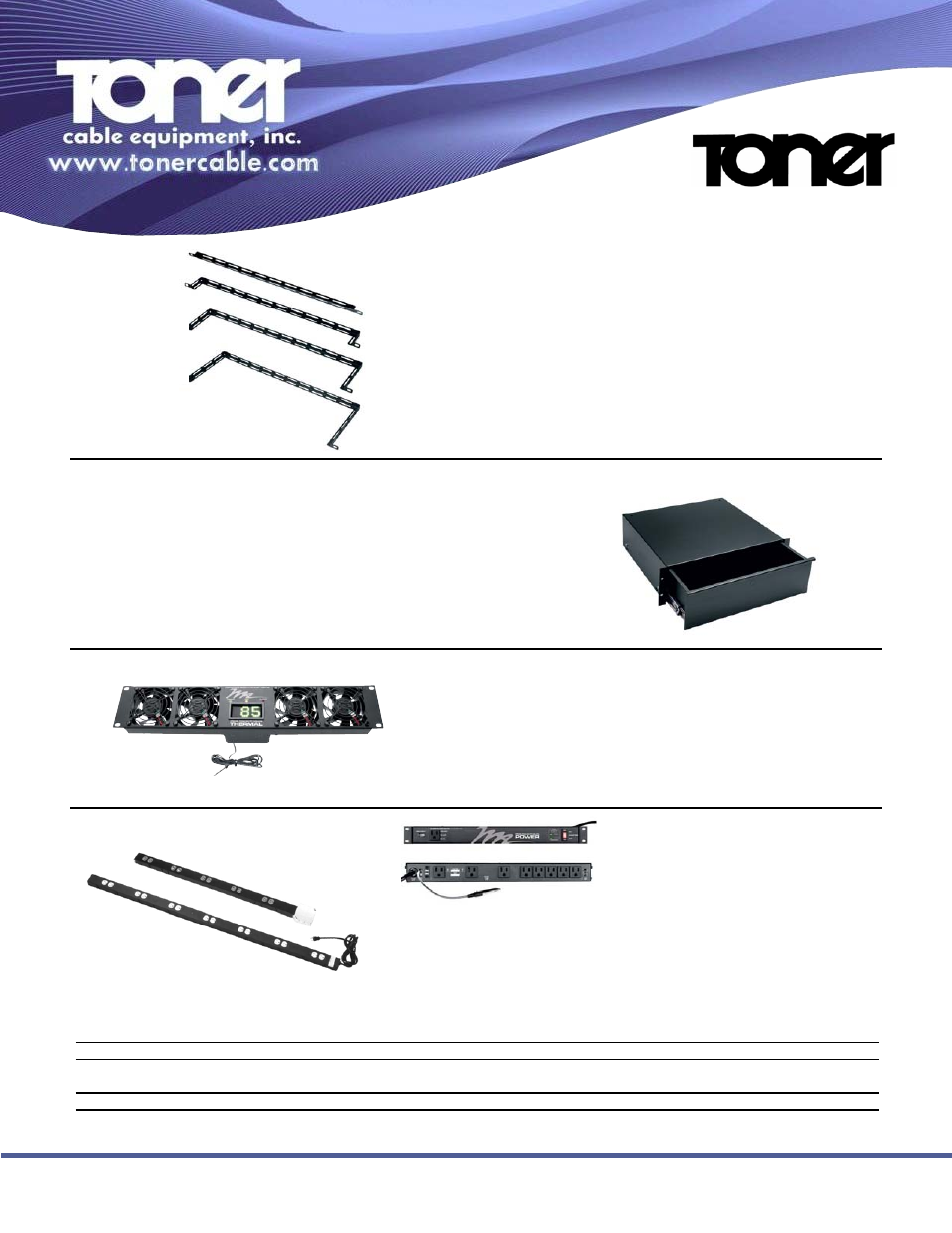

Headend Accessories
Lacer Bars (Horizontal)
19" black powder coated L shaped steel bars for cable
management.
Model Size
LBP-1A Straight
LBP-2A 2" Offset
LBP-4A 4" Offset
LBP-6A 6" Offset
LBP-1A
LBP-2A
LBP-4A
LBP-6A
UD Series Drawers
Fully enclosed design, rackmountable utility drawers available
in 2, 3 and 4 space. Features include face mounted drawer pull,
black powder coat finish, and 50 lb. weight capacity.
Model Size
UD2 15-15/16" W x 14-1/2" D 3-1/2" (2 space)
UD3 15-15/16" W x 14-1/2" D 5-1/4" (3 space)
UD4 15-15/16" W x 14-1/2" D 7" (4 space)
UQFP-4D Ultra Quiet Fan Panel, 4 Fans
• 100 CFM cooling capacity
• Digital processor varies fan speed based on equipmenttemperature for ultra
quiet operation
• Front panel rack temperature and alert display provides instant system status
• Onboard digital processor monitors rack temperature via external sensor
• Local and remote notification of over temperature and fan fault to control system
• Available in 110V and 220V versions
Model Number of Outlets Circuits Nema Outlets wire Circuit Protection Surge UL NEMA
Outlet Accomodate Gauge and EMI Standard Plug
Type Filter Type
PD-1020C-NS 10 (5 DUPLEX) (1) 20 AMP 5-20R 5-15P & 5-20P 12 20 AMP CIRCUIT BREAKER NONE 1363 5-20P
PD-1415C 14 (7 DUPLEX) (1) 15 AMP 5-15R 5-15P 14 15 AMP CIRCUIT BREAKER YES 1363 5-15P
& 1449
PD-1415C-NS 14 (7 DUPLEX) (1) 15 AMP 5-15R 5-15P 14 15 AMP CIRCUIT BREAKER NONE 1363 5-15P
• 2 stage surge suppression protects against
damage from power surges and spikes
• Provides notification when surge protection is com-
promised via local LEDs and dry contact
• 9 vertically oriented and circuit-breaker protected
15 amp outlets, 8 rear and 1 front, spaced for
plug-in power supplies
• 3 USB style output ports for connection of LED
gooseneck work lights, 2 rear and 1 front
• Maximum load of 15 amps
PD-915RV-RN
Rackmount Power PD-1415C
PD-1020C-NS
