Toner Cable ezDROP Flat Dielectric & Toneable Flat Drop Cable User Manual
Ezdrop, Flat, Dielectric & toneable flat drop cable
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
05/07
Dr
aka ezDR
OP
TM
| F
la
t Dr
op Ca
ble
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
Product Snapshot
Applications
Multi-purpose FTTx – Aerial Self-
Support, Direct Buried, Duct
Constructions
Flat profile (Dielectric, Toneable)
Fiber Count
1 to 12 fibers
Fiber Types
BendBright™ Singlemode Fiber stan-
dard
Options
Packaging: Portable Box / Spool / Bulk
Reel
Preconnectorized: 1 or 2 ends
Performance
ANSI/ICEA, IEC, RUS, Telcordia GR-
20 drop cable requirements
ezDROP
TM
| Flat
Features & Benefits
Easy Cable Entry & Preparation
Flat profile utilizes economical wedge clamps
Compatible with existing installation hardware & methods
Ripcord speeds cable entry & jacket removal
Toning wire enables underground location (toneable
option)
Flexible Routing & Termination
Flexible buffer tube simplifies routing & splicing
Preconnectorized option for plug & play connectivity
Standard BendBright™ bend-tolerant singlemode
Multi-purpose Installation & Use
Suitable for self-support aerial, duct, & buried
Portable box & spool packaging
Reliable Lifetime Performance
Exclusive ColorLock® fiber coating for permanent embed-
ded color & long-term performance
Proven water-blocking with swellable core elements &
gel-filled buffer tube
Guaranteed standards-based performance
Dielectric & Toneable Flat Drop Cable
Flat out the easiest fiber drop cable to handle,
access and terminate.
Draka’s ezDROP | Flat version provides easy FTTx (Fiber-To-The-
X) installation and termination using existing hardware and methods
for drops to homes and businesses. Its flat profile is compatible with
economical wedge clamps for self-support aerial spans up to 300
feet, depending on environmental loading. An all-dielectric version
eliminates the need for bonding and grounding. A toneable version
adds a 24 AWG conductor that provides underground location capa-
bility, attached by a web for easy tear-away separation
from the cable — the most popular option for underground and
multi-purpose installation.
Portable boxes and spools simplify widespread deployment, and
preconnectorized ezDROP cables enable plug & play connectivity
for quick subscriber additions. Draka’s exclusive BendBright fiber
provides craft-friendly bend tolerance over the entire singlemode
wavelength spectrum.

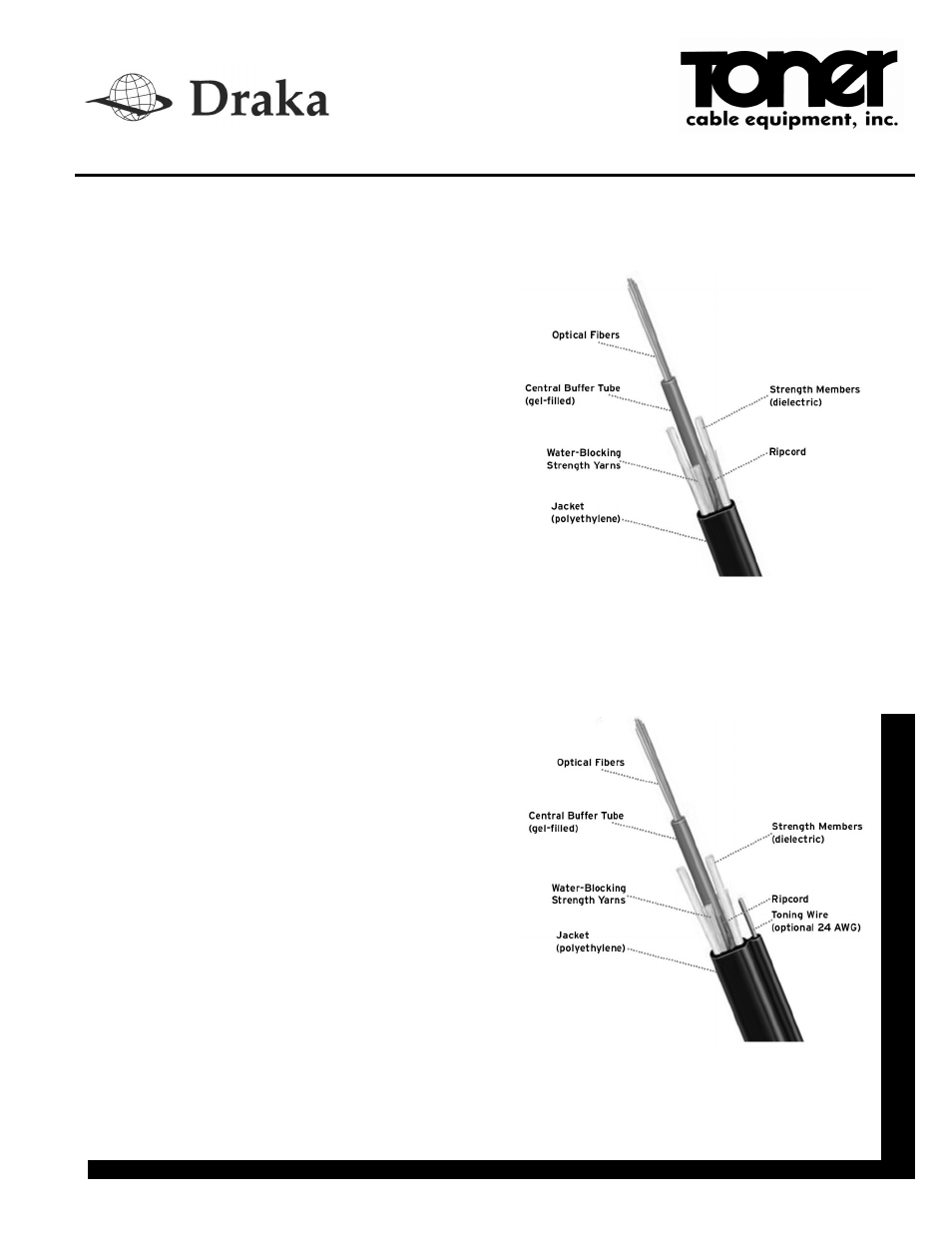

Dielectric Flat Drop
Toneable Flat Drop
