Eas12b specifications – Toner Cable EAS12B EAS 12B Emergency Alert System User Manual
Page 2
©Toner Cable Equipment, Inc.
Specifications Subject To Change Without Notice.
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
Pico Macom EAS12B Emer
genc
y Aler
t System
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com

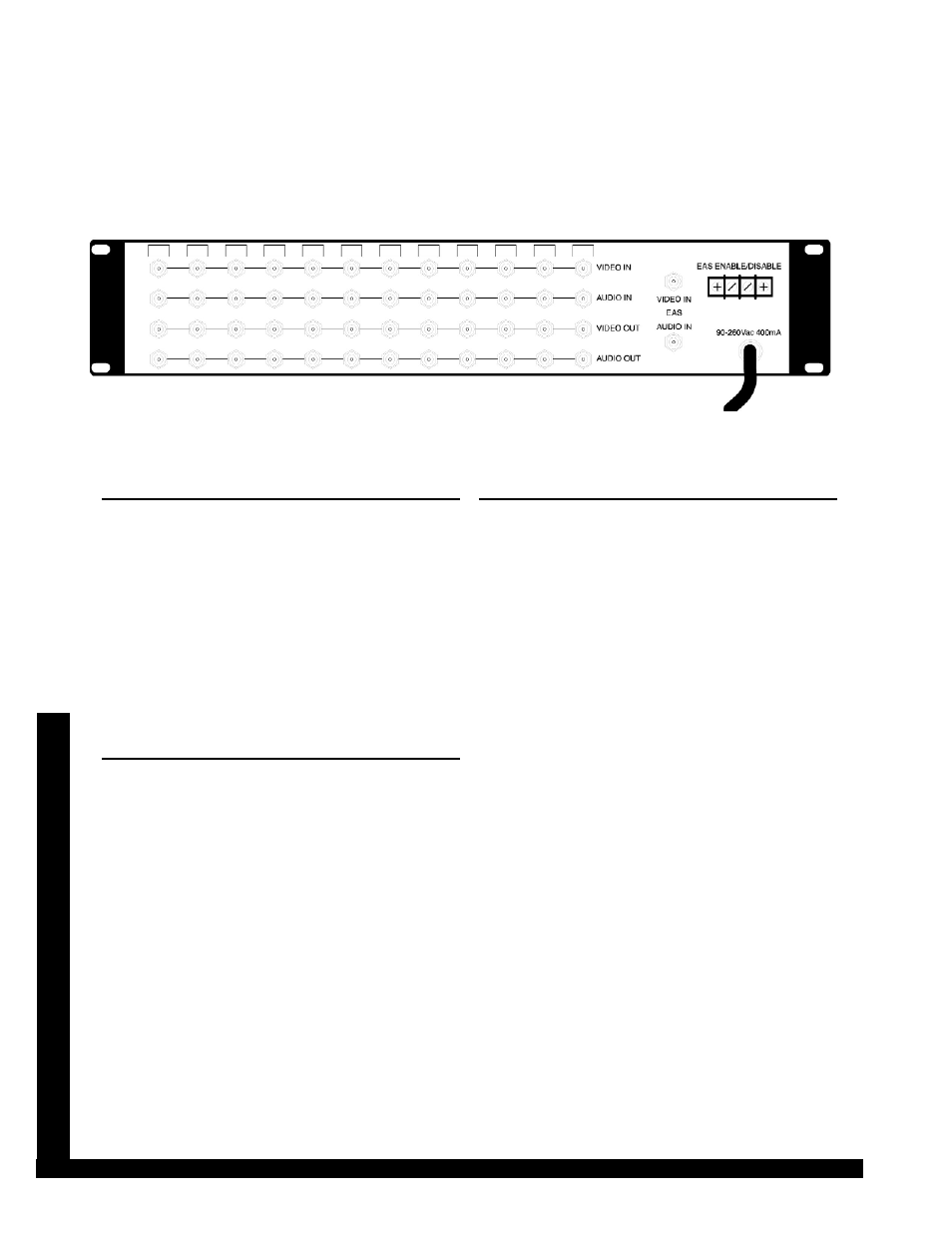

EAS12B Specifications
VIDEO
Frequency:
DC to 200 MHz
Flatness:
±0.1 dB
Insertion Loss:
0 dB
Impedance:
75 ohms
Return Loss:
>40 dB
Cross Talk:
>-100 dB @ 4.2 MHz
>-90 dB @ 10 MHz
>-60 dB @ 100 MHz
Differential Gain:
0.1%
Differential Phase:
0.1°
Chroma Luma Delay:
FCC Compliant
Isolation:
>-90 dB @ 4.2 MHz
>-87 dB @ 10 MHz
>-60 dB @ 100 MHz
GENERAL
Power Input
Input:
90 VAC 260 VAC
Output:
20 VAC, 500 mA
Operating Temperature:
-10°C to 50°C
Dimensions:
19”L x 9”D x 3 1/2”H
Weight:
3.5 lbs
Connectors:
Video/Audio:
“F” Type
Return Loss:
>25 dB
Switching Speed:
<1 ms
Switching Voltage:
TTL Level, 0, 5 VDC,
2 pin terminal strip
AUDIO
Frequency:
15 Hz to 130 kHz
Insertion Loss:
0 dB
Impedance:
600 ohms
