Ordering Information
Chassis & Controllers
3700FR
6RU Chassis with Redundant Power Supplies
7800FR 3RU Chassis with Redundant Power Supplies
3700FC 3700FR Frame Controller
Signal Interfaces:
Video
7790VM-8
8xSD-SDI/DVB-ASI Input ports Signal Interface
7790VD-8 8xSD-SDI/DVB-ASI Output ports Signal Interface
7790VM-4-HS 2xHD-SDI or 4xSD-SDI/DVB-ASI or 1xHD-SDI with 3xSD-SDII/DVB-ASI
Input ports Signal Interface
7790VD-4-HS 2xHD-SDI or 4xSD-SDI/DVB-ASI or 1xHD-SDI with 3xSD-SDI/DVB-ASI
Output ports Signal Interface
Audio
7790AESM-8
8xAES Audio Input Signal Interface
7790AESD-8 8xAES Audio Output Signal Interface
Data/Telco
7790GT-8
8xPort 10/100/1000 Ethernet Switch Signal Interface
7790GT-2 Dual Port 10/100/1000 Signal Interface
7790T1-8-DS3-2 T1/E1 and DS3/E3 Signal Interface
7790OC3-4 4xOC3/STM-1 Signal Interface
7790OC12 OC12/STM-4 Signal Interface
Trunk Interfaces
7795ALB-DS3-2
Dual DS3/E3 Trunk Interface
7795ALBA-OC3 OC3/STM-1 Trunk Interface
7795ALBA-OC12 OC12/STM-4 Trunk Interface
7795ALBA-OC48 OC48/STM-16 Trunk Interface
7795ALB-OC192 OC192/STM-64 Trunk Interface
7795ALB-GE 1-Gigabit Ethernet Trunk Interface
7795ALB-10GE 10-Gigabit Ethernet Trunk Interface
Switch Fabric
3700ALR-16x16
48Gb/s ATP Switch Fabric Module
3700ALR-24x24 72Gb/s ATP Switch Fabric Module
3700ALR-48x48 144Gb/s ATP Switch Fabric Module
7800ALR-16x16 48Gb/s ATP Switch Fabric Module
Electrical:
AC Input:
Auto ranging, 100 240V AC, 50/60Hz
Maximum Operating Current:
9.5A @ 115V AC nominal,
4.0A @ 220V AC nominal
Power Supply Configuration:
1 Standard, plus 1 optional redundant
Connector: IEC 60320 - 1 per power supply
Physical:
Height:
6RU - 10.5” (266mm)
Width & Depth: 19” (483mm), 14.5” (368mm)
Module Capacity: 16 x 77xx/78xx series slots
6 x 3xxx slots
Weight: Approx. 20lbs. (9kg) with 2 power
supplies, no slots occupied
Specifications
Expansion Options
Evertz ® ATP architecture allows for simple expansion beyond a single 3700FR or
7800FR chassis when additional Signal or Trunk interfaces exceed the slot count.
Additional 3700FR or 7800FR chassis can be easily added to increase capacity while
maintaining common and transparent control and monitoring through VistaLINK
® .

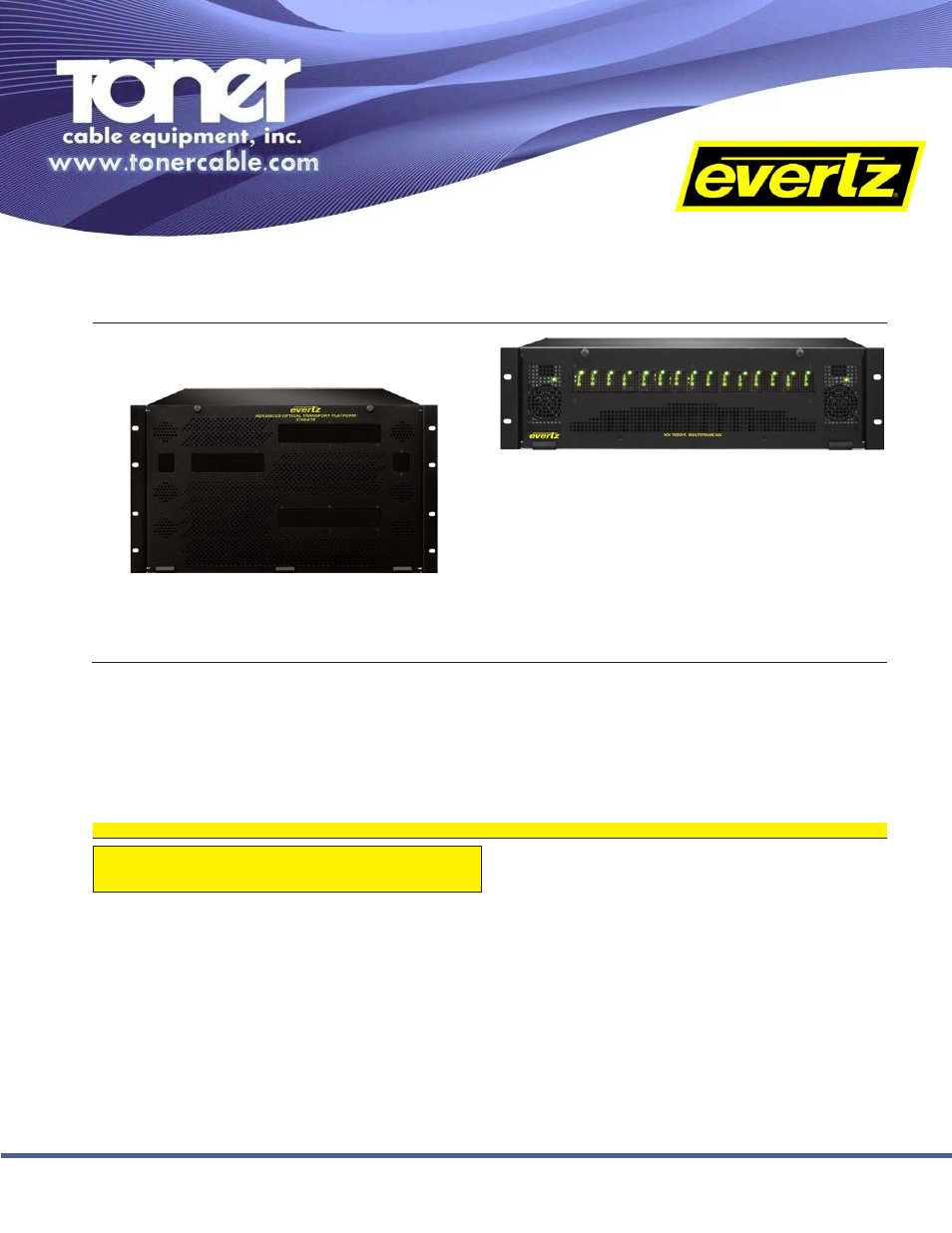

3700FR
6RU ATP Chassis
7800FR
3RU Multiframe which holds up to
15 single modules
