Hd video messaging system – Toner Cable VM4 HD Video Messaging System User Manual
Page 2
Specifications Subject To Change Without Notice
Rev 07-12
©Toner Cable Equipment, Inc.
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l

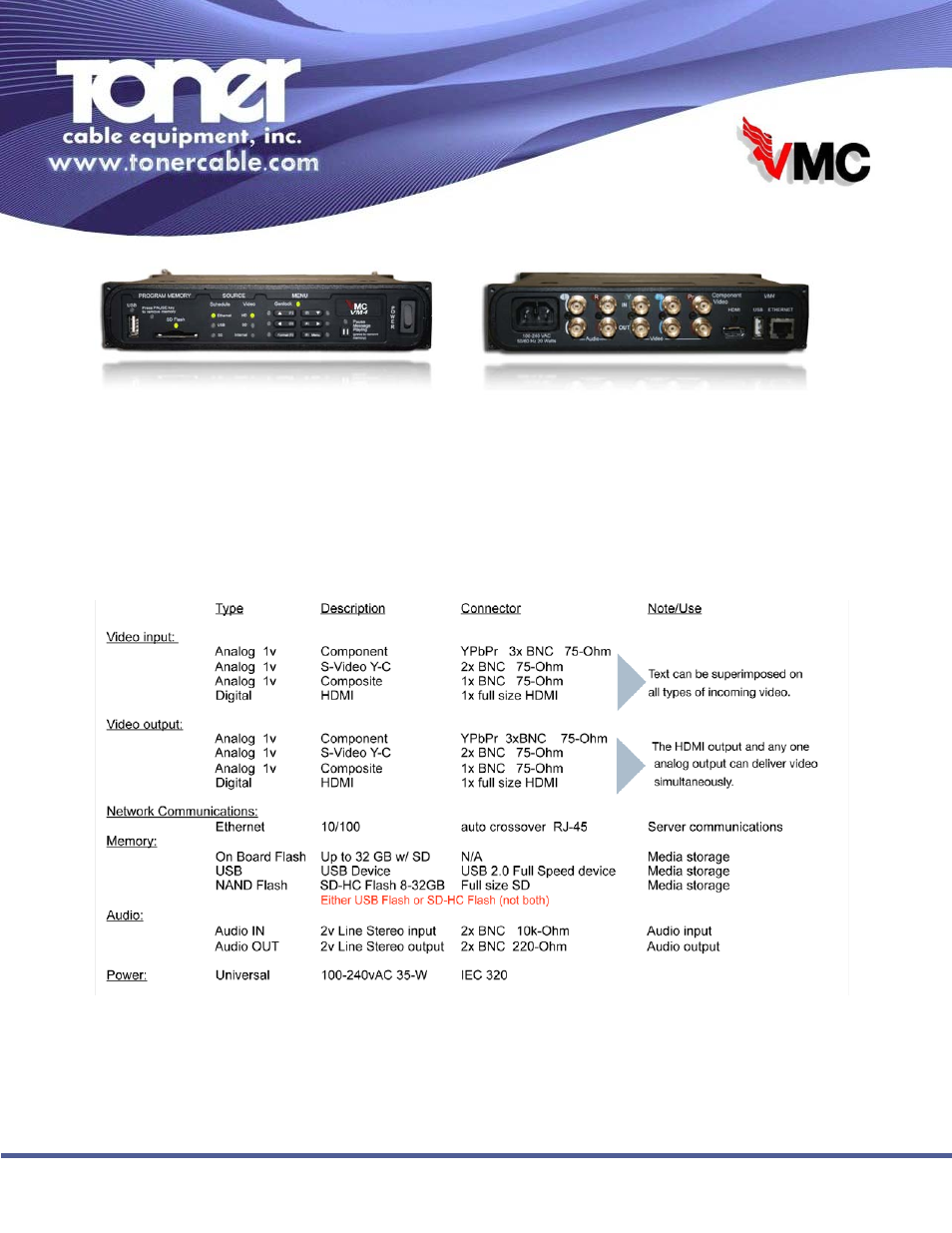

VM4
HD Video Messaging System
The heart of the system is the Video Messenger VM4 HD which allows you to display text messages over your images
or external video to create your own digital signboard. This signboard can be displayed over a number of monitors or
throughout an entire facitlity by modulating its output onto a channel on your television system. Some people refer to
this type of equipment as a character generator. Because the VM4 HD allows you to schedule and route each message
when and where needed, we call it a message generator, hence the name Video Messenger. The VM4 HD is commer-
cial quality and features metal construction, an internal power supply (110v & 220V), professional BNC connectors. The
message creation software is intuitive in nature which makes the unit easy to use by almost any operator.
Specifications
