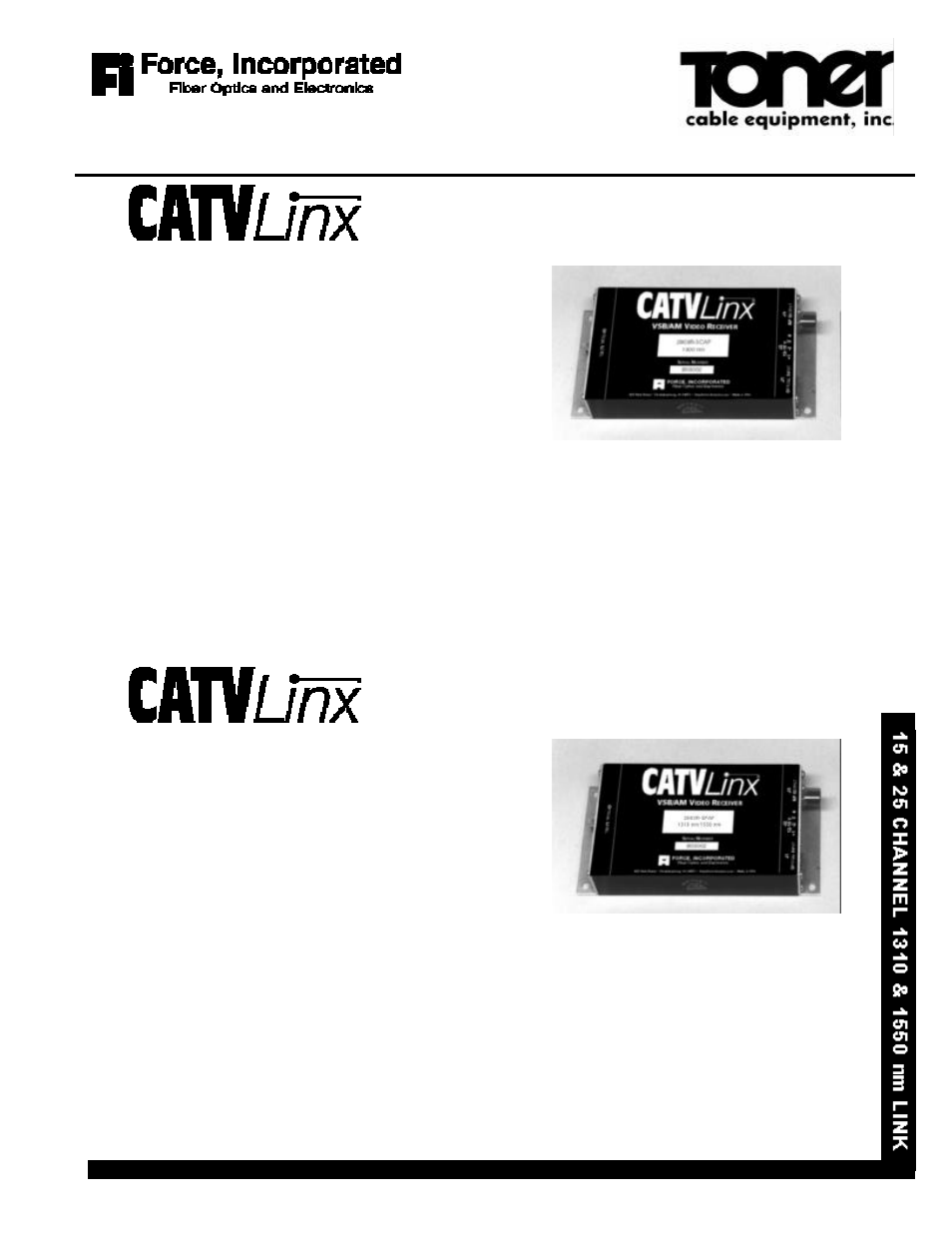

15 Channel & 25 Channel VSB/AM
Fiber Optic Video Link
The CATVLinx® Series Force, Incorporated Model 2803 15 Channel
VSB/AM Video Link provides a high-quality system for transferring up to
fifteen video channels over single-mode optical fiber with complete EMI
immunity. The unit offers exceptional analog bandwidth from 2 MHz to
over 300 MHz allowing transmission of all sub-band channels, low-band
channels, FM channels, and mid-band channels. The lowest high-band
channels may also be accommodated. The best performance will be
achieved when the channel plan is designed to contain all of the chan-
nels within a single octave of bandwidth. In conjunction with a VCR, a
camcorder, or cable television feed, the Model 2803 can transmit TV
channels, along with their sound carriers, over a distance of 20 km or
more at 1310nm, over one single-mode fiber. A basic channel plan for the fifteen channel link is TV channels A through I
and Channels 7 through 12. Other plans are possible. The carrier-to-noise (CNR) ratio is typically 51 dB at low optical loss.
The units also offer exceptional performance at lower channel loadings.
Features
- Up to Fifteen Channels on One SM Fiber
- Low Cost
- Utilizes Inputs from Standard CATV VSB/AM - Wide Bandwidth: 2-300 MHz
Modulators, Processors, etc. - Supports Transmission of Sub-band, Low-band, FM,
- Compatible with Standard Television Industry Mid-band, and High-band Channels
Voltage and Impedance Levels Built-In RF Input Level Indicator in Tx for Easy Setup
- Compact Size, Rugged Package FC/APC - Carrier-to-Noise Ratio (CNR) to 50 dB
Optical Connector Standard - 1310nm Operation to 20 km
The CATVLinx® Series Force, Incorporated Model 2903 25 Channel
VSB/AM Video Link provides a high-quality system for transferring up to
25 video channels over single-mode optical fiber with complete EMI
immunity. The unit offers exceptional analog bandwidth from 2 MHz to
over 350 MHz allowing transmission of all sub-band channels, low-band
channels, FM channels, and mid-band channels. The lowest high-band
channels may also be accommodated. The best performance will be
achieved when the channel plan is designed to contain all of the chan-
nels within a single octave of bandwidth. In conjunction with a VCR, a
camcorder, or cable television feed, the Model 2903 can transmit TV
channels, along with their sound carriers, over a distance of 50 km or
more at 1550 nm, over one single-mode fiber. A basic channel plan for the 25 channel link is TV channels G through I,
Channels 7 through 13, and Channels J through AA. Other plans are possible. The carrier-to-noise (CNR) ratio is typically
51 dB at low optical loss. The units also offer exceptional performance at lower channel loadings.
Features
-
Up to 25 Channels on One SM Fiber - Low Cost
- Wide Bandwidth: 2-350 MHz - Supports Transmission of Sub-band, Low-band,
- Utilizes Inputs from Standard CATV VSB/AM FM, Mid-band, and High-band Channels
Modulators, Processors, etc. - Built-In RF Input Level Indicator in Tx for
- Compatible with Standard Television Industry - Easy Setup
- Voltage and Impedance Levels - Carrier-to-Noise Ratio (CNR) to 51 dB
- FC/APC Optical Connector Standard; SC/APC - 1550 nm Operation to 50 km
Optical Connector Optional - Compact Size, Rugged Package
15 Channel VSB/AM Fiber Optic Link
Model 2803
25 Channel VSB/AM Fiber Optic Link
Model 2903
