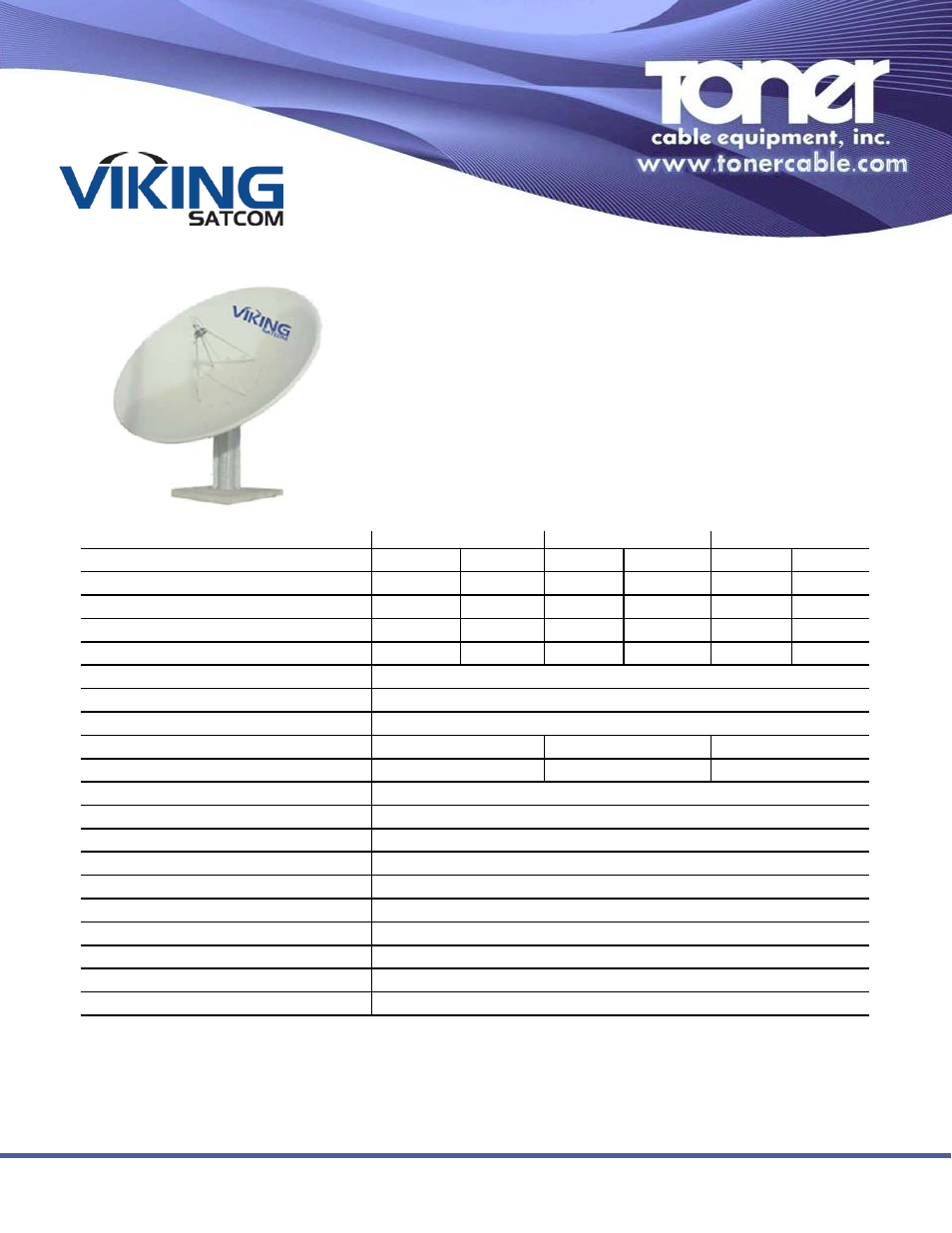

Toner Cable 5.0 Meter Prime Focus Antennas - Manual

4.2, 4.5 & 5.0 Meter Prime Focus Antennas
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Antenna Size 4.2 Meter 4.5 Meter 5.0 Meter
Electrical Specifications C BAND KU-BAND C BAND KU-BAND C BAND KU-BAND
Operating Frequency (GHz)
3.7 – 4.2 10.95 -12.75 3.7 – 4.2 10.95 -12.75 3.7 – 4.2 10.95 -12.75
Midband Gain (± .5dB) 43.5 dBi 53.0 dBi 43.9 dBi 53.3 dBi 44.3 dBi 54.2 dBi
3dB Beamwidth 1.2° .4° 1.1° .35° 1.05° .33°
Feed Interface CPR 229F WR 75 CPR 229F WR 75 CPR 229F WR 75
Mechanical Specifications
Reflector Material Aluminum – 1 Piece
Antenna Optics Prime Focus, Axisymmetric
Mast Pipe Size 5 1/2” OD NA NA
F/D Ratio / Focal Length .34 / 57.6” .33 / 57.6” .3 / 57.6”
Mount Options
Az El Mount Fixed Az/El Adjustment
Dual Axis Mount (motorized or fixed) 200° of Azimuth Travel, 0 – 90° Elevation Travel
Polar Mount 110° of Travel, Locking Bar Option
Horizon to Horizon 160° of Travel, Motorized Declination Available
Environmental Specifications
Wind Load
Survival 125 mph (201 km/h)
Operational @ 4 GHz 65 mph (105 km/h)
Operational @ 12 GHz 55 mph (88 km/h)
• Aluminum 1 Piece Reflector
• High Efficiency Parabolic Reflector
• C or Ku Band Applications
• Motorized or Fixed Mounting
Options
• MultiFeed and De-icing Options
Specifications Subject To Change Without Notice Rev 05-12 ©Toner Cable Equipment, Inc.
