Toner Cable TLA-20S Line Amplifier User Manual
Distribution & satellite accessories
Distribution & Satellite Accessories
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Specifications Subject To Change Without Notice
Rev
06-13
© Toner Cable Equipment, Inc.

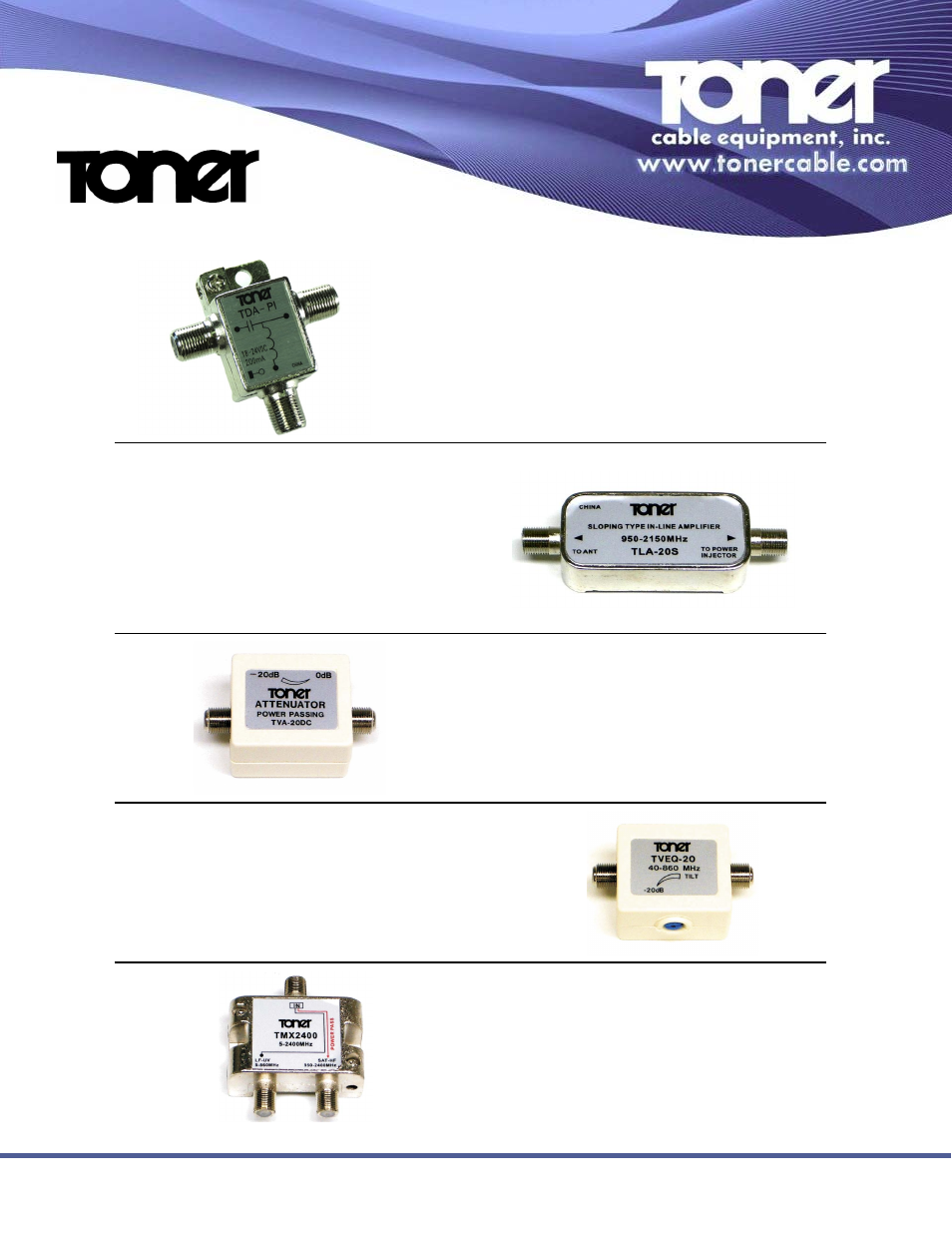

TDA-PI
Coaxial Power Inserter
! Can be used for powering model
! TDA-115R Drop Amps
! 5-1000 MHz Bandwidth
! Insertion Loss <1.0 dB
! 200 mA dc maximum
! F Connectors
TLA-20S
Line Amplifier
! 950-2150 MHz
! 20 dB Gain
! 8 dB Slope
! 13-18 VDC Pass Through 500 mA
! Power 40 mA
! 6 dB Noise Figure
TVA-20 DC
Variable Attenuator
! 5-2150 MHz
! Power Passing 500 mA
! Zinc Die Cast Housing
! Machined F Connectors
! 0-20 dB Attenuation
TMX2400
TV to Satellite/DBS Multiplexer
! 40-860 MHz
! 950-2400 MHz Satellite Port
! 2 dB Insertion Loss Maximum
! 30 dB Isolation
! 500 mA 18 VDC Pass Satellite Port
TVEQ-20
Variable Equalizer
! 40-860 MHz
! 2-20 dB Equalization
! Insertion Loss <2 dB
! Return Loss >14 dB
