QTM
QAM Transcoder Module 1x QPSK/8PSK 1x QAM
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]

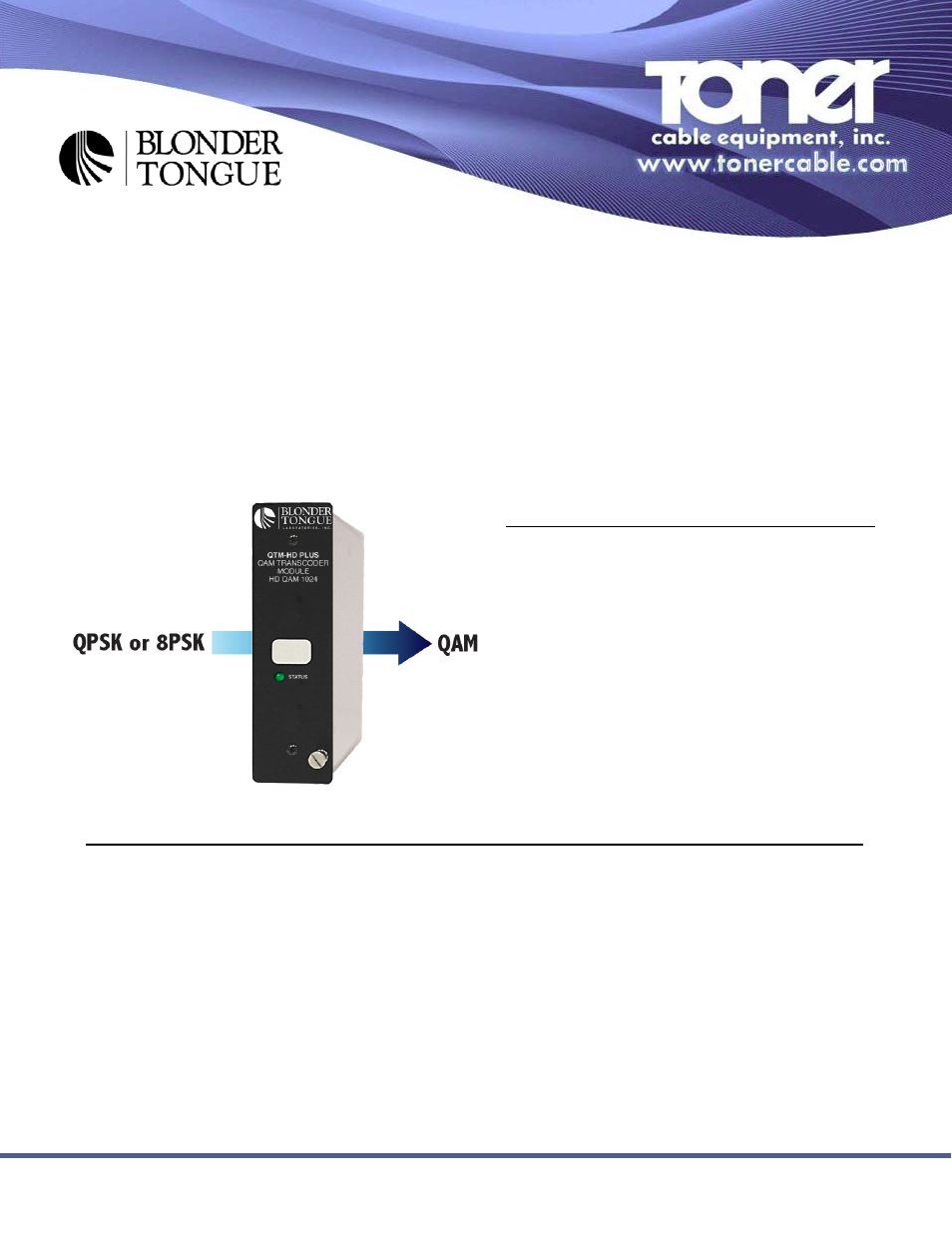

QTM (QAM Transcoder Module) accepts one input in QPSK or 8PSK format, and delivers one output in
QAM format in the 54-864 MHz range.
The four available models are:
1. QTM-II - accepts one input in QPSK format, and delivers one output in QAM 64 mode.
2. QTM-HD - accepts one input in QPSK or 8PSK format, and delivers on output in QAM 256 mode.
3. QTM-HD PLUS - the same as QTM-HD, but capable of QAM 512/1024 modes.
4. QTM-HD NPU - the same as QTM-HD, but with a “Null Packet” feature that allows adding/removing
null packets to/from the input stream.
Features
• Supports the 8PSK modulation typically used for
High-Definition TV programming
• Supports ITU-T J.83 Annex A and Annex B standards
(QAM 16, 32, 64, 128, 256, 512, and 1024)
• Compact design allows for deployment of 8
transcoders, and power & control module, in 3RU
rack space
• Optional Headend Web Server allows for remote
monitoring and control of each transcoder
• Optional Standby Power Supply allows for uninter-
rupted service in the unlikely event of a primary
power supply failure
Ordering Information
Model Stock # Description
QTM-II 6231A QAM Transcoder Module; QPSK input, QAM 64 output
QTM-HD 6241 QAM Transcoder Module; QPSK/8PSK input, QAM 256 output
QTM-HD PLUS 6242 QAM Transcoder Module; QPSK/8PSK input, QAM 512/1024 output
QTM-HD NPU 6278 QAM Transcoder Module; QPSK/8PSK input, QAM 256 output; Null Packet
add/remove capability
QTRC 6233 Rack Chassis; 3RU (holds up to 8 QTM modules)
QTPCM PLUS 6232B QT Power and Control Module (one per chassis)
Optional Equipment
QT-HWS-II 2728 QTM Headend Web Server for remote monitoring and control
QTSPS 6239A QT Stand-by Power Supply with integrated fan tray (supports 2 fully-loaded rack chassis)
QTHF 6235 QT 1RU rack-mounted fan tray
QTRFC 6234 1 8-port QAM combiner (mounts on the top of the Rack Chassis 6233)
QTRFS 6234 2 8-port L-band Splitter (mounts underneath the Rack Chassis 6233)
QTRFS-2 6225 2 2 x 4-port L-band Splitter (mounts underneath the Rack Chassis 6233)
