OTEB-CO-B
Booster EDFA
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]

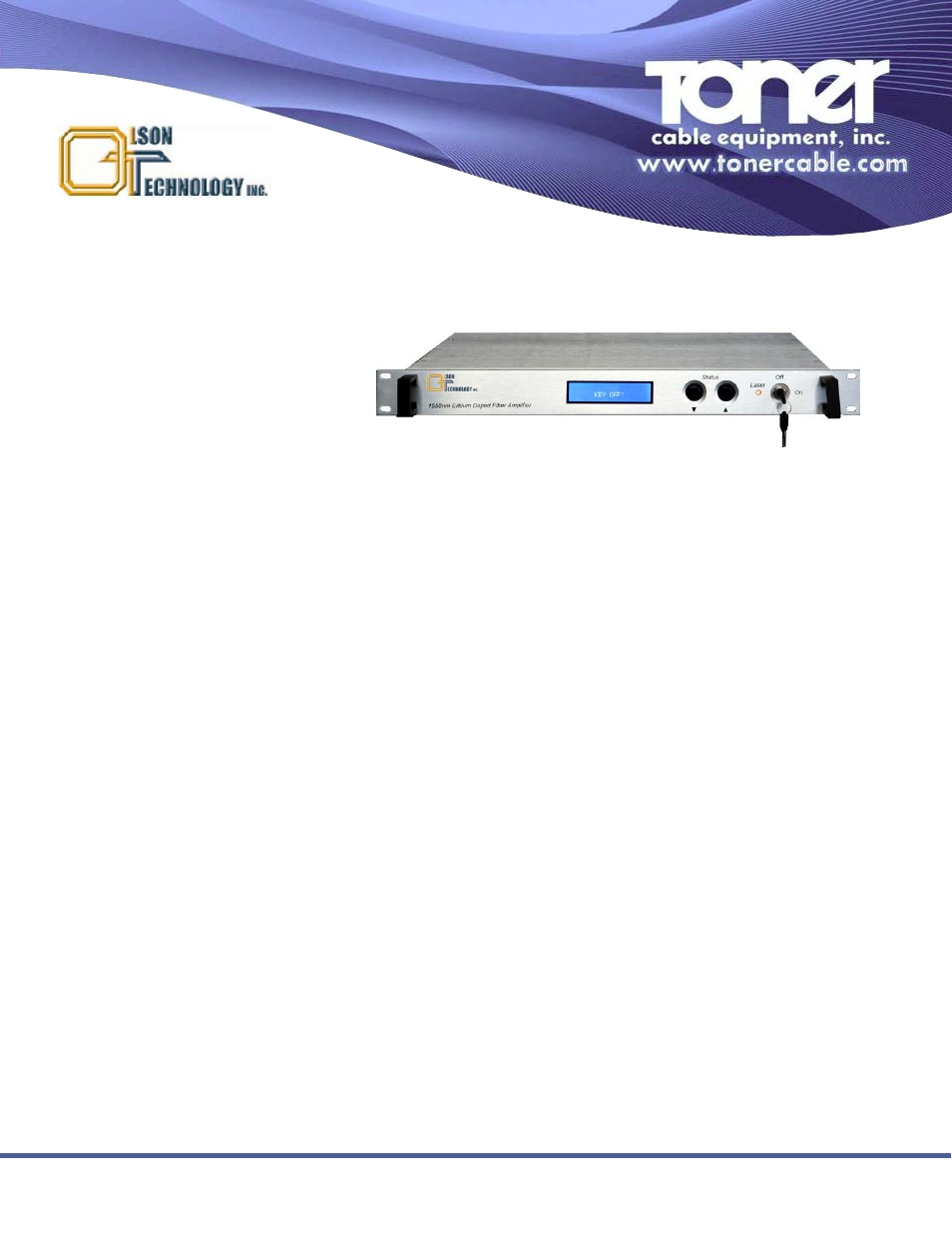

The Olson Technology Model OTEB-CO-B Series EDFA incorporates a reli-
able optical output drive circuit, and laser TEC to provide a highly reliable
Erbium-doped optical amplifier. Built-in microprocessor software allows the
user to monitor a number of system parameters, including: laser status, sys-
tems alarm, network management, TEC circuit operation, etc. If a critical
problem is detected, the power supply for the laser will shut down automati-
cally, a red LED indicator will light, and the front panel display will show the
nature of the problem. Optional SNMP network management is available
through the RS-232 interface. The EDFA is housed in a 1RU 19" rack mount
configuration with an integrated 90-254 Volts AC power supply.
This rugged, low-profile, high-efficiency EDFA design utilizes highly reliable
pump lasers for maximum reliability. The unit accepts a wide optical input
range (-10dBm to +10dBm) and provides a total composite/saturated output
power from +13dBm to +26dBm, depending on the specific model. The
LaserLite Model OTEB-CO-B Series erbium doped fiber amplifier is the per-
fect companion to the Olson LaserPlus and LaserLite families of 1550nm
EM and DM transmitters and MetroNode and PremiseNode families of
receiver/nodes. It is also designed to operate seamlessly with optical trans-
mitters, receivers and nodes from most leading manufacturers.
Specifically for distribution of
1550nm CATV/video/data in
HFC, PON/AON or FTTH sys-
tems.
• Typically used in a launch or mid-
span application. Optimized for use
with Olson fiber-based DCM.
• Low optical input level requirements
with excellent low noise perfor-
mance at high output
• 90-254 Volts AC power supply. DC
option not available.
• Optional SNMP monitoring.
• 1540nm to 1560nm wavelength
range
• LED indicators and LCD display for
easy setup and maintenance.
• Single, dual and quad optical output
options
• SC/APC optical connector standard.
