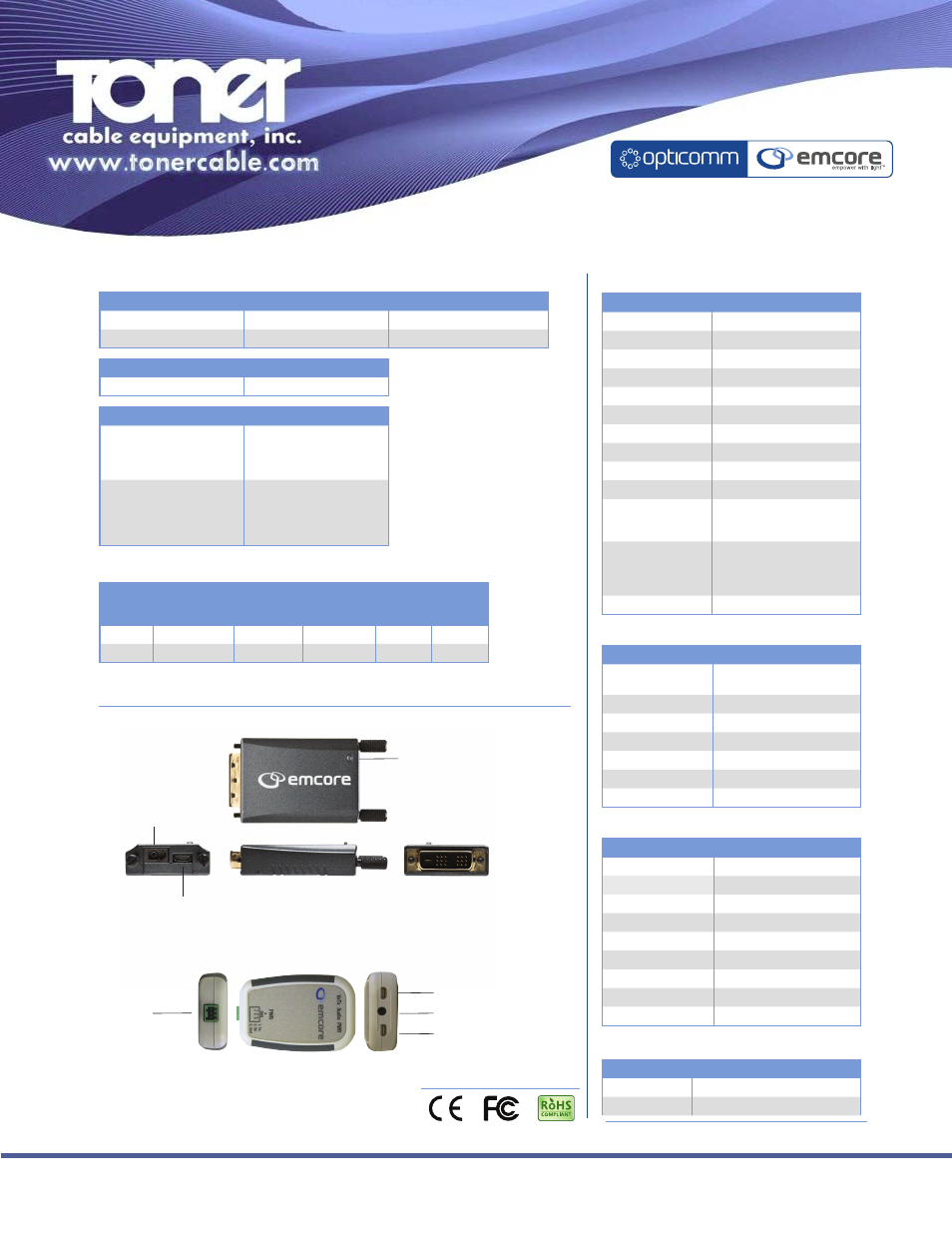

VX-1DVI-SD
DVI Video, RS-232, Stereo Audio Fiber Optic Extender
LC fiber connection
Micro HDMI power / adaptor connection
Power/signal indicator
DVI UNIT
Serial data
connection Stereo audio
connection
Micro HDMI
extender connection
RS232 WITH AUDIO ADAPTER UNIT
Micro HDMI
power connection
Video
Specifications Values
Standards DVI standard resolutions up to
WUXGA
Resolutions (see chart on front side)
Connector (DVI unit) Single Link DVI-D (18 pin male)
Connector (Adapter unit) Micro HDMI
HDCP Compliance v1.2
EDID Plug & Play
Color Depth 24-bit
DVI Unit Transmitter DVI Unit Receiver DVI Unit Transmitter/Receiver Set
VX-1DVI-SD/XMT- XX -LC VX-1DVI-SD/RCV- XX -LC VX-1DVI-SD/LINK- XX -LC
VX-1DVI-SD/XMT- XX -LC-UN VX-1DVI-SD/RCV- XX -LC-UN VX-1DVI-SD/LINK- XX -LC-UN
Models
Connection Diagram
Compliance (pending)
General
Specifications Values
Dimensions (DVI unit) 1.58” x 2.26” x 0.57”
Dimensions (Adapter unit) 1.97” x 2.96” x 0.99”
Weight (DVI unit) 3.12 oz.
Weight (Adapter unit) 1.16 oz.
Operating Temperature 0˚C to +50˚C
Storage Temperature 20°C to 85°C
Humidity 10 to 95% (non-condensing)
Input Voltage 1.8V DC
Power Consumption 1.0W Max.
Power Connector Micro HDMI
Power Supply Not required if the video source or
the display can provide +5V 500ma
on DVI pin 14
Monitoring LED on - Tx & Rx
Rapid flash - Boot up
Gradual on/off - Fiber disconnect
Steady on - Link established
Warranty 1 Year
„ When ordering replace “ XX” with one
of the Fiber Type Options
„ UN = With universal power supply
„ Chromatic dispersion as well as other
losses should also be taken into account
„ Stated distances are the maximum
range, shorter distance may require
attenuation
„ Standard connection type is UPC
„ Multimode TX must be used with
multimode RX and singlemode TX must
be used with singlemode RX
Adapter Unit Transmitter Adapter Unit Receiver
VX-1DVI-SD/XMT-RSA VX-1DVI-SD/RCV-RSA
Included For DVI Unit Included For Adapter Unit
PC-USB-MHDMI
Power Cord for USB to Micro HDMI
[P/N Y5538-508]
DC-MHDMI-MHDMI
Data Cable for Micro HDMI to
Micro HDMI [P/N Y5538-509]
PS-501 (with -UN model)
Universal 100-240VAC power
supply and EU, USA, UK, AUS kit
[P/N G0220-160]
Optical Specifications
Fiber Type
“XX”
Wavelength
(nm)
Data Rate
Optical Budget
(db)
Distance
(km)
Connector
MM 850/1310/1550 6.25 Gbps <12 0.3 LC
SM 1490/1550/1310 6.25 Gbps <12 10 LC
Specifications Values
Serial Data 1 Channel RS-232
Connector Type Terminal block (3 pin)
Data
Audio
Specifications Values
Inputs/Outputs Unbalanced audio 2 channel (1L/1R)
Channels 24-Bit Dual Channel
Impedance 47k Ohm Unbalanced
Audio Levels 700 mVrms (maximum)
Frequency Response 20 Hz to 20 KHz (±0.1 dB)
Signal-to-Noise Ratio > 80 dB @ 1KHz
Total Harmonic Distortion < 0.1% @ 1KHz
Crosstalk >70dB @ 10KHz
Connector Type 3.5mm Stereo Headphone Jack
