SOFTWARE OPTIONS
DVB Conditional Access Scrambling
(EQ8096/SWO/DVBCA, FAZ 101 0127/11)
EQ8096 protects against broadcast piracy using built-in DVB
Common Scrambling Algorithm
• Scrambling enabled on a per-service basis
• Capable of scrambling every service
• Standard Simulcrypt/OpenCAS interfaces
M-CMTS Functionality
(EQ8096/SWO/MCMTS, FAZ 101 0127/12)
• Enables data applications and channel bonding using EQ8096
Extended Frequency Range
(EQ8096/SWO/1GHz, FAZ 101 0127/10)
• Extends center frequency range for EQ8096/HWO/12QAM
EQ8096
EDGE QAM
HARDWARE OPTIONS
QAM Modulator Assembly
(EQ8096/HWO/12QAM, FAZ 101 0127/5)
• Supports up to 12QAM channels with center frequency range
of 57 MHz to 867 MHz
QAM Modulator Assembly
(EQ8096/HWO/12QAM/1GHZ, FAZ 101 0127/6)
• Supports up to 12QAM channels with center frequency range
of 57 MHz to 999 MHz
DTI Interface (EQ8096/HWO/DTI, FAZ 101 0127/9)
• Provides 1+1 redundant DOCSIS Timing Interface
Dual Power Supply
(EQ8096/HWO/DPS, EQ8096/HWO/DPS/48V or
FAZ 101 0127/7, FAZ 101 0127/8)
• Redundant power supply option for AC or DC base variant
Inputs
Eight Gigabit Ethernet Interfaces for data
available as either RJ45 or SFP† (four main,
four redundant)
Input Capability
Capable of processing four fully-loaded
Gigabit Ethernet links
Bit-rates from 1 kbps to HD
Stream encapsulation in UDP (RFC 768)
Up to seven transport stream packets per IP
datagram (auto-detected)
Removes up to 120 ms input jitter
Support for unicast and multicast flows
(IGMPv3)
Separate and redundant CA and Control Ports
Processing
De-jittering of each incoming transport stream
Dynamically tracks incoming services
Automatic PID remapping
PSI extraction and SI insertion
MPEG-2 multi-program transport stream
mapping to output QAM channel
Outputs
QAM
75Ω F-type connector
ITU-T J.83 Annex A, B and C
64, 256QAM constellations
Symbol rate up to 7.0 Msym/s
Six MHz or eight MHz bandwidth
Center Frequency range 57 MHz to 867 MHz
(57 MHz to 999 MHz optional) adjustable in
10 kHz steps
Frequency accuracy better than ±500 Hz
Maximum RF output power level +60/+56/
+54/+52 dBmV for 1/2/3/4 QAMs respectively
adjustable down by up to 8 dBmV in 0.1 dB
steps
RF output power accuracy ±2.0 dB
Output return loss >14 dB
BER <10e-10
Each RF output provides up to four adjacent
QAM channels (any of four channels may be
muted)
ASI
Allows any QAM channel to be mapped to
ASI port
Control
Dedicated 10/100 Ethernet control port (RJ45)
SNMP and HTTP control
RPC
RS-232 port for basic configuration
Complete configuration possible with a single
file download to ease large deployments
Physical and Power
Dimensions (W x D x H)
483 x 543 x 89 mm (19” x 21.5” x 2RU)
Approximate Weight (fully configured)
15 kg (33 lbs)
Power Input
100 VAC to 240 VAC wide-ranging or
-48 VDC
Power Consumption
350 Watt typical
Operational Temperature
0°C to +50°C (32°F to 122°F) ambient with
free air flow
Relative Humidity
0% to 90% (Non-condensing)
SPECIFICATIONS

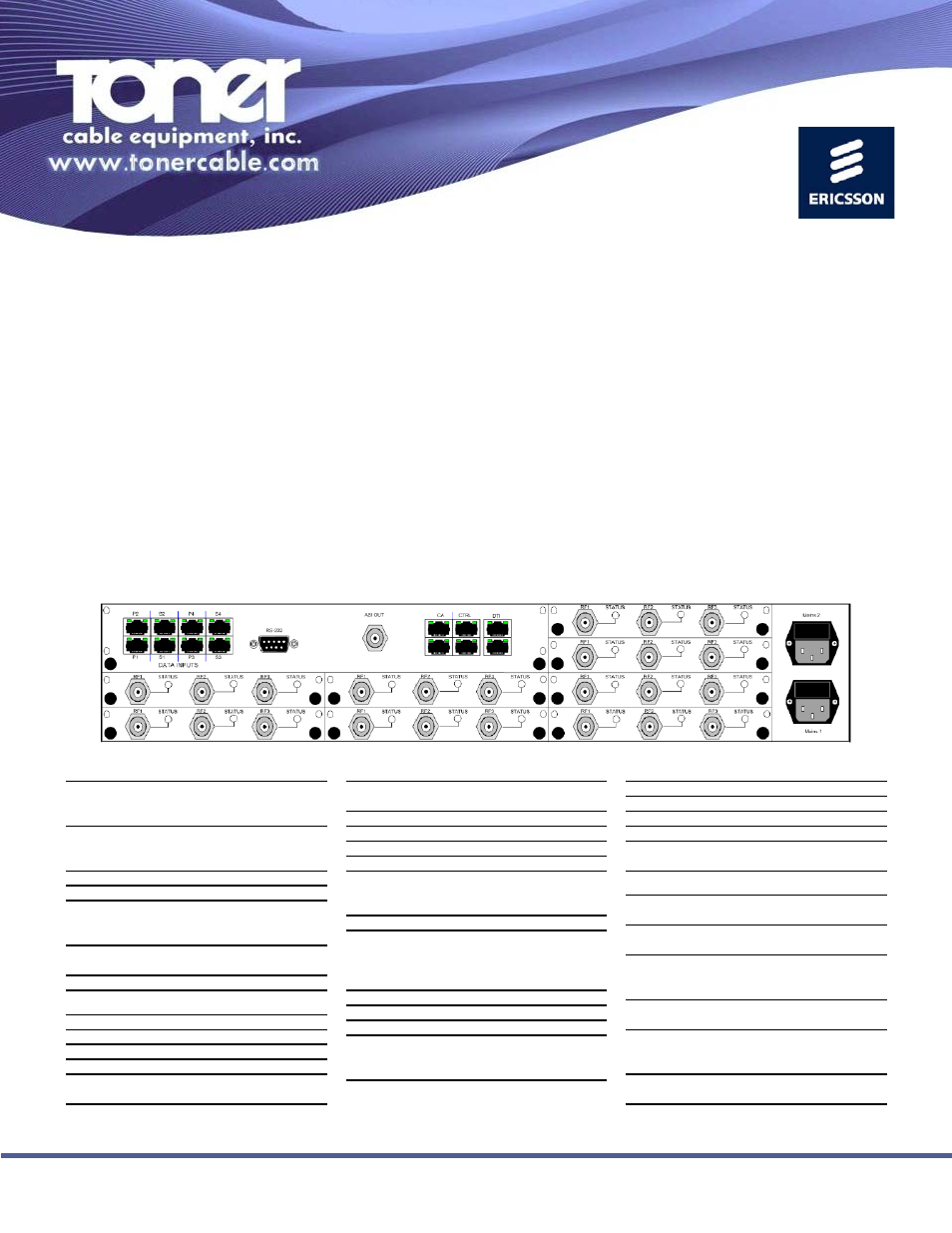

SAMPLE CONFIGURATION
