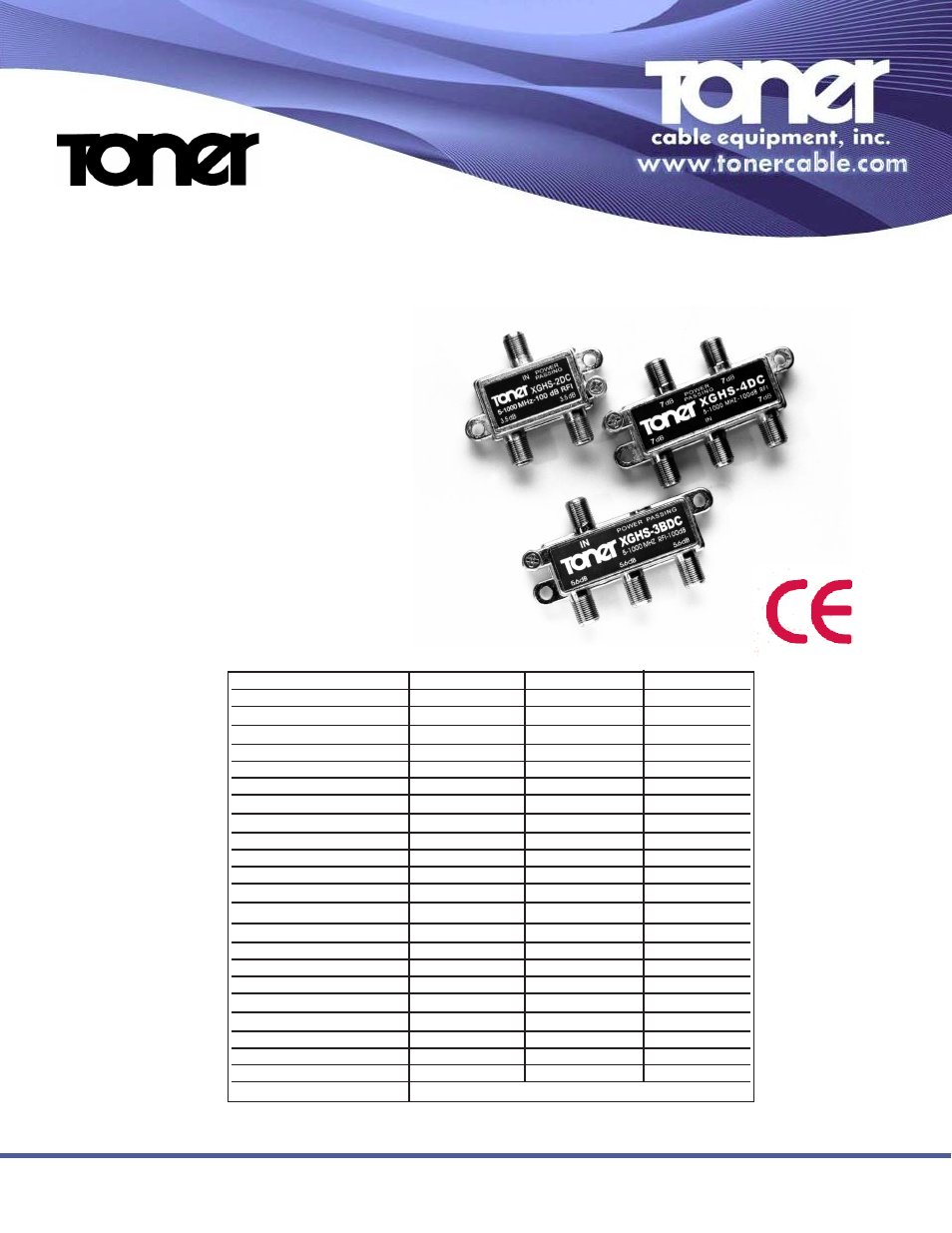

XGHS-*DC Series
1 GHz Power Passing Splitters
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Specifications Subject To Change Without Notice Rev 06-13 © Toner Cable Equipment, Inc.
XGHS-2DC XGHS-3BDC XGHS-4DC
Bandwidth 5 MHz-1 GHz 5 MHz-1 GHz 5 MHz-1 GHz
INSERTION LOSS (Max)
5-15 MHz 3.6 5.5 6.8
15-40 MHz 3.6 5.5 6.8
40-550 MHz 3.7 6.0 7.2
550-1000 MHz 4.1 6.5 8.2
ISOLATION (Min)
5-15 MHz 30 30 30
15-40 MHz 31 35 35
40-550 MHz 30 27 30
550-1000 MHz 30 27 30
RETURN LOSS (Min)
INPUT
5-15 MHz 25 25 24
15-40 MHz 25 25 24
40-550 MHz 22 22 22
550-1000 MHz 22 22 22
OUTPUT
5-15 MHz 30 30 25
15-40 MHz 30 30 30
40-550 MHz 22 22 22
550-1000 MHz 22 22 22
INTERMOD DISTORTION -60 dBmV
Digital Drop Splitters
Features
x Digital Ready
x Low Intermod
x Meets or Exceeds SCTE
x Greater than 120 dB RFI
x PCB for Consistent Performance
x Solder Back Design
x Round F Connector, Center
Conductor Contact
x DC Power Passing
