Toner Cable NEXUS Video Server_System Controller User Manual
Page 2
©Toner Cable Equipment, Inc.
Specifications Subject To Change Without Notice.
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
NEXUS V
ideo Ser
ver/System Contr
oller
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
NEXUS SPECIFICATIONS
•
Dimensions—Two standard 19” rack units with overall dimensions of 3.50”H x 19.00”W x 15.00”D
•
Weight—18 lbs.
•
Network—Eight-position/eight-conductor RJ-45 modular jack, 10/100/1000BASE-T Ethernet, TCP/IP,
user-configurable IP address, subnet, and gateway
•
Display—2 x 24 character vacuum fluorescent display
•
Keyboard—Keypad with four push buttons, password protected front panel status and configuration
•
Internal Clock—Battery-backed time and date, temperature compensated crystal oscillator for high
accuracy
•
Video Standard—NTSC, standard definition, 4x3 aspect ratio
•
Video Encoding—MPEG-2, full D1 and half D1 resolution, 1.5-10Mb/s variable bit rate encoding, 3-
8Mb/s constant bit rate encoding
•

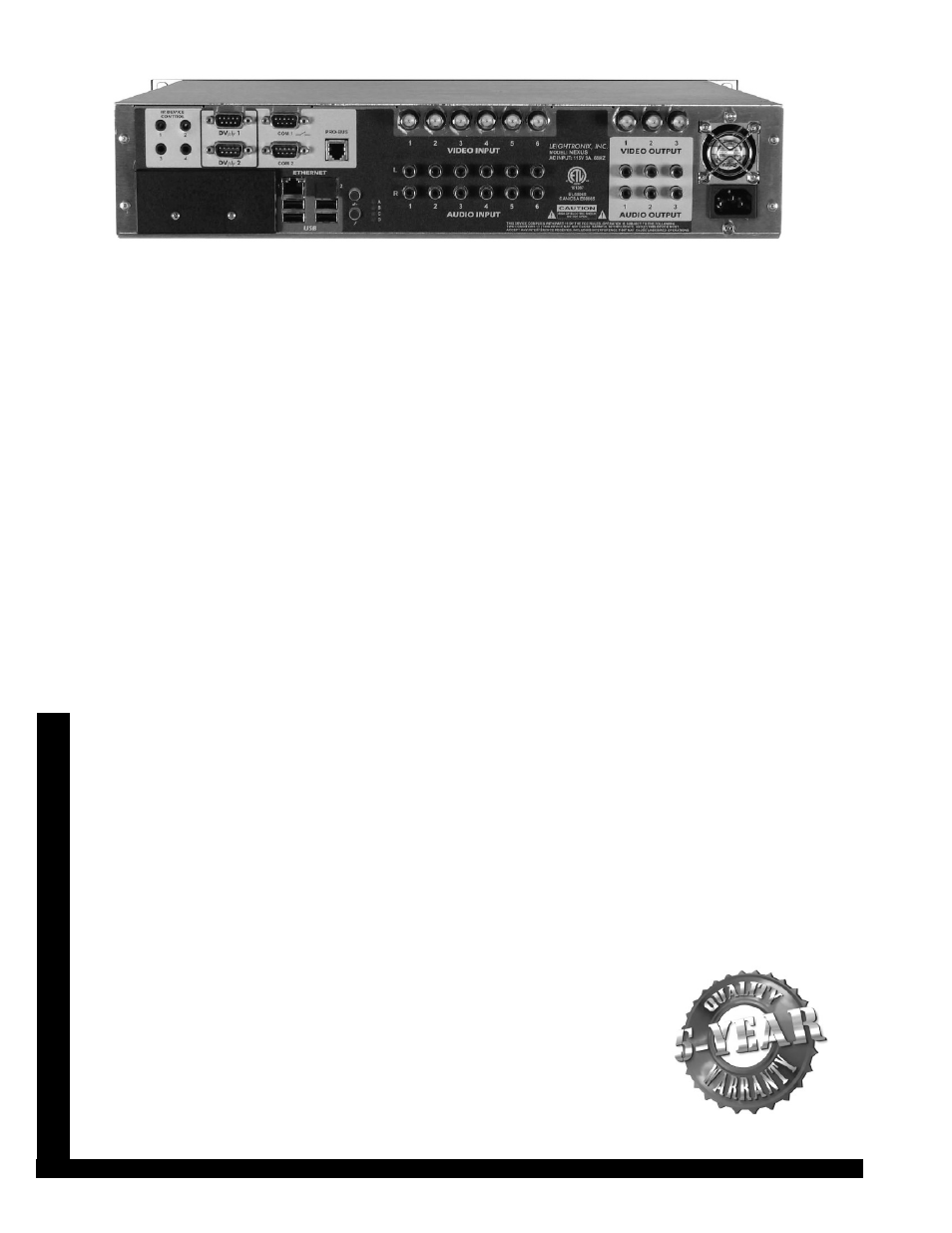

Video I/O—6 BNC video inputs, 3 BNC video outputs, NTSC composite video 1V P-P, active switching,
unity gain
•
Audio Encoding—MPEG-1 layer II, 44.1K and 48K sampling rates, 192Kb/s and 224Kb/s audio bit
rates
•
Audio I/O—6 dual RCA audio inputs, 3 dual RCA audio outputs, -10dBV unbalanced line level, unity
gain
•
Video/Audio Recording Capacity—Maximum individual MPEG program length 23 hours, 59 minutes
•
Digital File Storage—External hard drive, 4 USB 2.0 ports, 1 terabyte maximum total storage
•
Infrared Control Ports—4 mini-jack device control ports
•
PRO-BUS—Six-position/six-conductor modular jack, LEIGHTRONIX proprietary interface control bus
•
DVply—2 DB9M RS-232 device control ports
•
Power Input—Three-position IEC power input with removable power cord
•
Power Supply—Internal, accepts 90 to 264VAC @ 47 to 63Hz
•
Product Safety—Certification by ETL Semko for U.S. Standard(s) for Audio, Video & Similar Electronic
Apparatus
•
(UL-60065) and Canadian Standard(s) for Safety Requirements for Audio,
Video & Similar Electronic Apparatus
(CAN/CSA-C22.2 No. 60065)
•
Compliance—FCC Part 15
•
Warranty—Five Years, Parts and Labor
