Toner Cable PMX41 Four ASI Input MPEG Multiplexer - Manual

Features
• Accepts up to 4 MPEG-2 or DVB trans-
port streams to be combined on a sin-
gle ASI output
• Inputs may be single or multiple pro-
gram streams up to 100 Mbps each
from common MPEG sources such as
encoders, other multiplexers, demodu-
lators, receivers and servers, in DVB-
ASI format
• Output is single or multiple program
transport stream of up to 100 mbps in
DVB-ASI format suitable for modulation
or other MPEG transport and process-
ing equipment
• Passes DVB information and assembles SDT, NIT, EIT tables when in incoming streams’ tables
• Simple to use front panel menus allows scan of inputs including data rates of the incoming material to avoid over-
subscribing the output stream
• User selects the programs, video, audio content from each input to be passed on to the output
• Constant output rate selectable from 5 mbps to 100 Mbps
• Ethernet remote control with provided utility to augment front panel setup
Specifications Subject To Change Without Notice Rev 10-11 ©Toner Cable Equipment, Inc.
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
INPUTS
Connector 75Ω BNC x 4
Format DVB-ASI (EN50083-9)
(single or multiple programs TS)
Rate up to 100 Mbps
Packet Size 188/208 bytes (auto sense)
OUTPUTS
Connector 75Ω BNC x 1
Format DVB-ASI (EN50083-9)
(single or multiple programs TS)
Rate 5 to 100 Mbps
Constant rate, User selected
Rate Resolution 1 Mbps step
Packet Size 188 bytes
TRANSPORT STREAM PROCESSING
Input Discovery Scan determines content and rate
Output Configuration User selects programs,
content per input
PID Assignment/Remapping Auto
PSI/SI Filtering/Regeneration Per EN 300468
(Auto PMT, SIT, TDT, EIT tables)
NIT Insertion possible per PC utility
REMOTE CONFIGURATION
Connector RJ-45
Format 10/100Base-T
Ethernet
Protocol Supplied Utility
Function Load pre-defined/saved configurations
Configure/insert NIT table
GENERAL
Voltage 90-260 VAC, 50/60 Hz.
Power 25 W
Size 1 RU: 19 (W) x 11.2 (D) x 1.75 (H) (in.)
Weight 6.5 lb.
Temperature Range 0-50°C
ORDERING INFORMATION
PMX41 Four ASI Input MPEG Multiplexer
SPECIFICATIONS
PMX41
Four ASI Input MPEG Multiplexer

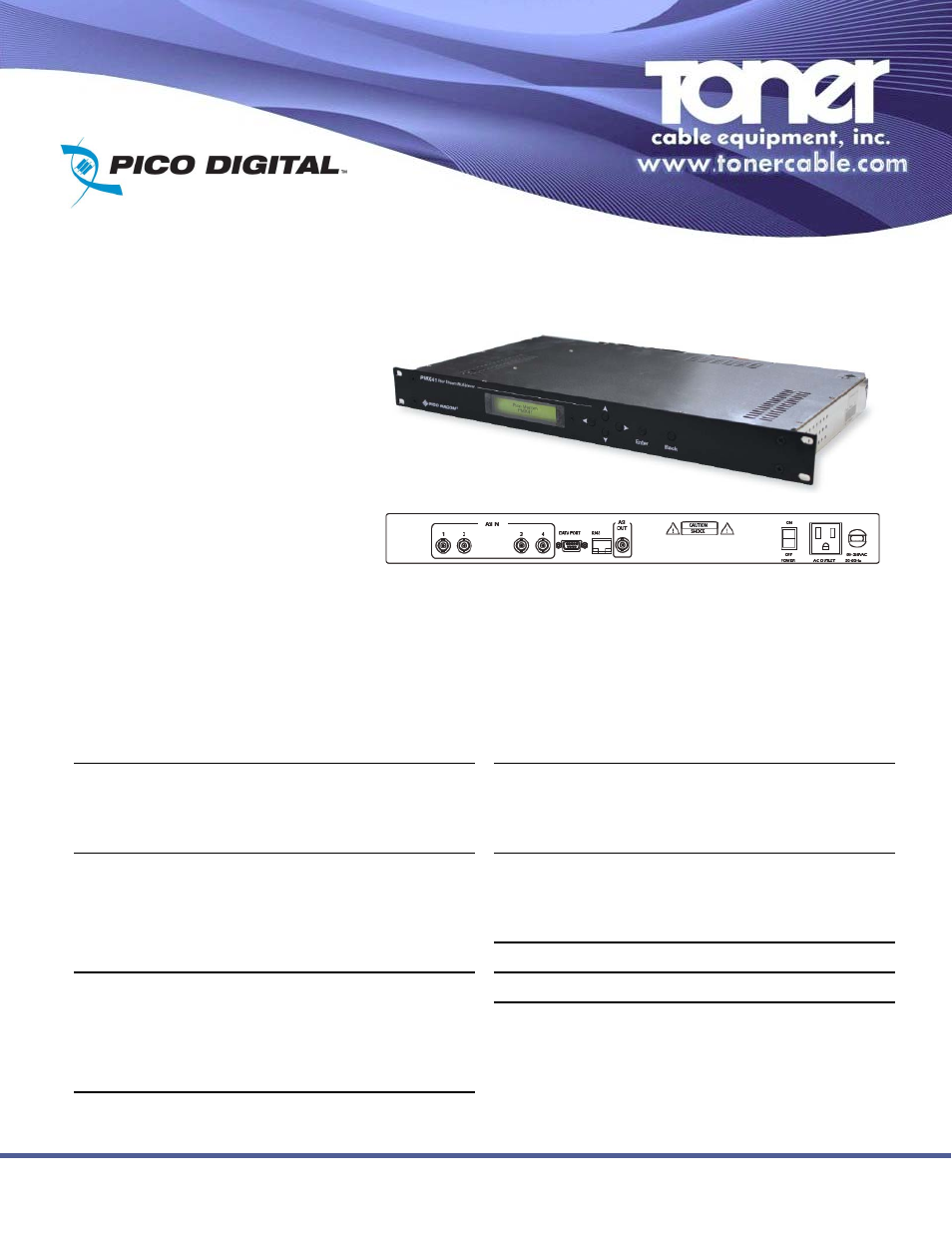

Rear View of PMX41
