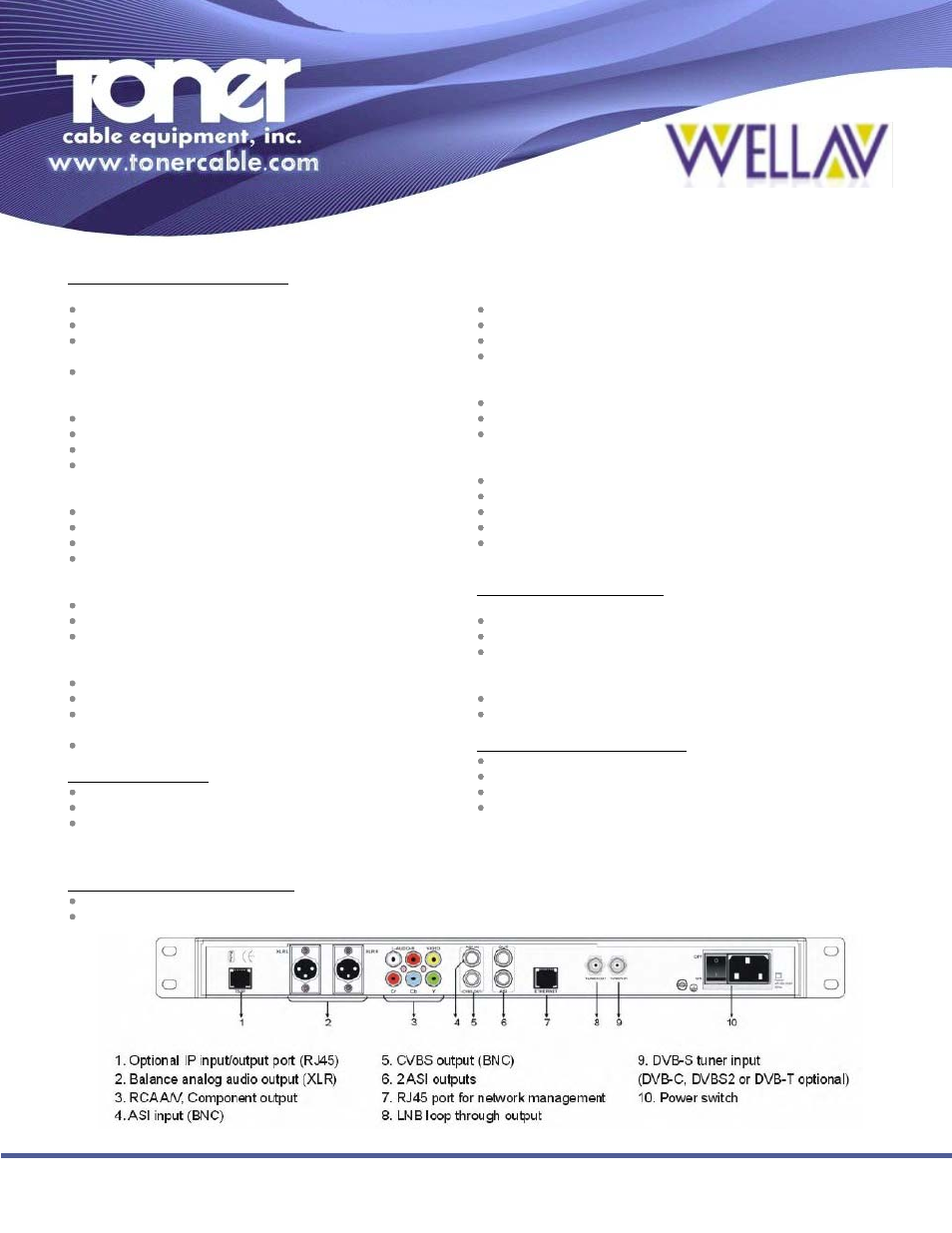

UMH 150
Integrated Receiver Decoder
TS STREAM INPUT INTERFACES
DVB-S/S2 Inputs
Constellation QPSK, 8PSK
Symbol Rate 1-45 Mbps
FEC All rations compliant
with standard
Signal Level -65~-25 dBm
DVB-T Inputs
Constellation COFDM, 2K & 8K FTT
Symbol Rate 0.45-7 Mbps
Frequency 45-858 MHz
Signal Level -90~-20 dBuV
DVB-C Inputs
Constellation QAM (16/32/64/128/256)
Symbol Rate 3-7 Mbps
Frequency 50-862 MHz
Signal Level 32~105 dBuV
DVB-ASI Inputs
Connector BNC, 75 ohm
Packet Length 188 & 204 byte packets
TS Max Bit Rate 72 Mbps
TS/IP Inputs (optional)
Connector 100/1000 Base-T, RJ-45
Error Correction Pro-MPEG FEC
Encapsulation Protocol MPEG-2 TS over
UDP & RTP
Broadcasting Type Unicast and Multicast
CONDITION ACCESS
Interface Two independent CI slots
CA Methods Multicrypt, Simulcrypt
CAS Conax, Irdeto, Viacess,
Nagravision, CTI, DV-crypt,
etc.
CONFIGURATION & MONITORING
Front panel keyboard and LCD display
Network Management Software (SNMP support)
Video/Audio Outputs
2xCVBS outputs (1 BNC, 1 RCA)
1xComponent output (YPbPr)
1xBalance analog audio output
1xASI outputs
DVB-ASI Outputs (2)
Connector BNC, 75 ohm
Packet Length 188 byte packets
TS Max Bit Rate 72 Mbps
TS/IP Outputs (optional)
Connector 100/1000 Base-T, RJ-45
Error Correction Pro-MPEG FEC
# of Channels 8
Broadcasting Type Unicast and Multicast
Supporting Protocol: DHCP, TCP/IP, ARP,
IGMP
VIDEO & AUDIO DECODING
Video Decoding
Decoding Formats: MPEG-2 MP@ ML
Video Formats: 720 x 576i/720 x 480i
Analog Output PAL/NTSC/SECAM
Audio Decoding
2 stereo pairs audio decoding
MPEG-1 and MPEG-2 Layer-I, II
PHYSICAL & ENVIRONMENTAL
Power: AC 90~250V, 50/60Hz, 30W (max)
Size: 1RU rack mount chassis
Dimension: 44mm x 484mm x 274mm
Weight: 3.7 kg
