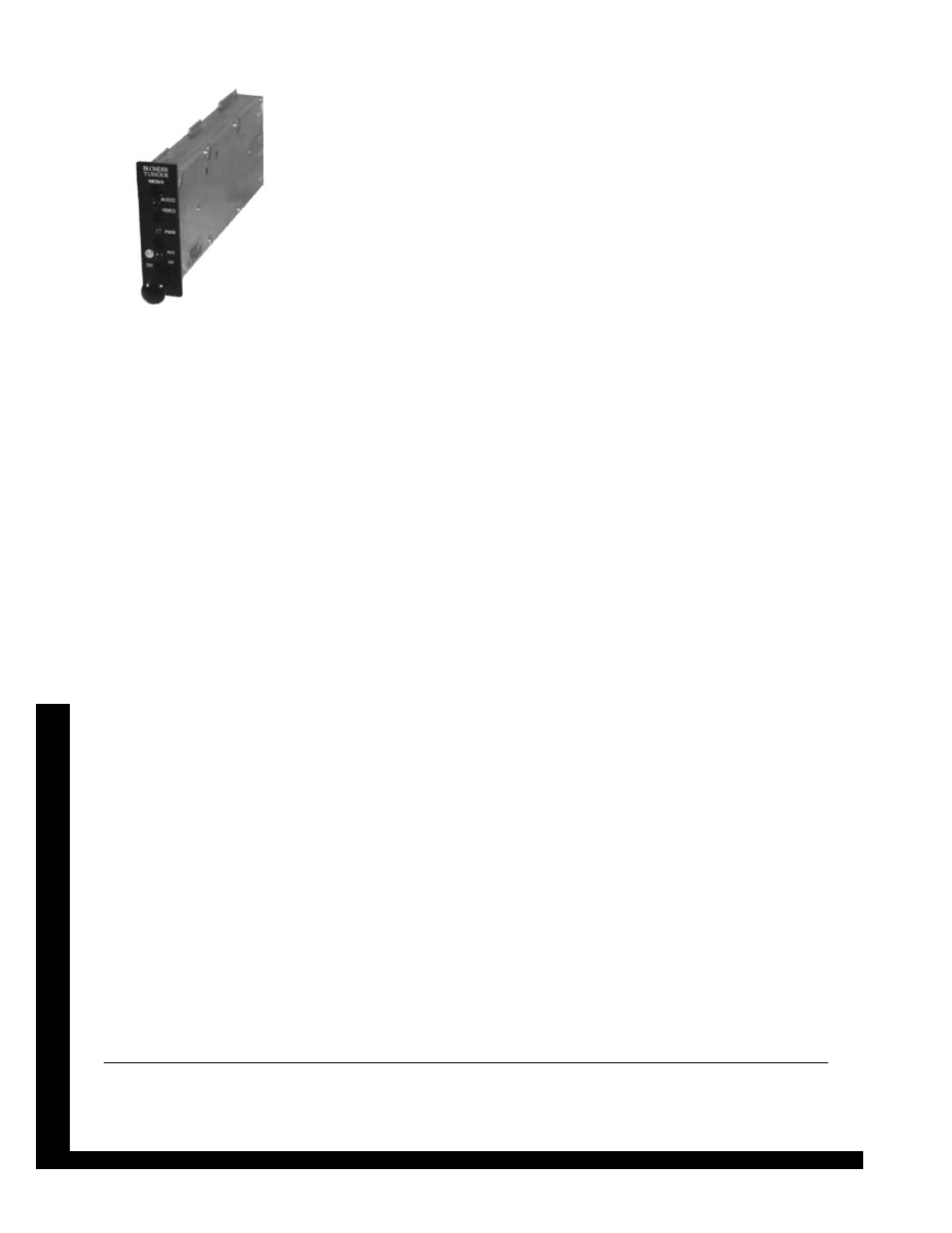

The MIDM is a professional quality agile
audio/video demodulator and is intended
for both CATV and VHF & UHF applica-
tions. The unit is in a “single width” Die-
Cast housing that allows deployment of
up to 12 demodulator units in a MIRC-
12 chassis.
The MIDM demodulates standard CATV,
IRC and HRC channels and is capable
for “Cherry Picking” of CATV channels in
preparation for remodulation. The input
frequency range is agile, allowing selec-
tion of any CATV channel from 54 to 806
MHz. Baseband audio and video are
provided as outputs. It is ideal for off-air
signal processing (audio/video process-
ing and remodulation) applications.
Baseband audio and video are provided
as ouptuts. The MIDM features rock
solid, phase lock loop (PLL) synthesized
frequency control. Agile frequency
selection is accomplished via front panel
channel up/down buttons with a LED
channel readout for easy on-the-fly
channel changes. A channel lockout
mode is also provided to prevent acci-
dental channel changes. Non-volatile
memory maintains the programmed
channel selection in case of power loss.
The MIDM is compatible with any modu-
lators requiring a baseband input, and
can be used in any combination with the
MIPS-12C power supply in a MIRC-12
chassis.
Agile Demodulator HE-12/HE-4 MIDM Series
RF
Frequency Range:
54-806 MHz
VHF, UHF, CATV
(Std., IRC, HRC)
Input Level Range: -5 to +30 dBm VHF/UHF,
+2 to +12 dBmV (CATV)
Noise Figure:
8 dB
Image Rejection:
VHF 60 dB
Input Impedance:
75 Ohm
Video
Output Level:
1.0 V p-p
Output Impedance:
75 Ohm
Audio
Output Level:
1 Vp-p
Output Impedance:
600 Ohm, Unbalanced
General
Power Requirements - External:
12 VDC @ 140 mA
5 VDC @ 150 mA
Temperature Range:
0° to +50° C
Mechanical
Dimensions (WxHxD):
1.0 x 3.5 x 7.50 in
29 x 89 x 191 mm
Weight:
1.2 lbs (0.56 kg)
Connectors/Impedance
Audio Output:
RCA Phono, Fe male
Video Output:
75 Ohm “F” Type, Fe male
RF Input:
75 Ohm “F” Type, Female
Power:
Locking Header, 3 Pin
Controls
Channel Selection:
Push Buttons
ANT/CATV: Push
Button
Power On/OFF:
Push Button
Channel Lock:
Push Button
Audio Level:
Pot
Video Level:
Pot
Indicators
Channel:
2 Digit, 7 Segment LED
Features & Benefits
Die-Cast Chassis Offers Superior Protection Against
Ingress or Egress
Demodulates Any Channel 54-806 MHz
LED Display Makes Agile Channel Selection Easy
Compatible with MICM-45 Modulator for Compact Off-
Channel Processor Solution
Specifications
Ordering Information
Model Stock
No.
Description
MIDM-806C
7740C
HE-12 Series Agile Audio/Video Demodulator 54-806 MHz UHF/VHF/CATV Input
(STD, HRC, IRC)
