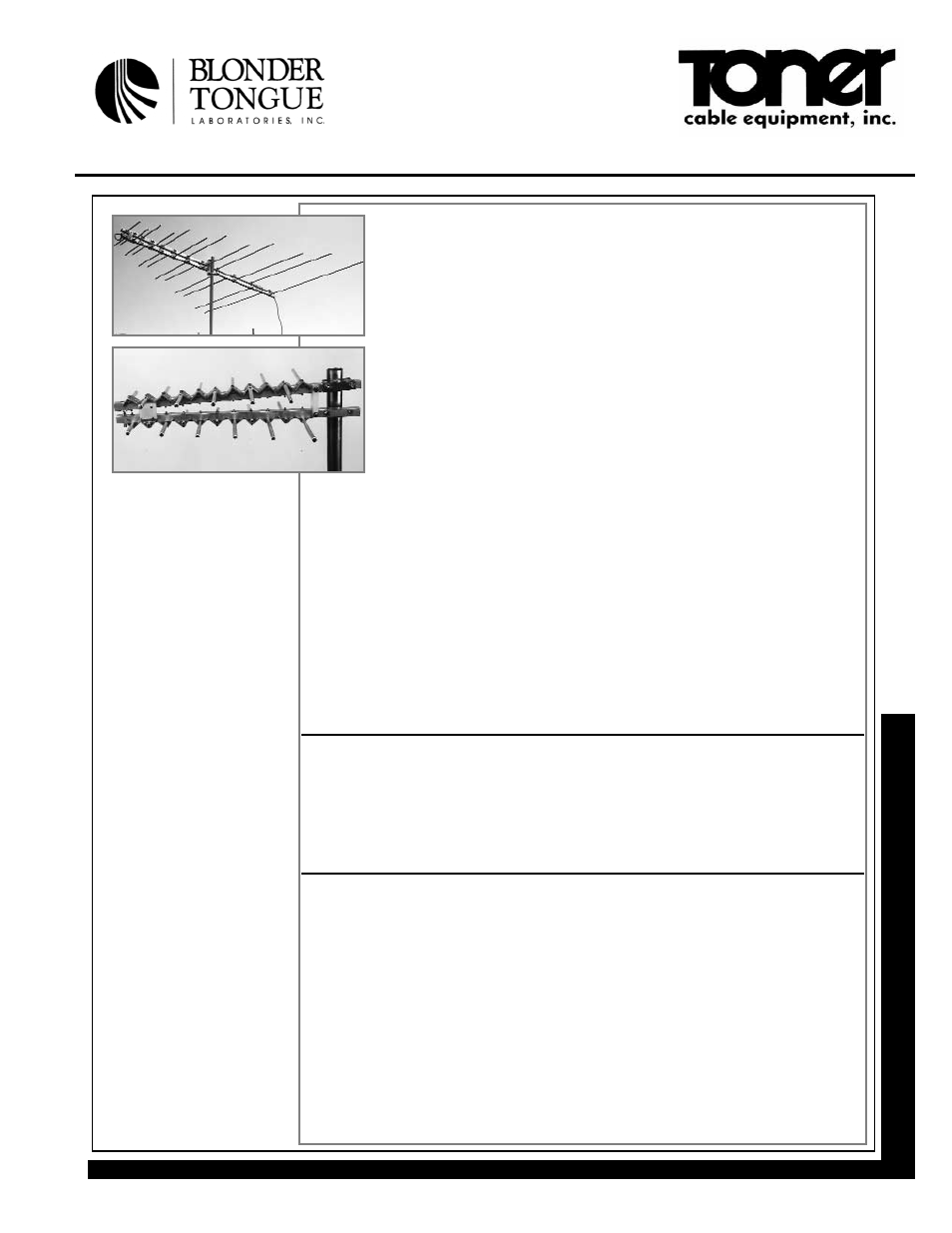

BTY Series Broadband
BTY Broadband VHF & UHF, FM
Antennas & Antenna Mounts
ORDERING INFORMATION:
BTY-LP-BB
Stock No. 4874
FEATURES
High Gain, Low Sidelobes
Foam Filled Elements
Dampen Vibration
Cantilever Mount Available
Joins with BTY-UHF-BB for
Complete VHF/UHF
Antenna
BTY-UHF-BB
Stock No. 4875
FEATURES
High Gain, Low Sidelobes
Joins with BTY-LP-BB for
Complete VHF/UHF
Antenna
BTY-LP-BB
BROADBAND VHF ANTENNAS
The BTY Broadband Antenna Series includes professional quality, broadband antennas
designed for a variety of VHF and UHF applications. The BTY-LP-BB covers VHF chan-
nels 2-6 and 7-13 using 12 antenna elements. The BTY Broadband Antennas feature
high gain, flat response, narrow beamwidth, and low side lobes.
These antennas are designed with a shortened dual boom allowing the antenna to be
shipped via UPS to reduce freight and handling costs. Square boom construction and
end-sealed aluminum elements provide added strength, excellent wind resistance and
exceptional weathering properties. The heavy duty mounting bracket is positioned at
the antenna’s center of gravity for balanced mounting to the mast. This antenna can be
rear mounted using a BTY-C-MOUNT Cantilever Antenna Mount. This style mount per-
mits attaching the antenna to either the horizontal or vertical tower members. The BTY
Series Antennas can accommodate a maximum mast size of 2.5” O.D. (outside diame-
ter). These antennas feature a 75
Ω
type “F” connector to provide feed on coaxial cable
down leads. The BTY-LP-BB has been fabricated to allow mounting the BTY-UHF-BB
on the front of the antenna. Joining these two antennas will create one complete
VHF/UHF broadband antenna.
BTY-UHF-BB
BROADBAND UHF ANTENNA
The BTY Broadband Antenna Series includes professional quality, broadband antennas designed for
a variety of VHF and UHF applications. The BTY-UHF-BB covers UHF channels 14-83 using 11
antenna elements. The BTY Broadband Antennas feature high gain, flat response, narrow
beamwidth, and low side lobes.
The heavy duty mounting bracket is positioned at the rear of the antenna for mounting directly to ver-
tical tower members. This feature maximizes the signal reception qualities of the antenna by keeping
the elements clear of support structures. The BTY Series Antennas can accommodate a maximum
mast size of 2.5” O.D. (outside diameter). These antennas feature a 75
Ω
type “F” connector to pro-
vide feed on coaxial cable down leads. The BTY-UHF-BB has been fabricated to allow mounting on
the front of the BTY-LP-BB antenna. Joining these two antennas will create one complete VHF/UHF
broadband antenna.
SPECIFICATIONS
ELECTRICAL
BTY-LP-BB
BTY-UHF-BB
Units
Gain Over Isotropic:
8.2
10.2
dBi
Bandwidth:
54-88 and 174-216
470-890
MHz
Flatness Over Channel:
1.0
2.0
dB
Horizontal Beamwidth @ -3 dB:
70
62
°
VSWR:
1.67:1
1.67:1
Front to Back Ratio:
18.0
18.0
dB
Return Loss:
12.0
12.0
dB
Impedance:
75
75
Ω
MECHANICAL
Boom:
6063-T6 alum. tube,
6063-T6 alum. tube,
1.25” square, 0.062” wall
0.75” square, 0.062” wall
Boom Length:
96.4
24.0
in
Number of Elements:
12
11
Elements:
6063-T52 alum. tube,
6063-T6 alum. tube,
0.5” round, 0.049” wall
0.375” round, 0.049” wall
Max. Element Width:
114.13
13.00
in
Element
11 gauge
11 gauge
alum.
Mounting Clamp:
(0.090”) 2.0” x 0.94”
(0.090”)
Element Locknut Plate:
8 gauge alum. (0.125”)
8 gauge alum. (0.125”)
Mast Mounting Bracket:
polyethylene, 0.50” thickness
stainless steel
Turning Radius:
75.0”
22.5”
Maximum Cross Sectional Area:
2.0
0.341
sq. feet
Operational/Survival Wind Velocity:
125
125
mph
Wind Resistance @ 100 mph:
80.0
13.6 (no ice)
lbs
Output Connector:
Type “F”, female weather sealed
Type “F”, female weather sealed
Maximum Mast Diameter (O.D.):
2.5
2.5
in
Shipping Weight:
17.75 (8.07)
5.38 (2.45)
lbs (kg)
Shipping Size (LxHxW):
87.5 x 4.0 x 5.5 (222 x 10 x 14)
27.75 x 5 x 15 (70 x 13 x 38)
in (cm)
4874
4875
