Specifications Subject To Change Without Notice

Rev 05-12

©Toner Cable Equipment, Inc.

969 Horsham Road

l

Horsham, Pennsylvania 19044 USA

l

Phone: 215-675-2053 Fax: 215-675-7543

l

[email protected]

Specifications

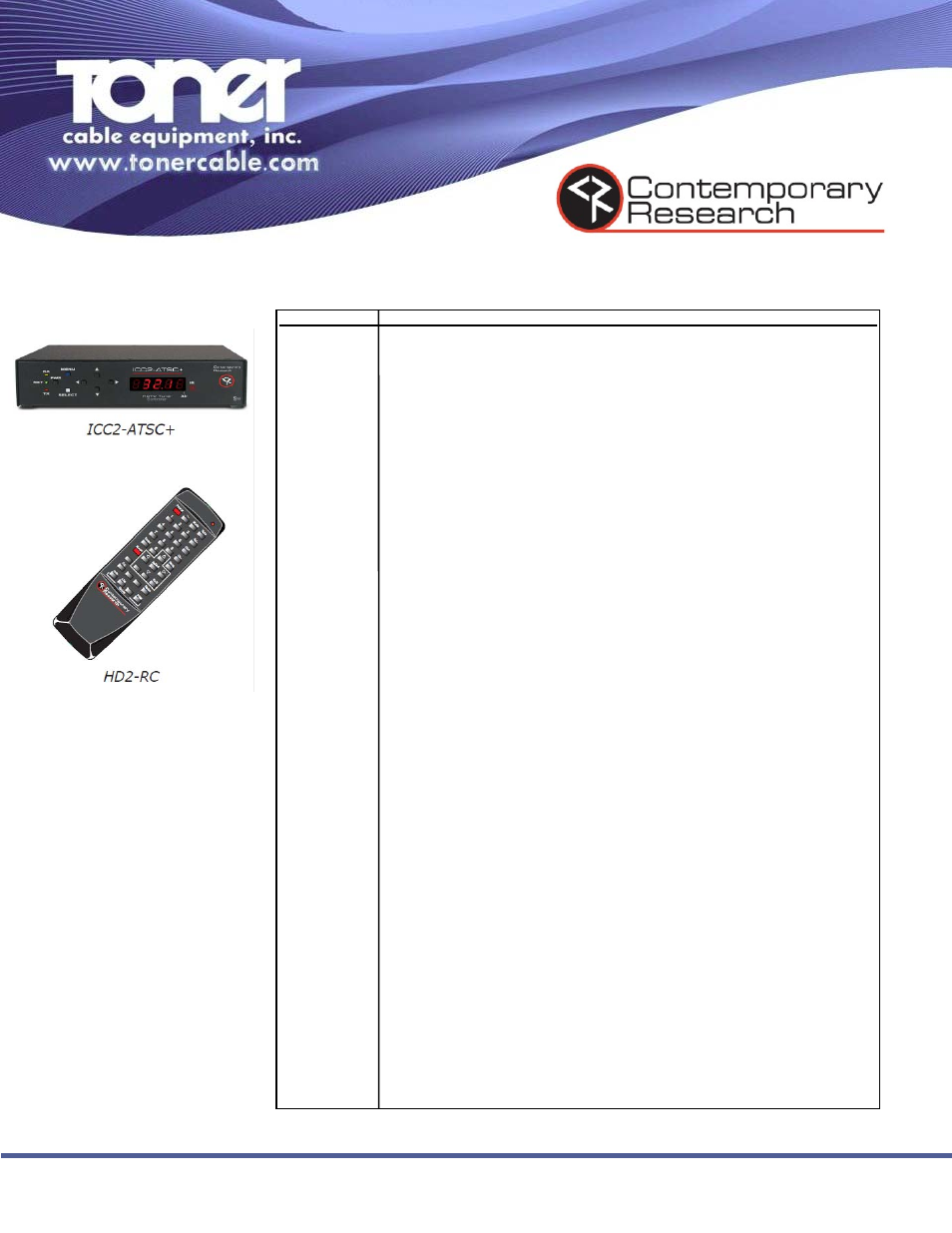

ICC2-ATSC+ HDTV Tuner Controller

Feature
Type

Universal NTSC, digital ATSC and clear QAM Tuner

Physical

8.5” [216mm] wide x 2.0” [51mm] height (1.5 RU) x 8.0” [203mm] deep
1.14 lbs [860 g]
2/1.5RU Rack mounting for one or two units side-by-side optional

(RK1/2-HD+, RK2S-HD+)

RoHS compliant and energy-efficiency meets new California standards

Tuning

Air/Cable RF inputs, optional RF switch allows dual Air and Cable tuning
Type: ATSC, NTSC and Clear QAM
DTV Standards: (1080i/720p/480p/480i)
Aspect Ratio: Adjustable, variety of modes for widescreen 16:9 and

normal 4:3 broadcasts

Captioning: Analog and Digital, set by program or customized for size, font,

and attributes

Favorites: Favorite channel menu
Lock: Parental option for channels and/or rating

Front Panel

RS-232 TX/RX LEDs (Yellow)
Power button, Volume Up and Down, Channel Up and Down
Channel Display (Red LED, dot for major/minor separator, dot for Air/Cable tuning)
IR Sensor, NET LED (Green), RS-232 LEDs: RX (Yellow), TX (Red)

Back Panel

RF

RF In: ‘F’, female, 75 ohm impedance, recieves RF control channel
RF Out: ‘F’, female, passes other channels to Air/Cable input
Air/Cable Input: ‘F’, female, connect RF feed to tuner
Programmable for cable or off-air tuning
Control network carried over the same RF coax connection as TV channels

Receive: Mid-band VHF, 74.7MHz, sent from iC-Net Head End
Transmit: Sub-band, 5.6MHz sent to Head-End Network Controller

±80 KHz max carrier deviation, +49dBmV nominal

HD Outputs

Switchable HD RGBHV and Component outputs
Component: RCA Pr, Pb, Y outputs (1080i/720p/480p/480i)
RGBHV: RGB DB-15 female (1080i/720p/480p)
HDMI: HDMI receptacle (1080i/720p/480p), version 1.3, includes digital audio
Digital Audio S/PDIF: Coax and TOSlink optical output, 5.1 AC3 or PCM

AV Outputs

Simultaneous with HD output
Composite Video: RCA female jack
Audio L and R: 2 stereo RCA female jacks, variable level

RS-232 Control

DB-9 male, RS-232 data link to RS-232 controlled display
300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit

IR Control

3.5 mm stereo input for external IR sensor or wired IR, discrete codes available

A/C Contact

A/C (Air/Cable): 3.5 mm output to operate optional RF-AB RF Switch

Power

2.1mm coaxial jack (inside center conductor positive)
1 A maximum, 11.5 to 15 VDC, 12 VDC typical

Includes

HD2-RC IR Remote and 1.5A 12 VDC power supply

Options

RK1/RK2-HD+ Single or Dual Rack Kit, 2RU
RK1S/RK2S-HD+ Single or Dual Space-Saver Rack, 1.5RU

(reverse mount to stack)

CC-232 RS-232 Cable
RF-AB RF Switch
IR-RXC External IR Receiver
