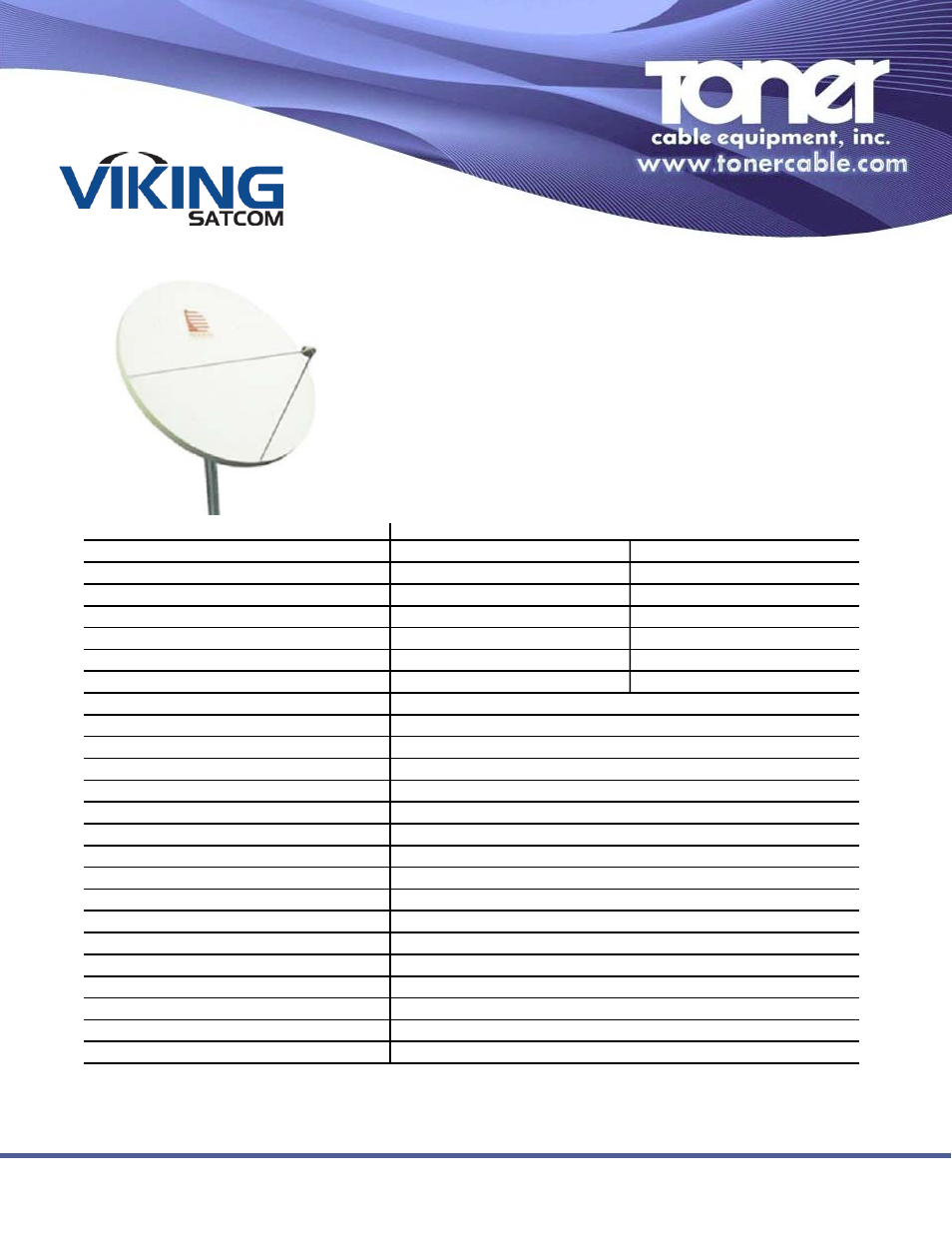

1.8 Meter Offset Receive Only Antennas
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Antenna Size - 1.8
Electrical Specifications C-BAND KU-BAND
Operating Frequency (GHz) 3.625 – 4.2 10.95 – 12.75
Midband Gain, dBi (± .2dB) 35.5 dBi 45.5 dBi
3dB Beamwidth 2.9° 0.9°
Antenna Noise Temperature (20° Elevation) 49K 38K
Antenna Noise Temperature (30° Elevation) 47K 35K
Feed Interface CPR229F WR75
First Sidelobe (typical) -20 dB
Cross-Pol Isolation (Linear) >30 dB (on axis)
VSWR 1.3:1 Max.
Mechanical Specifications
Reflector Material Glass Fiber Reinforced Polyester SMC
Antenna Optics Prime Focus, One-Piece Offset Feed
Mast Pipe Size 3.5” SCH 40 Pipe (4.00” OD)
F/D Ratio / Feed Support .37 / Tripod Feed Support
Elevation Adjustment Range 5° to 90° Continuous Fine Adjustment
Azimuth Adjustment Range 360° Continuous
Environmental Specifications
Wind Load
Survival 125 mph (201 km/h)
Operational 45 mph (72 km/h)
Temperature
Operational -40° to 140°F (-40° to 60° C)
Survival -50° to 160°F (-46° to 71° C)
• Precision Compression Molded Offset
Reflector
• Fully Galvanized Steel Az/El mount
• Upgradable to Transmit Receive
P180FAE
Specifications Subject To Change Without Notice Rev 05-12 ©Toner Cable Equipment, Inc.
