Toner Cable VX-1DVI DVI Video Fiber Optic Extender - Manual (Page 2)

Specifications Subject To Change Without Notice Rev 0 6-13 ©Toner Cable Equipment, Inc.
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
OTX-1DVI-SD/XMT-XX-LC OTX-1DVI-SD/RCV-XX-LC
DVI Input
Stereo Audio
Input
DVI Output
Stereo Audio
Output
LC Optical Connectors
RS-232 RS-232
Models

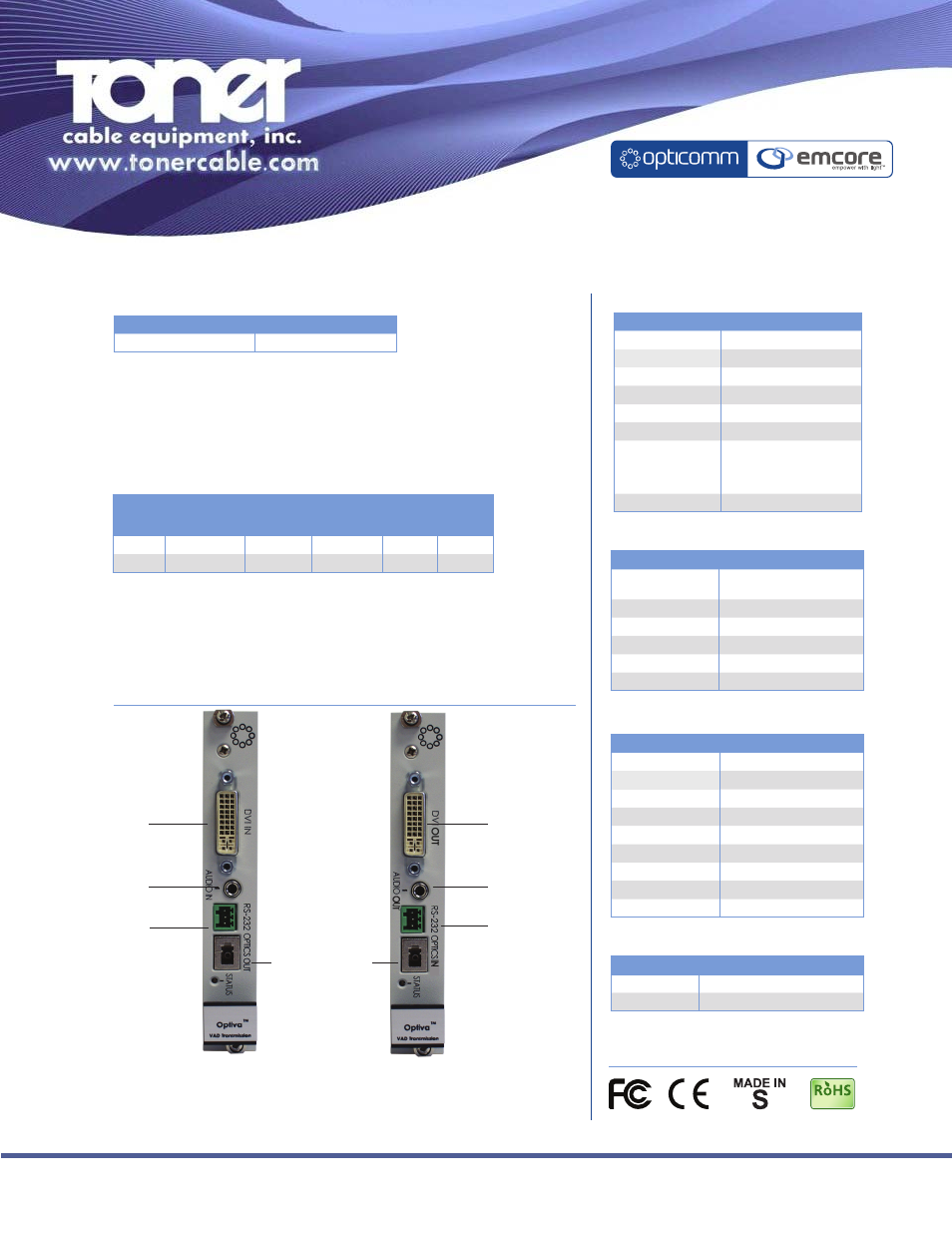

Connection Diagram
General
Specifications Values
Dimensions (Insert Card) 6.3”D x 0.8”W x 4.0”H
Weight 11 oz.
Operating Temperature 0˚ to +50˚C
Storage Temperature 20˚C to +85˚C
Humidity 10 to 90% (non-condensing)
Power Consumption <2W Max.
Monitoring LED on TX & RX
Rapid flash - Boot up
Slow flash - Fiber disconnected
Steady on - Link established
Warranty 3 Years
Compliance (Pending)
Optical Specifications
Fiber Type
“XX”
Wavelength
(nm)
Data Rate
Optical Budget
(db)
Distance
(km)
Connector
MM 850/1310/1550 6.25 Gbps <12 0.3 LC
SM 1490/1550/1310 6.25 Gbps <12 10 LC
DVI Unit Transmitter DVI Unit Receiver
OTX-1DVI-SD/XMT- XX -LC OTX-1DVI-SD/RCV- XX -LC
„ When ordering replace “ XX” with one of the Fiber Type Options
„ Chromatic dispersion as well as other losses should also be taken into account
„ Stated distances are the maximum range, shorter distance may require attenuation
„ Standard connection type is UPC
„ Multimode TX must be used with multimode RX and singlemode TX must be used with singlemode RX
Video
Specifications Values
Standards DVI standard resolutions up to
WUXGA
Resolutions (see chart on front side)
Connector Type Single Link DVI-D (18 pin male)
HDCP Compliance v1.2
EDID Plug & Play
Color Depth 24-bit
Specifications Values
Serial Data 1 Channel RS-232
Connector Type Terminal block (3 pin)
Data
Audio
Specifications Values
Inputs/Outputs Unbalanced audio 2 channel (1L/1R)
Channels 24-Bit Dual Channel
Impedance 47k Ohm Unbalanced
Audio Levels 700 mVrms (maximum)
Frequency Response 20 Hz to 20 KHz (±0.1 dB)
Signal-to-Noise Ratio > 80 dB @ 1KHz
Total Harmonic Distortion < 0.1% @ 1KHz
Crosstalk >70dB @ 10KHz
Connector Type 3.5mm Stereo Headphone Jack
OTX-1DVI-SD
DVI Video, RS-232, Stereo Audio Fiber Optic Extender
