Toner Cable FEED-SUPER-CIRC C Band Circular Prime Focus Feeds, Single Polarity User Manual
C band circular prime focus feeds

C Band Circular Prime Focus Feeds
969 Horsham Road
l
Horsham, Pennsylvania 19044 USA
l
Phone: 215-675-2053 Fax: 215-675-7543
l
Specifications Subject To Change Without Notice
Rev 05-12
©Toner Cable Equipment, Inc.
SPECIFICATIONS FEED-SUPER-CIRC
FEED-DUAL-CIRC
Polarity Single
Dual
Frequency Range
3.7 – 4.2GHz
3.7 – 4.2GHz
f/D Range
.33 to .45
.33 to .45
Axial Ratio
3dB Typical
Port 1
≤ 2.5dB / Port 2 ≤ 2dB
Return Loss
14dB
15dB
Insertion Loss
0.15dB
0.2dB
Isolation
< 20dB
Weight
1.43 lbs
2.23 lbs
Temperature Range
-40° C to + 60°
C -40° C to + 60° C
•
Prime Focus Single and Dual Polarity
Circular C band Feeds
•
Universal Mounting Pattern
•
Made in the USA
FEED-SUPER-CIRC
FEED-DUAL-CIRC

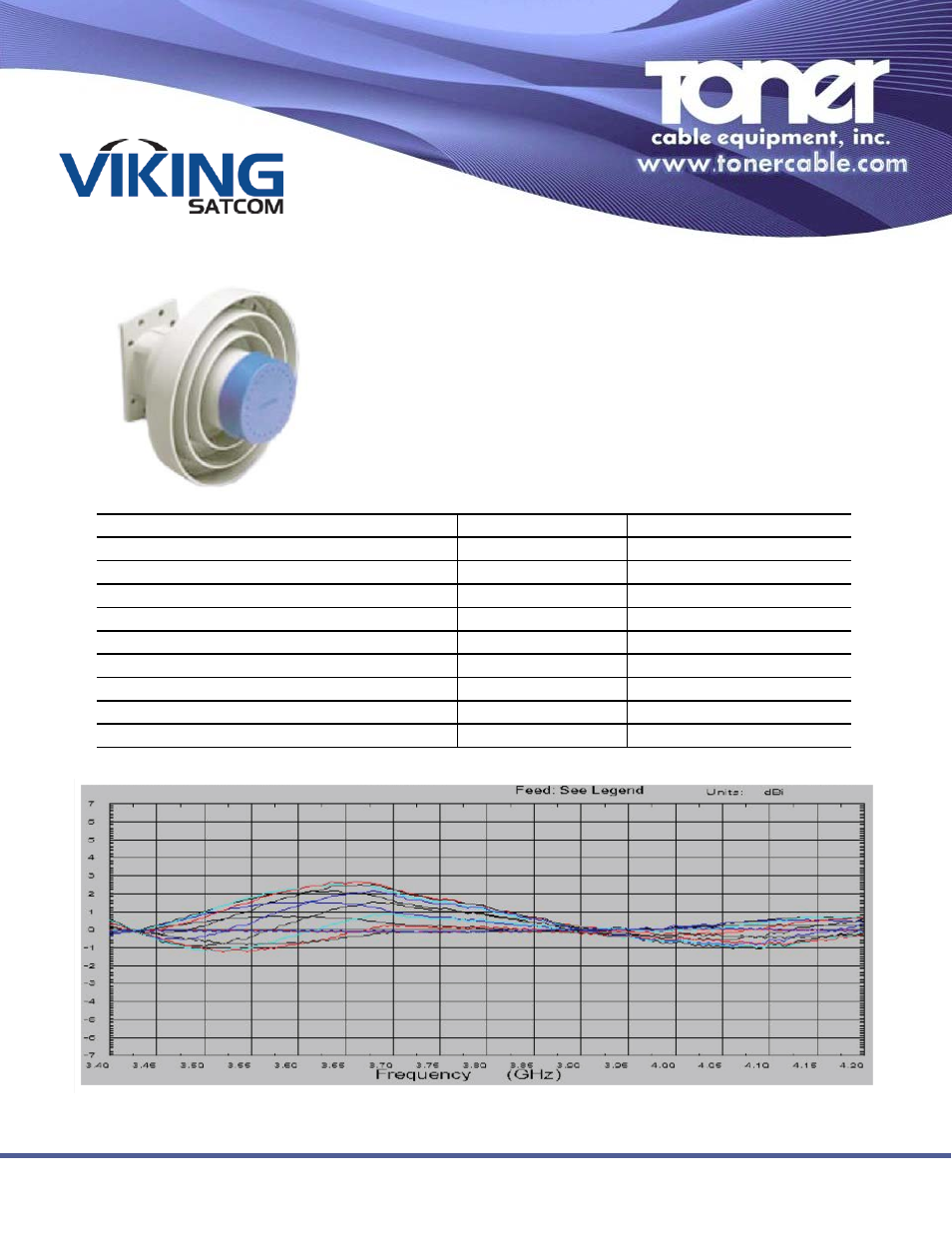

*Typical A/R characteristics of FEED-DUAL-CIRC
