Toner Cable TDA-R-40-115 1 GHz Drop Amplifier - Manual

TDA-R-115 Series
1 GHz Drop Amplifier with Reverse
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Specifications Subject To Change Without Notice Rev 06-13 © Toner Cable Equipment, Inc.

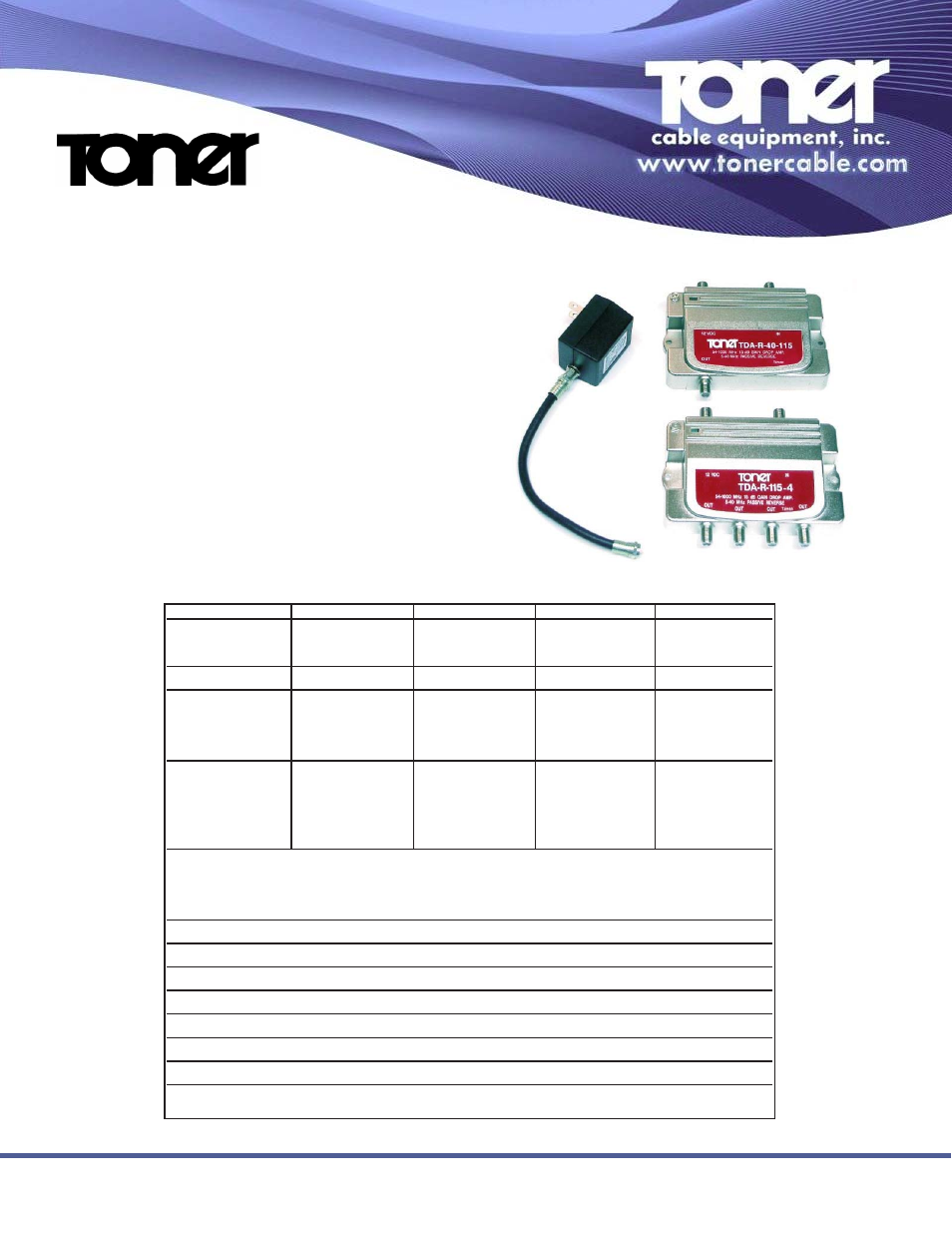

The TDA-R-115 series amplifiers are 15 dB gain
models ideally suited for long cable drops or multiple
subscriber outlets. With integral reverse diplex fil-
ters, the TDA-R-115 is the perfect amplifier for an
addressable system. The unit is built in a rugged
zinc diecast housing with two mounting flanges and
a built in ground lug.
The amplifier is powered by a separate 12 VDC/110
or 220-240 VAC plug-in transformer. Both the
amplifier and the transformer DC power fittings are
"F" type, allowing the use of coaxial cable, which is
low in cost and readily available. A 6' RG-59 jumper
is provided for convenience.
MODEL TDA-R-40-115 TDA-R-40A-115 TDA-R-40-115-4 TDA-R-40A-115-4
Return Type Passive Active Passive Active
Configuration
Outputs 1 1 4 4
Bandwidth
Forward 54MHz-1GHz 54 MHz-1GHz 54MHz-1GHz 54MHz-1GHz
Reverse 5-42MHz 5-42 MHz 5-42MHz 5-42MHz
Gain / Loss
(includes split loss)
Forward 14.5dB ± 1dB 14.5dB ± 1dB 7.8dB ± 1dB 7.8dB ± 1dB
Reverse -1dB ± .75dB 10dB ± 1dB -8dB ± 1 dB 3.8dB ± .75 dB
Noise Figure (Forward)
Typical 3.0dB
Maximum 4.0dB
Input Return Loss 14dB
Output Return Loss 14dB (passive reverse) 10dB (active reverse)
Frequency Response ±1.0dB
CTB 52 Channels @ 20 dBmV Output -69dB typical
Maximum Output Capability +52dBmV
Cross Modulation @ 25 dBmV Ouput (with 56 channel loading) -67dBc
Maximum Input Level (Forward) +40 dBmV
Power Supply (all models available from stock)
¬117 VAC (USA) ¬220 VAC (UK) ¬230 VAC (European)
SPECIFICATIONS
Other models also available
