Specifications
Specifications Subject To Change Without Notice Rev 09-11 ©Toner Cable Equipment, Inc.

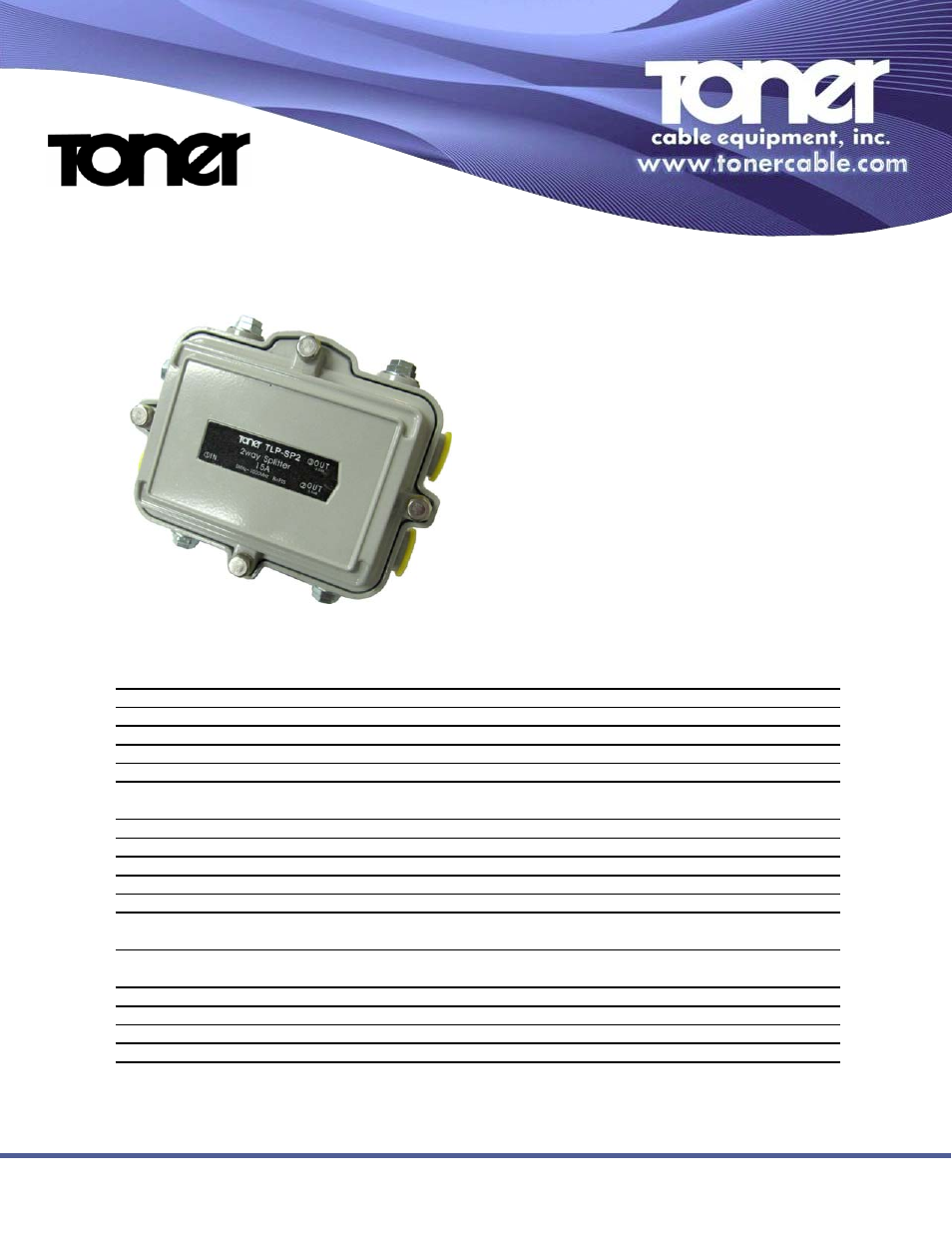

TLP-SP Series
Hardline 1 GHz Splitters
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Features
• 5 MHz to 1 GHz bandwidth
• 15 Amp power passing
• 30, 60, 90 VAC power passing
• Stainless Steel hardware
• Aluminum diecast housings with machined
(not cast) threads
• Epoxy finish for corrosion resistance
• -100dB RFI EMI/RF shielding
• Heat shrink lip on connector ports
• 75Ω Impedance
• 20 Amp fuse
• Meets current SCTE standards
TLP-SP2 2 Way Splitter 5-10 MHz 10-40 MHz 40-450 MHz 450-862 MHz 862-1000 MHz
Insertion loss 4.2 dB 4.1 dB 4.5 dB 5.4 dB 5.5 dB
Isolation 20 dB 20 dB 20 dB 20 dB 20 dB
Return Loss In 17 dB 17 dB 17 dB 17 dB 17 dB
Return Loss Out/Tap 17 dB 17 dB 17 dB 17 dB 17 dB
TLP-SP3 3 Way Splitter 5-10 MHz 10-40 MHz 40-450 MHz 450-862 MHz 862-1000 MHz
Insertion loss 4.4/7.7 dB 4.2/7.5 dB 4.7/7.9 dB 5.5/8.4 dB 5.6/8.5 dB
Isolation 20 dB 20 dB 20 dB 20 dB 20 dB
Return Loss In 17 dB 17 dB 17 dB 16 dB 16 dB
Return Loss Out/Tap 17 dB 17 dB 17 dB 17 dB 17 dB
TLP-SP3B 3 Way 5-10 MHz 10-40 MHz 40-450 MHz 450-862 MHz 862-1000 MHz
Balanced Splitter
Insertion loss
7.0 dB 7.3 dB 7.9 dB 8.4 dB 8.5 dB
Isolation 20 dB 20 dB 20 dB 20 dB 20 dB
Return Loss In 17 dB 17 dB 17 dB 17 dB 17 dB
Return Loss Out/Tap 17 dB 17 dB 17 dB 17 dB 17 dB
