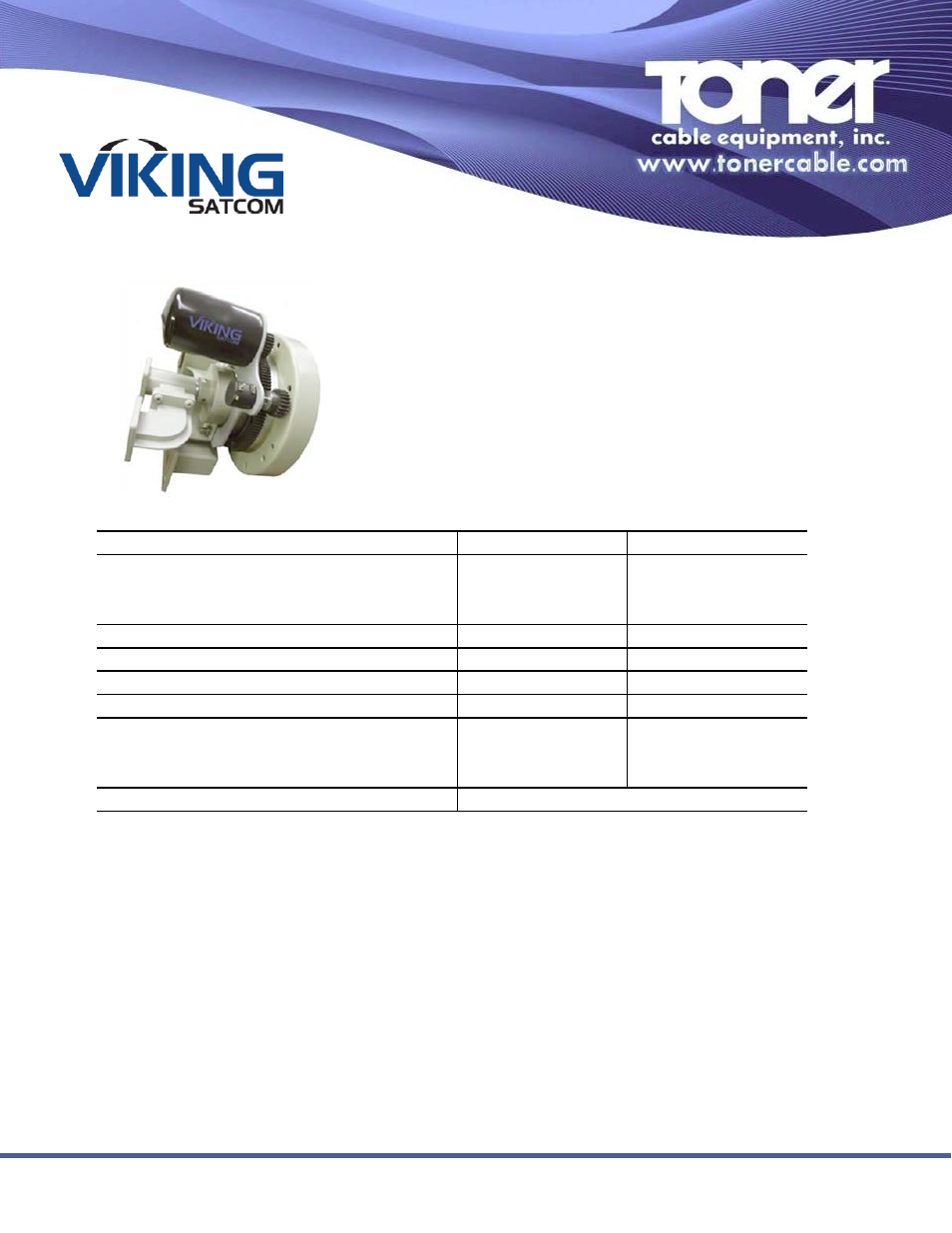

Toner Cable FEED-4CKU-MOTO C-KU Band Motorized 4 Port Feeds, Linear - Manual

C/KU Band Motorized 4 Port Feeds
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
Specifications Subject To Change Without Notice Rev 05-12 ©Toner Cable Equipment, Inc.
SPECIFICATIONS C BAND KU-BAND
Frequency:
FEED-4CKU-MOTO 3.7 – 4.2GHz 11.70 - 12.75GHz
FEED-4CKU-MOTO-WB & FEED-4CCKU-MOTO 3.7 – 4.2GHz 10.95 – 12.75GHz
VSWR 1.6:1 typical 1.4:1 typical
Isolation (Linear) 18 dB 25 dB
Number of Ports 2 2
Type of Ports WR229 WR75
Polarization:
FEED-4CKU-MOTO & FEED-4CKU-MOTO-WB Linear Linear
FEED-4CCKU-MOTO Circular Linear
Weight 6.5 Lbs approx
• Motorized Receive Only 4 Port
C/Ku band Prime Focus Feed
• 24 volt Motor and Potentiometer for
Fine Polarization Adjustment
• For New Antennas or Upgrading
Legacy Systems
Features
• Simultaneous Reception of Dual C & Dual Ku-Band Polarities
• Full 250° of Travel
• Hi Torque 24VDC Motor / 5K 5 Turn Potentiometer
• Universal Mounting - Mounts to single pole, tripod and quadpod feed
supports
• For use with new antennas or upgrading existing antennas in the field
• Ideal for use with Research Concepts controllers
• Mechanical stop to prevent over travel
• All Components Weather Resistant
• Stainless Steel Hardware
• Hard Coat Anodized Aluminum Gears for wear protection
• Field Replaceable Components
FEED-4CKU-MOTO
FEED-4CKU-MOTO-WB
FEED-4CCKU-MOTO
