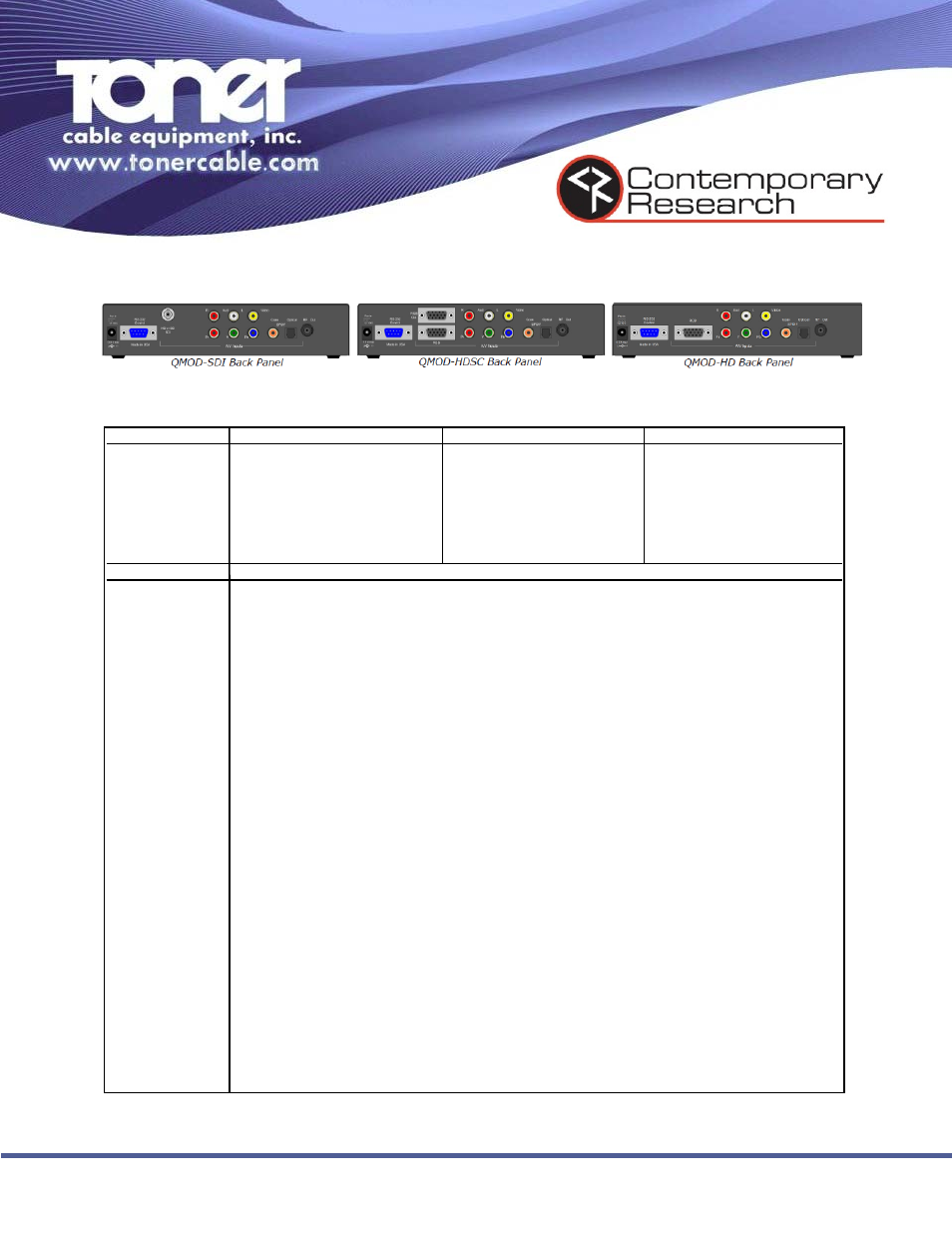

Specifications
QMOD HDTV Modulators
Feature QMOD-SDI QMOD-HDSC QMOD-HD
Application HD/SD-SDI Video Digital Signage/PAL Video HD Analog Media
HD Video SDI: Female BNC RGB In: RGBHV DB-15 female, RGB In: RGBHV DB-15 female
(1080i/720p/480i), auto-sync up to 1080p check crwww.com (1080i/720p/480p/480i),
Embedded SDi audio, selectable for resolution specs 59.94/29.97 Hz
for 1+2, 3+4, 5+6, 7+8 RGB Out: DB-15 female
Power 0.8 A maximum 1.1 A Maximum 0.7 A Maximum
Includes PS12-1.0 switching power PS12-1.5 switching power PS12-1.0 switching power
supply, 1A 12 VDC supply, 1.5A 12 VDC supply, 1A 12 VDC
Shared Features
Physical 8.5” [216mm] wide x 1.73” [62mm] height (1RU) x 6.0” [153mm] deep
1.5 lbs [0.68kg]
+32° to 122° F operating temperature, convection cooled
Rack mounting for one or two units side-by-side (RK1, RK2)
Encoding MPEG2 Profile:MP@HL for HD, MP@ML for SD
1080i, 720p, 480p, and 480i resolution, depending on input
Video Encoding bitrate 18 or 25 Mbps
MPEG1, Layer 2 audio
Latency 275ms 720p, 550ms 1080i
Modulation Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1) MER 38 dB typical
FCC Class B, ROHS, meets California standards
Front Power button
Setup, Select and directional buttons for menu setup
Menu LCD, 2 lines of 20 blue characters each
Back
Power 2.1mm coaxial jack (inside center conductor positive) 11.5 to 13.5 VDC, 12 VDC typical
Control DB-9 male, RS-232 data link to control system
300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit
2 GPI contacts on pins trigger EAS
Analog Video RGBHV: HD-15, QMOD-HD1080i/720p 29.97/ 59.94 Hz, QMOD-HDSC up to 1920 x 1080
Component: RCA Y, Pb, Pr (1080i/720p/480p/480i) , 59.94/29.97 Hz
S-Video: Y(Composite), C (Blue Pb) 480i, 29.97 Hz
Composite Video: RCA female (480i), 29.97 Hz
Audio Digital SPDIF: Coax and TOSlink optical output, PCM 48K sample rate
Analog L and R: 2 stereo RCA female jacks
Inputs assignable to video inputs
EAS GPI inputs switch AV to composite video and assigned audio
RF ‘F’, female, 75 ohm impedance
Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
29 dBmV typical output power, attenuated in 5 steps, approx 4 dB
Options RK1 Single Rack Kit , RK1-AC Single Rack Kit with accessory shelf
RK2 Dual Rack Kit, RK2 EZ Dual Rack Kit
