Toner Cable AVN443 HD-SDI Input H.264 HD IPTV Encoder - Manual (Page 2)

Specifications Subject To Change Without Notice Rev 05-13 ©Toner Cable Equipment, Inc.
969 Horsham Road l Horsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 l [email protected]
$91
+'6',,QSXW++',379(QFRGHU

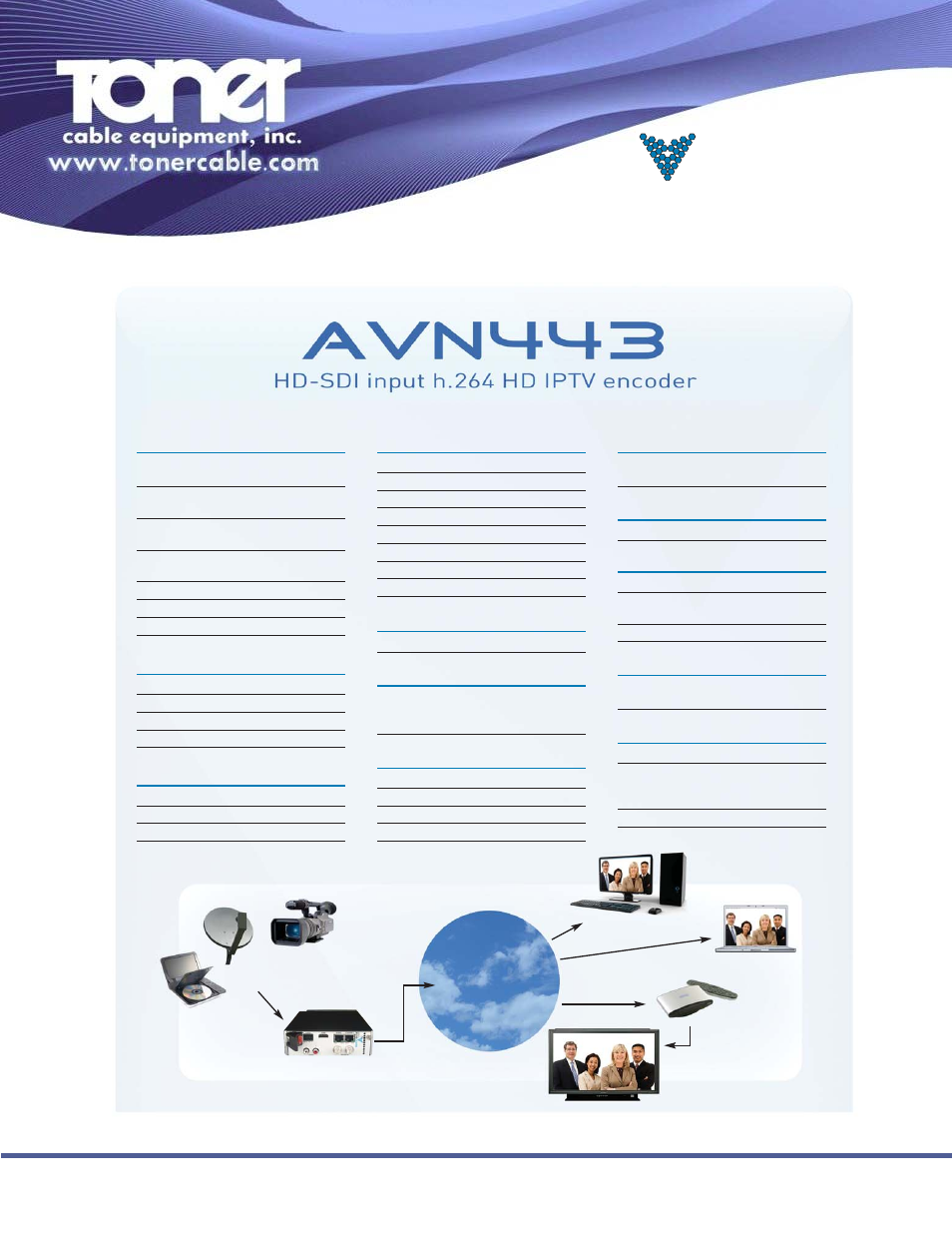

AVN ENCODER
VIDEO SOURCES
PC
MAC
SET TOP
DECODER
TV
NETWORK
Input/Output
BNC (SD, HD, 3G) serial digital input
with EDH error detection
BNC (SD, HD, 3G) loop through
(re-clocked)
HDMI or DVI-D with optional
adaptor cable
Terminal block audio connector for
Balanced and Un-Balanced Stereo
RCA Stereo Audio
RJ-45 Ethernet 10/100
RJ-45 Serial RS-232C or RS-422
HD Video Encoding
h.264 MPEG-4 AVC Compression
High Profile at level 4 (HP@L4)
5Mbps to 20Mbps
IGMP v1, v2, v3
SD Video Encoding
h.264 MPEG-4 AVC Compression
Main Profile at Level 3 (MP@L3)
2Mbps to 10Mbps
IGMP v1, v2, v3
Video Resolutions
1080p 60 – (requires 1080p60 module)
1080p 24 – (requires 1080i module)
1080i 59.94/60 – (requires 1080i module)
1080i 50 – (requires 1080i module)
720p 59.94/60 – (requires 720p module)
720p 50 – (requires 720p module)
576i 50
480i 59.94
Closed Captioning (CC)
SDI only (SD/HD/3G) EIA-608 and EIA-708
Forward Error Correction (FEC)
SMPTE-2022 Pro-MPEG FEC Code of
Practice # 3, Release 1 and 2 – (requires
FEC module)
Audio Encoding
MPEG-1 Layer II stereo
64kbps to 384kbps
MPEG-2 AAC stereo
128kbps to 384kbps
Dimensions
(W x D x H)
40 x 131 x 175 (1.6” x 5.2” x 6.9”)
Weight
220g or .49 lb. (approximate)
Power Input
DC Input 4.75 Watts
MPP200 Chassis 100-240VAC 50/60Hz
Adapter
MPP1700 Chassis 100-240VAC 50/60Hz
Environmental
Operating Temperature -10ºC to 50ºC
(14ºF to 122ºF)
Compliance
CE, UL Listed I.T.E E257717
EMC: FCC Part 15 Class A [MPP200] Class
A, EN55022 [MPP1700] Class A, EN55022
EN61000-3-2, EN61000-3-3, EN55024
SAFETY: EN60950-1
NETWORK CORE
SPECIFICATIONS
Visionary Solutions, Inc.
