Trek 2100HF High-Voltage Power Amplifier - Manual (Page 2)

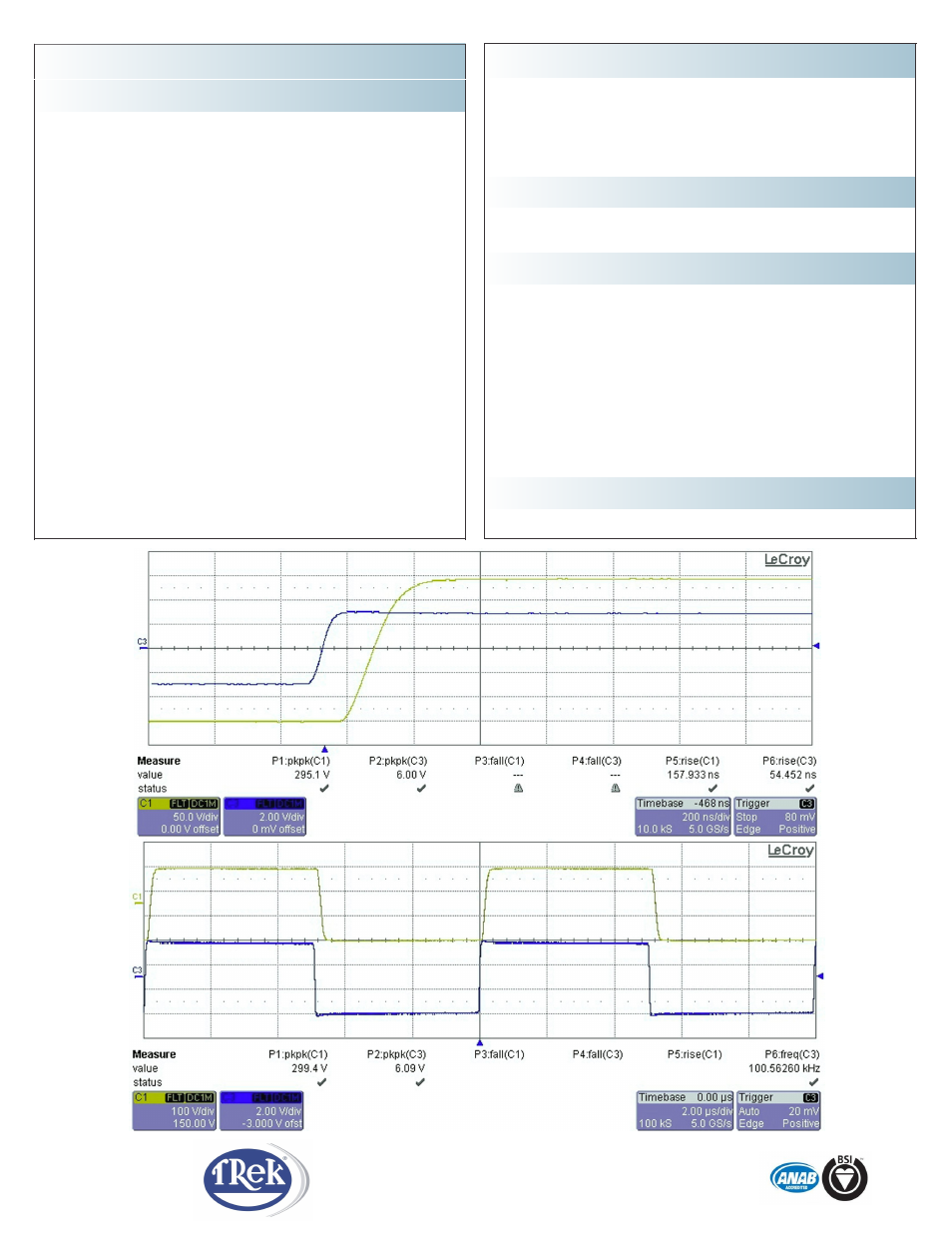

Mechanical
Dimensions 141 mm H x 213 mm W 336 mm D
(5.57” H x 8.38” W x 13.22” D)
Weight 6.8 kg (15 lb)
HV Connector BNC Connector
Electrical
Input Power 90 to 127 V AC, at 48 to 63 Hz
180 to 250 V AC, at 48 to 63 Hz
Supplied Accessories
Operators’ Manual PN: 23435
Line Cord (104 to 127
V AC operation) PN: N5002
Fuse, 2 A, 250 V
Slow, 5 mm x 20 mm PN: H0014R
Line Cord (207 to 250
V AC operation) Line cord type determined by the geographical
destination of the unit
Fuse, 2 A, 250 V
Slow, 5 mm x 20 mm PN: H0013R
Optional Accessories
Optional Accessories None
Measurement and Power Solutions TM
www.trekinc.com
Copyright © 2012 TREK, INC. All specifications are subject to change. 1244/JRB
Model 2100HF Specifications
Performance
Output Voltage
Range 0 to ±150 V DC or peak AC
Output Current
Range 0 to ±300 mA DC
Input Voltage Range 0 to ±3 V DC or peak AC
Input Impedance 50 kW, nominal
DC Voltage Gain 50 V/V
Offset Voltage Less than ±100 mV
Output Noise Less than 50 mV p-p
Slew Rate (10-90%) Greater than 2000 V/µs
Large Signal
Bandwidth (-3 dB) DC to greater than 2.6 MHz
Small Signal
Bandwidth (-3dB) DC to greater than 3 MHz
Stability
Delay Time Less than 6 mV/ minute, noncumulative
Drift with Temp Less than 150 ns (input to output)
