Trek 821HH Hand-Held Electrostatic Voltmeter - Manual

® Trek’s Model 821HH Infinitron Hand-Held Electrostatic
Voltmeter represents the next generation of contacting
precision surface voltage measuring instruments, providing
input characteristics far beyond the limits of any currently
available hand-held voltmeter product.
The Model 821HH can easily measure the voltage level of both
conductive and insulative objects and surfaces with virtually
zero charge transfer to the measurement probe. This results in
stable high accuracy voltage measurement capability for ESD-
sensitive devices.

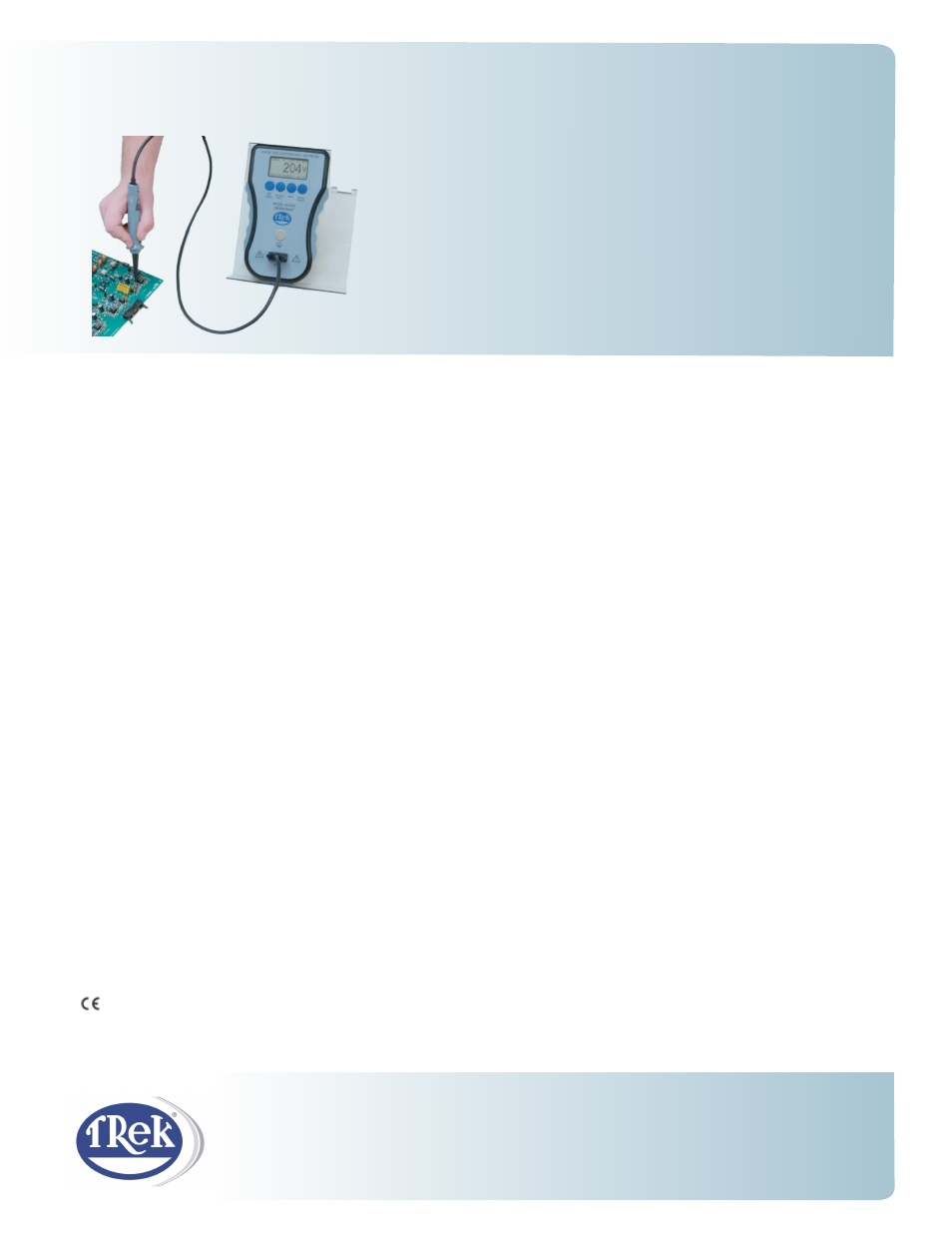

Trek Model 821HH
Hand-Held Electrostatic Voltmeter
Typical Applications Include
! Semiconductors
LEDs
MR head sensors
Other ESD sensitive devices
!
!
!
TREK, INC. • 190 Walnut Street • Lockport, NY 14094 • USA • 800-FOR TREK
716-438-7555 • 716-201-1804 (fax) • www.trekinc.com • [email protected]
Features and Benefits
!
!
!
!
!
Probe tip assumes the voltage level of the measured object’s surface as the tip approaches resulting in no current
flow at the time of contact.
Battery or line operation
Easy to read LCD display
Records voltage, temperature and humidity
Data graphing capabilities
!
! NIST-traceable Certificate of Calibration provided with each unit
compliant
Key Specifications
!
!
!
-14 1 x 10 F
!
Measurement Range:
Voltage Display Accuracy
14 Input Characteristics: Resistance greater than 1 x 10 W
Capacitance less than
0 to ±2 kV DC or peak AC
Better than 1% of full scale, ±1 digit
Voltage Monitor Output: Scale factor at 1/1000
