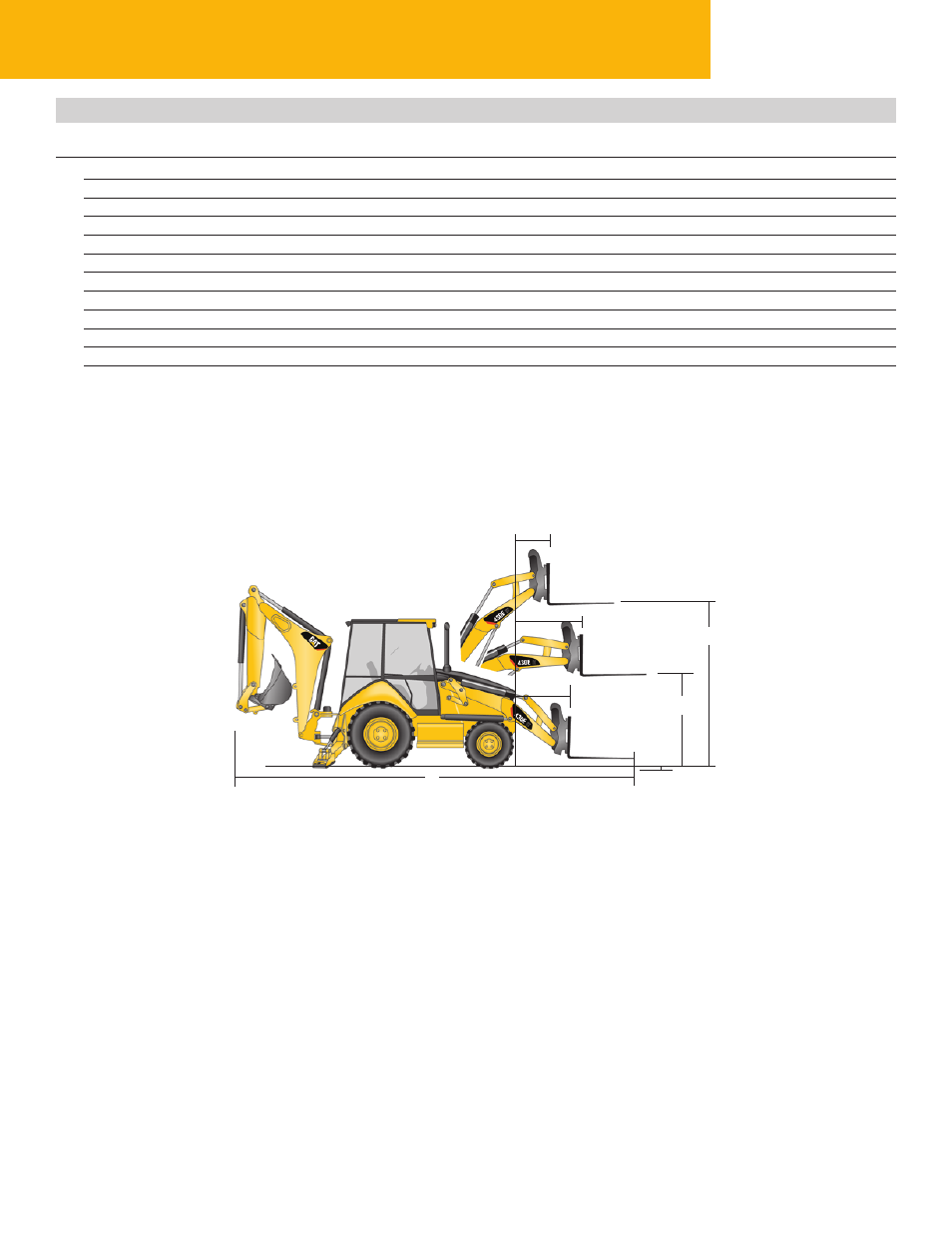

430E/430E IT Specifications
Dimensions with Forks
Fork Tine Length 1070 mm/3 ft 6 in 1220 mm/4 ft 0 in 1370 mm/4 ft 10 in
Operating load (SAE J1197) 2403 kg* 5,298 lb* 2258 kg 4,978 lb 2089 kg 4,604 lb
SAE load center 535 mm 1 ft 9 in 610 mm 2 ft 0 in 685 mm 2 ft 3 in
Operating load (CEN 474-4) 2428 kg 5,353 lb 2406 kg 5,304 lb 2382 kg 5,252 lb
CEN load center 500 mm 1 ft 8 in 500 mm 1 ft 8 in 500 mm 1 ft 8 in
(1) Overall length (forks on ground) 7857 mm 25 ft 9 in 8007 mm 26 ft 3 in 8157 mm 26 ft 9 in
(2) Reach at ground (from grill to heel of fork) 985 mm 3 ft 3 in 985 mm 3 ft 3 in 985 mm 3 ft 3 in
(3) Maximum reach (from grill to heel of fork) 1427 mm 4 ft 8 in 1427 mm 4 ft 8 in 1427 mm 4 ft 8 in
(4) Fork height at maximum reach 1458 mm 4 ft 9 in 1458 mm 4 ft 9 in 1458 mm 4 ft 9 in
(5) Reach at maximum height (from grill to heel of fork) 665 mm 2 ft 2 in 665 mm 2 ft 2 in 665 mm 2 ft 2 in
(6) Maximum fork height 3238 mm 10 ft 7 in 3238 mm 10 ft 7 in 3238 mm 10 ft 7 in
(7) Maximum fork depth (below ground level) 20 mm 1 in 20 mm 1 in 20 mm 1 in
* Tip limited.
Dimensions and performance specifi cations shown are for machines equipped with 12.5/80-18 SGL front tires, 19.5L-24 IT525 rear tires, ROPS canopy, standard stick with
610 mm (24 inch) standard duty bucket, and 0.96 m 3 (1.25 yd 3 ) loader bucket and standard equipment unless otherwise specifi ed.
