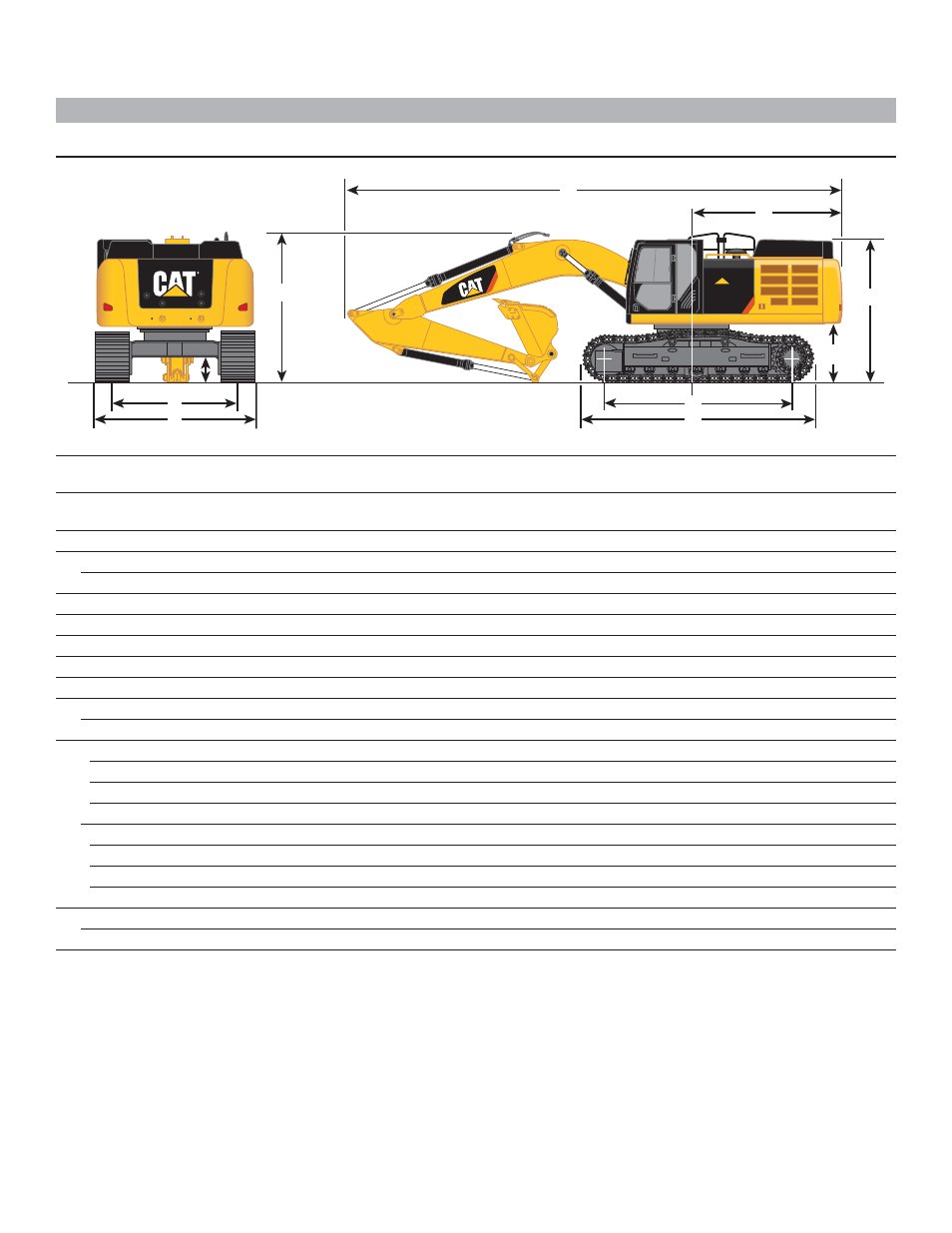

Dimensions – Long VG Undercarriage
Alldimensionsareapproximate.
2
3
1
9
10
7
6
4
8 5
HD Reach Boom Mass Boom
6.9 m (22'8") 6.55 m (21'6")
Stick R3.9TB R3.35TB M3.0UB M2.5UB
(12'10") (11'0") (9'10") (8'2")
mm (ft) mm (ft) mm (ft) mm (ft)
1 Shipping Height 3650 (12'0") 3550 (11'8") 4020 (13'2") 4010 (13'2")
Shipping Height with Top Guard 3650 (12'0") 3550 (11'8") 4020 (13'2") 4010 (13'2")
2 Shipping Length 11 890 (39'0") 11 820 (38'9") 11 560 (37'11") 11 640 (38'2")
3 Tail Swing Radius 3760 (12'4") 3760 (12'4") 3760 (12'4") 3760 (12'4")
4 Length to Center of Rollers 4340 (14'3") 4340 (14'3") 4340 (14'3") 4340 (14'3")
5 Track Length 5380 (17'8") 5380 (17'8") 5380 (17'8") 5380 (17'8")
6 Ground Clearance (including Shoe Lug Height) 740 (2'5") 740 (2'5") 740 (2'5") 740 (2'5")
7 Track Gauge (Expanded) 2890 (9'6") 2890 (9'6") 2890 (9'6") 2890 (9'6")
Track Gauge (Retracted) 2390 (7'10") 2390 (7'10") 2390 (7'10") 2390 (7'10")
8 Transport Width (Expanded)
600 mm (24") Shoes 3490 (11'5") 3490 (11'5") 3490 (11'5") 3490 (11'5")
750 mm (30") Shoes 3640 (11'11") 3640 (11'11") 3640 (11'11") 3640 (11'11")
900 mm (36") Shoes 3790 (12'5") 3790 (12'5") 3790 (12'5") 3790 (12'5")
Transport Width (Retracted)
600 mm (24") Shoes 3000 (9'10") 3000 (9'10") 3000 (9'10") 3000 (9'10")
750 mm (30") Shoes 3140 (10'4") 3140 (10'4") 3140 (10'4") 3140 (10'4")
900 mm (36") Shoes 3290 (10'10") 3290 (10'10") 3290 (10'10") 3290 (10'10")
9 Cab Height 3370 (11'1") 3370 (11'1") 3370 (11'1") 3370 (11'1")
Cab Height with Top Guard 3540 (11'7") 3540 (11'7") 3540 (11'7") 3540 (11'7")
10 Counterweight Clearance 1430 (4'8") 1430 (4'8") 1430 (4'8") 1430 (4'8")
