349E L Hydraulic Excavator Specifications

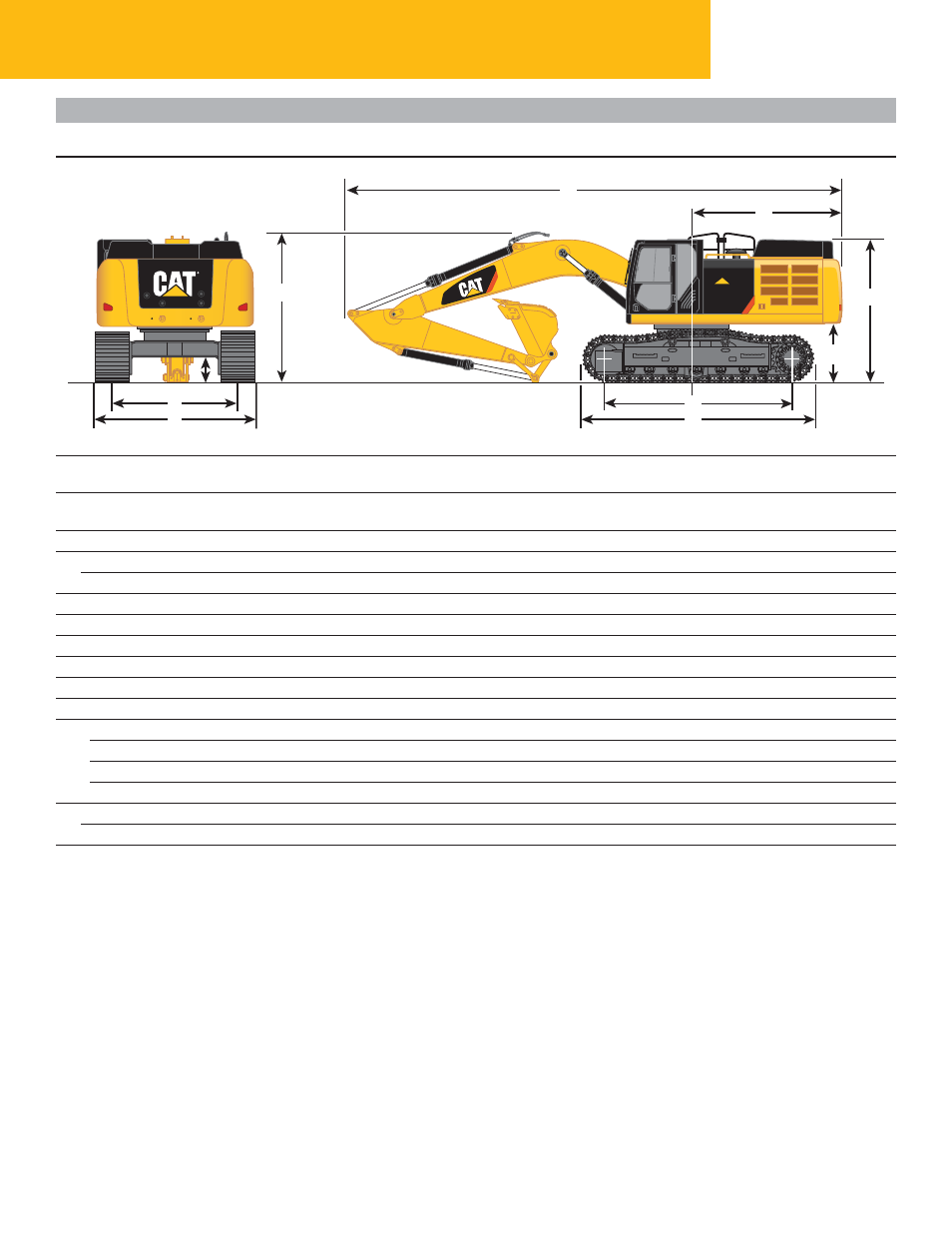

Dimensions – Long FIX Undercarriage
Alldimensionsareapproximate.
2
3
1
9
10
7
6
4
8 5
HD Reach Boom Mass Boom
6.9 m (22'8") 6.55 m (21'6")
Stick R3.9TB R3.35TB M3.0UB M2.5UB
(12'10") (11'0") (9'10") (8'2")
mm (ft) mm (ft) mm (ft) mm (ft)
1 Shipping Height 3670 (12'1") 3730 (12'3") 4020 (13'2") 3980 (13'1")
Shipping Height with Top Guard 3670 (12'1") 3730 (12'3") 4020 (13'2") 3980 (13'1")
2 Shipping Length 11 930 (39'2") 11 920 (39'1") 11 590 (38'0") 11 680 (38'4")
3 Tail Swing Radius 3760 (12'4") 3760 (12'4") 3760 (12'4") 3760 (12'4")
4 Length to Center of Rollers 4360 (14'4") 4360 (14'4") 4360 (14'4") 4360 (14'4")
5 Track Length 5370 (17'7") 5370 (17'7") 5370 (17'7") 5370 (17'7")
6 Ground Clearance (including Shoe Lug Height) 510 (1'8") 510 (1'8") 510 (1'8") 510 (1'8")
7 Track Gauge 2740 (9'0") 2740 (9'0") 2740 (9'0") 2740 (9'0")
8 Transport Width
600 mm (24") Shoes 3340 (11'0") 3340 (11'0") 3340 (11'0") 3340 (11'0")
750 mm (30") Shoes 3490 (11'5") 3490 (11'5") 3490 (11'5") 3490 (11'5")
900 mm (36") Shoes 3640 (11'11") 3640 (11'11") 3640 (11'11") 3640 (11'11")
9 Cab Height 3220 (10'7") 3220 (10'7") 3220 (10'7") 3220 (10'7")
Cab Height with Top Guard 3390 (11'1") 3390 (11'1") 3390 (11'1") 3390 (11'1")
10 Counterweight Clearance 1280 (4'2") 1280 (4'2") 1280 (4'2") 1280 (4'2")
