25

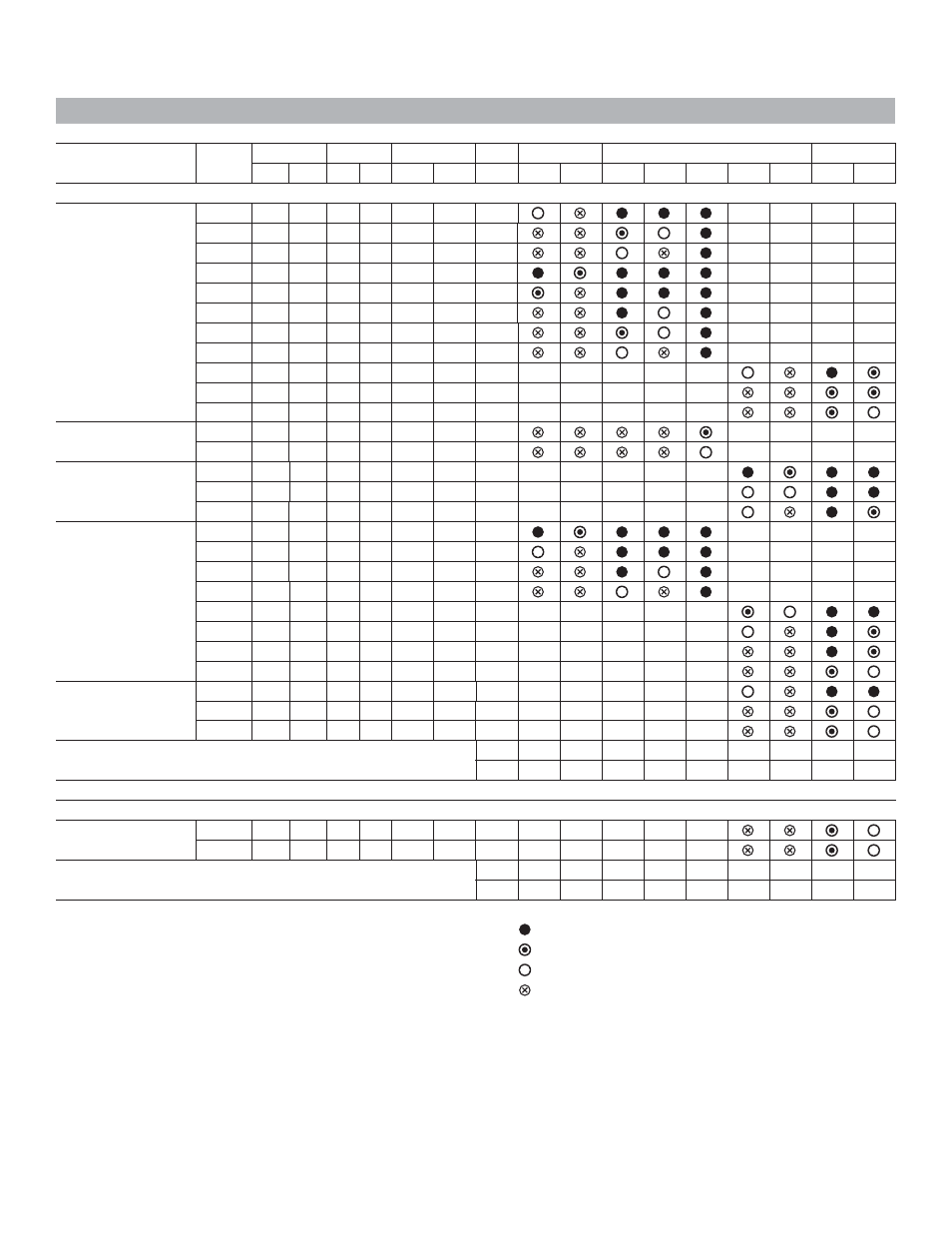

390D L Bucket Specifications and Compatibility – Americas
Linkage
Width Capacity Weight Fill Reach Boom General Purpose Boom ME Boom
mm in m 3 yd 3 kg lb % R4.4HB2 R5.5HB2 R4.4HB2 R5.5HB2 G3.7HB2 G2.9JC G3.4JC M2.9JC M3.4JC
Without Quick Coupler
General Duty (GD) HB2 1350 54 3.0 4.0 3406 7,507 100% – – – –
HB2 1650 66 3.9 5.1 3794 8,362 100% – – – –
HB2 1900 75 4.6 6.0 4155 9,158 100% – – – –
HB2 1100 43 2.2 2.8 2856 6,295 100% – – – –
HB2 1350 54 2.9 3.8 3187 7,024 100% – – – –
HB2 1650 66 3.7 4.9 3650 8,045 100% – – – –
HB2 1900 75 4.3 5.7 3923 8,646 100% – – – –
HB2 2000 79 4.6 6.0 4032 8,887 100% – – – –
JC 2300 91 5.7 7.4 5822 12,832 100% – – – – –
JC 2420 95 6.0 7.9 6004 13,233 100% – – – – –
JC 2575 101 6.5 8.5 6238 13,749 100% – – – – –
General Duty XL (GDXL) HB2 2000 79 5.3 7.0 4400 9,698 100% – – – –
HB2 2250 89 6.0 8.0 4796 10,570 100% – – – –
Heavy Duty (HD) JC 1750 69 4.1 5.3 4799 10,577 100% – – – – –
JC 2090 82 5.1 6.6 5441 11,992 100% – – – – –
JC 2300 91 5.7 7.4 5892 12,986 100% – – – – –
Severe Duty (SD) HB2 1100 43 2.3 3.0 3282 7,234 90% – – – –
HB2 1350 54 3.0 4.0 3736 8,234 90% – – – –
HB2 1650 66 3.9 5.1 4163 9,175 90% – – – –
HB2 1900 75 4.6 6.0 4553 10,035 90% – – – –
JC 1960 77 4.6 6.0 6229 13,729 90% – – – – –
JC 2240 88 5.4 7.1 6809 15,007 90% – – – – –
JC 2350 93 5.7 7.5 7015 15,462 90% – – – – –
JC 2440 96 6.0 7.9 7342 16,182 90% – – – – –
Extreme Duty (XD) JC 2090 82 5.0 6.5 6557 14,452 90% – – – – –
JC 2240 88 5.4 7.1 7733 17,044 90% – – – – –
JC 2350 93 5.7 7.5 7968 17,562 90% – – – – –
Maximum dynamic load pin-on (payload + bucket) kg 7535 6350 10 420 8850 12 530 12 420 11 430 15 850 14 600
lb 16,607 13,995 22,966 19,505 27,616 27,374 25,192 34,933 32,178
With Quick Coupler (CW-70)
Severe Duty (SD) JC 2240 88 5.4 7.1 6559 14,456 90% – – – – –
JC 2350 93 5.7 7.5 6765 14,911 90% – – – – –
Maximum dynamic load with CW coupler (payload + bucket) kg 6115 4930 9000 7430 11 110 11 000 10 010 14 430 13 180
lb 13,477 10,866 19,836 16,376 24,486 24,244 22,062 31,804 29,049
The above figures are based on maximum recommended dynamic working weights
with front linkage fully extended at ground line with bucket curled. They do not
exceed a stability ratio of 1.25.
1800 kg/m 3 (3,000 lb/yd 3 ) or greater
1500 kg/m 3 (2,500 lb/yd 3 ) or less
1200 kg/m 3 (2,000 lb/yd 3 ) or less
Capacity based on ISO 7451. Not Recommended
Bucket weights include HD Long tips.
