Milton CAT 3516C 2000 kW 2500 kVA 60 Hz 1800 rpm 480 Volts Performance Data3 User Manual
Page 4
Selected Model
Engine: 3516
Generator Frame: 826
Genset Rating (kW): 2000.0 Line Voltage: 480
Fuel: Diesel
Generator Arrangement: 2628110 Genset Rating (kVA): 2500.0 Phase Voltage: 277
Frequency: 60
Excitation Type: Permanent Magnet Pwr. Factor: 0.8
Rated Current: 3007.0
Duty: STANDBY Connection: SERIES STAR
Application: EPG
Status: Current
Version: 38699 /38433 /38580 /3636

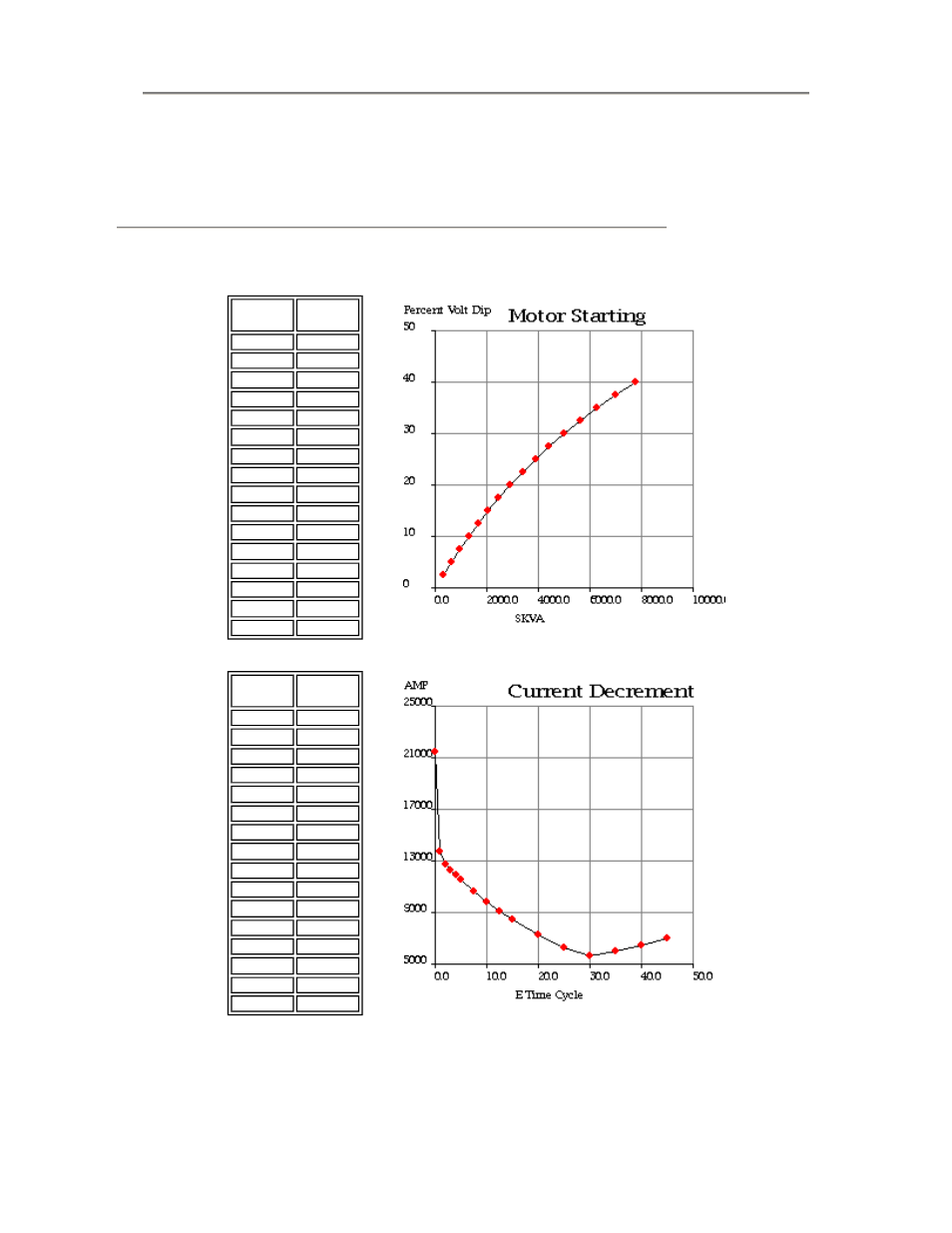

Starting Capability & Current Decrement
Motor Starting Capability (0.4 pf)
SKVA
Percent
Volt Dip
299
2.5
614
5.0
946
7.5
1,296
10.0
1,666
12.5
2,059
15.0
2,474
17.5
2,916
20.0
3,387
22.5
3,888
25.0
4,425
27.5
4,999
30.0
5,617
32.5
6,281
35.0
6,999
37.5
7,777
40.0
Current Decrement Data
E Time
Cycle
AMP
0.0
21,487
1.0
13,737
2.0
12,705
3.0
12,262
4.0
11,879
5.0
11,513
7.5
10,651
10.0
9,861
12.5
9,136
15.0
8,471
20.0
7,301
25.0
6,316
30.0
5,614
35.0
5,973
40.0
6,497
45.0
7,012
Instantaneous 3 Phase Fault Current: 21487 Amps
Instantaneous Line - Line Fault Current: 18949 Amps
Instantaneous Line - Neutral Fault Current: 29765 Amps
Page 4 of 10
Caterpillar Generator Data
05/09/2006
http://tmiweb.cat.com/tmi/servlet/cat.edis.tmiweb.gui.TMIDirector?Action=buildtab&tab...
