Selected Model
Engine: 3516
Generator Frame: 826
Genset Rating (kW): 2000.0 Line Voltage: 480
Fuel: Diesel
Generator Arrangement: 2628110 Genset Rating (kVA): 2500.0 Phase Voltage: 277
Frequency: 60
Excitation Type: Permanent Magnet Pwr. Factor: 0.8
Rated Current: 3007.0
Duty: STANDBY Connection: SERIES STAR
Application: EPG
Status: Current
Version: 38699 /38433 /38580 /3636
Generator Mechanical Information
Center of Gravity
Dimension X -1087.1 mm -42.8 IN.
Dimension Y 0.0 mm
0.0 IN.
Dimension Z 0.0 mm
0.0 IN.
?
"X" is measured from driven end of generator and parallel to rotor. Towards engine
fan is positive. See General Information for details
?
"Y" is measured vertically from rotor center line. Up is positive.
?
"Z" is measured to left and right of rotor center line. To the right is positive.
Generator WT = 4913 kg
* Rotor WT = 1903 kg
* Stator WT = 3010 kg
10,831 LB
4,195 LB
6,636 LB
Rotor Balance = 0.0508 mm deflection PTP
Overspeed Capacity = 150% of synchronous speed

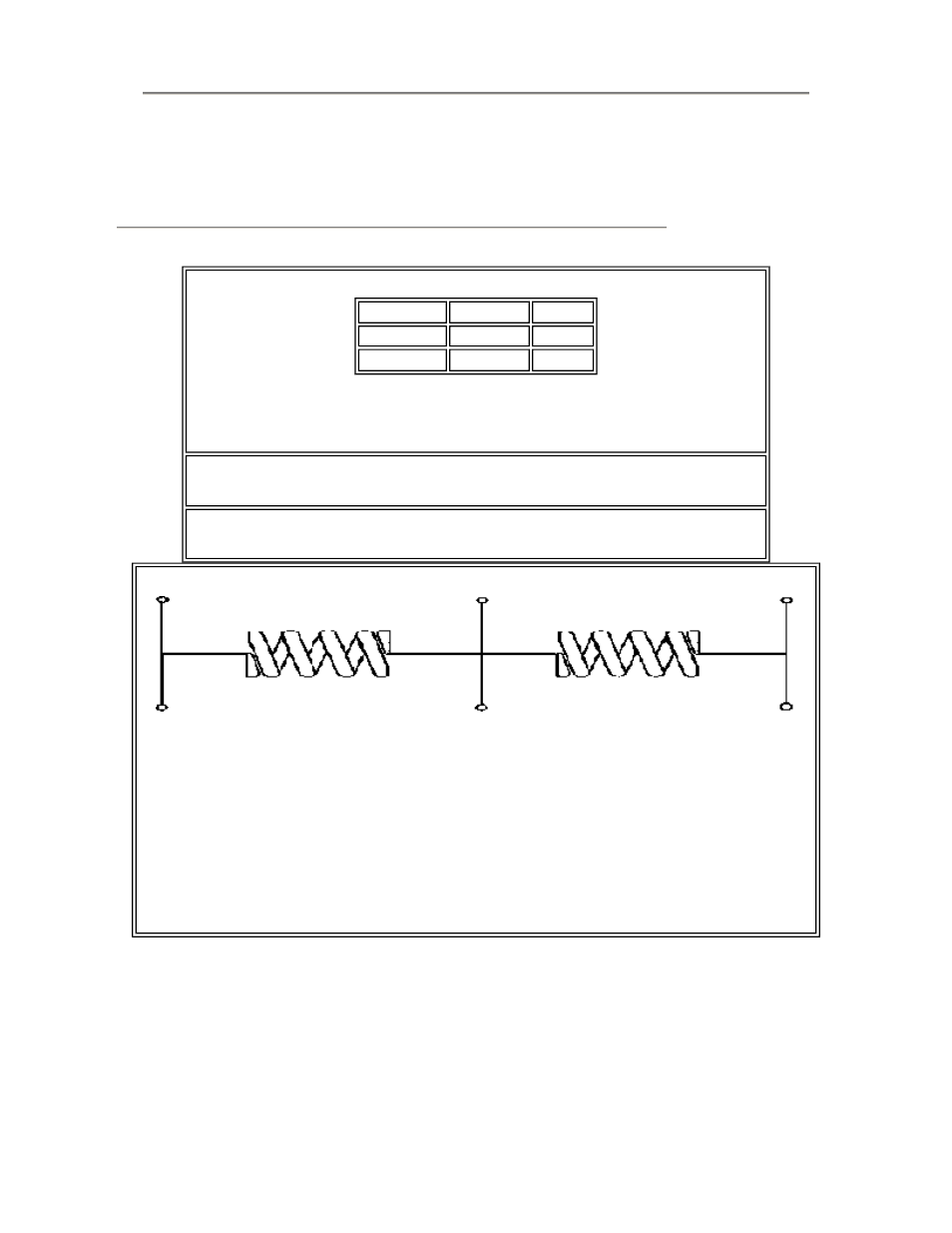

Generator Torsional Data
J1 = Coupling
and Fan
J2 = Rotor
TOTAL J = J1 + J2 + J3
J3 = Exciter
End
K1 = Shaft Stiffness between
J1 + J2 (Diameter 1)
K2 = Shaft Stiffness between
J2 + J3 (Diameter 2)
J1
K1
Min Shaft Dia 1
J2
K2
Min Shaft Dia 2
J3
62.0 LB IN. s
2
56.6 MLB IN./rad
5.0 IN.
713.1 LB IN. s
2
56.6 MLB IN./rad
3.8 IN.
3.3 LB IN. s
2
7.0 N m s
2
6.4 MN m/rad
127.0 mm
80.571 N m s
2
6.4 MN m/rad
96.5 mm
0.371 N m s
2
Total J
778.4 LB IN. s
2
87.942 N m s
2
