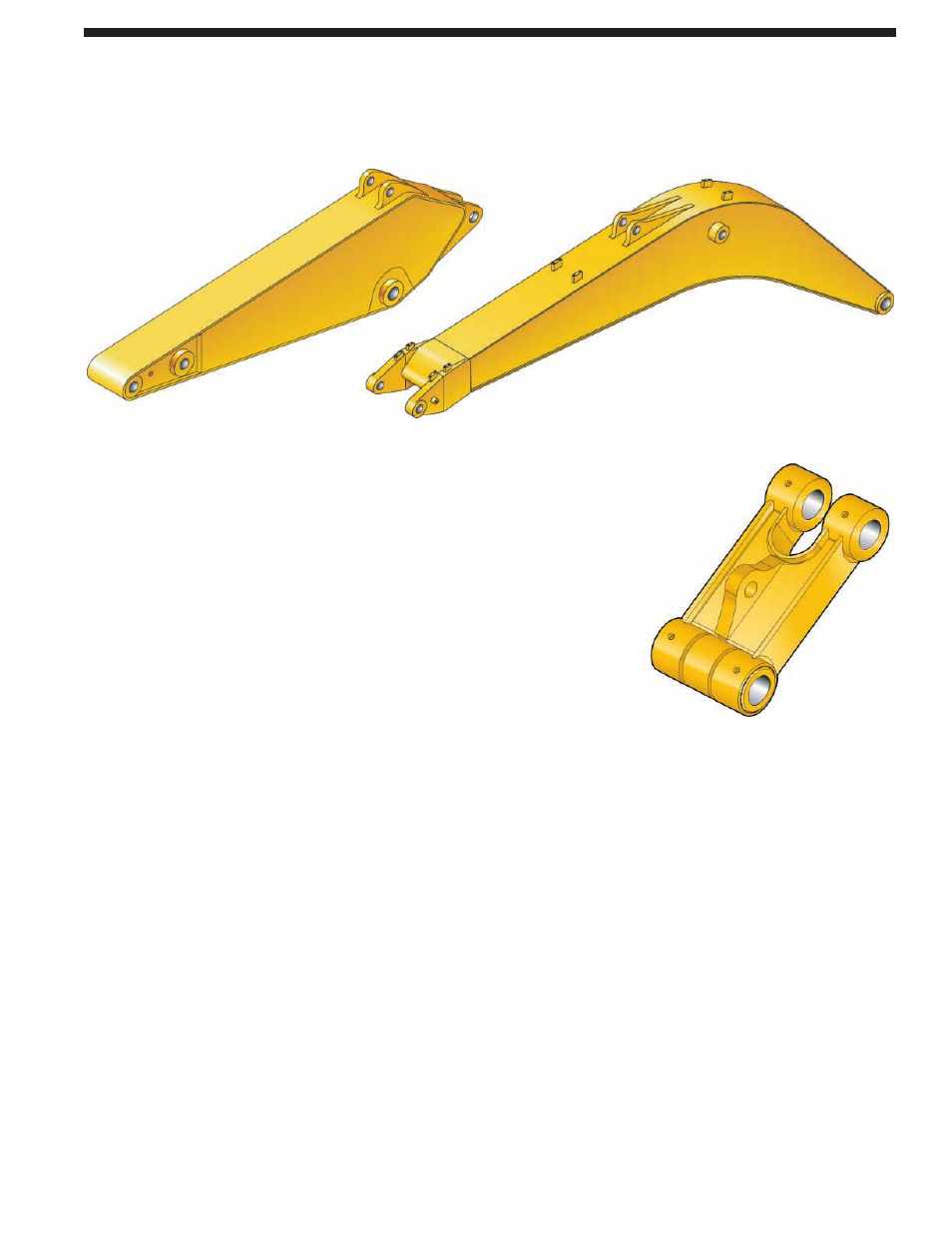

Reach Boom. The reach boom features an
optimum design that maximizes digging
envelopes with two stick choices:
R3.9DB, R3.2DB Sticks
• The DB-family bucket associated
with these sticks have enough
capacity for excellent reach and
depth in trenching and general
construction applications.
Mass Excavation Boom. The mass
excavation boom maximizes productivity.
The mass version offers significantly
higher digging forces and allows use
of larger buckets.
M2.55TB1 Stick
• The TB1 Stick use a TB-family
bucket and were designed for high
volume earth moving, powerful
digging force and a large capacity
bucket. Combined with a Mass boom,
these sticks deliver outstanding
productivity.
Linkage Pins. The bucket linkage pins
have been enlarged to improve reliability
and durability. All the pins in the front
linkages have thick chrome plating,
giving them high wear and corrosion
resistance.
Bucket Linkage. The power link improves
durability, increases machine-lifting
capability in key lifting positions and
is easier to use than compared to the
previous lifting eye.
9
Booms, Sticks and Attachments
Designed for maximum flexibility, productivity and high efficiency on all jobs, the
336D L offers a wide range of configurations suitable for a variety of applications.
