15 336D L Hydraulic Excavator specifications

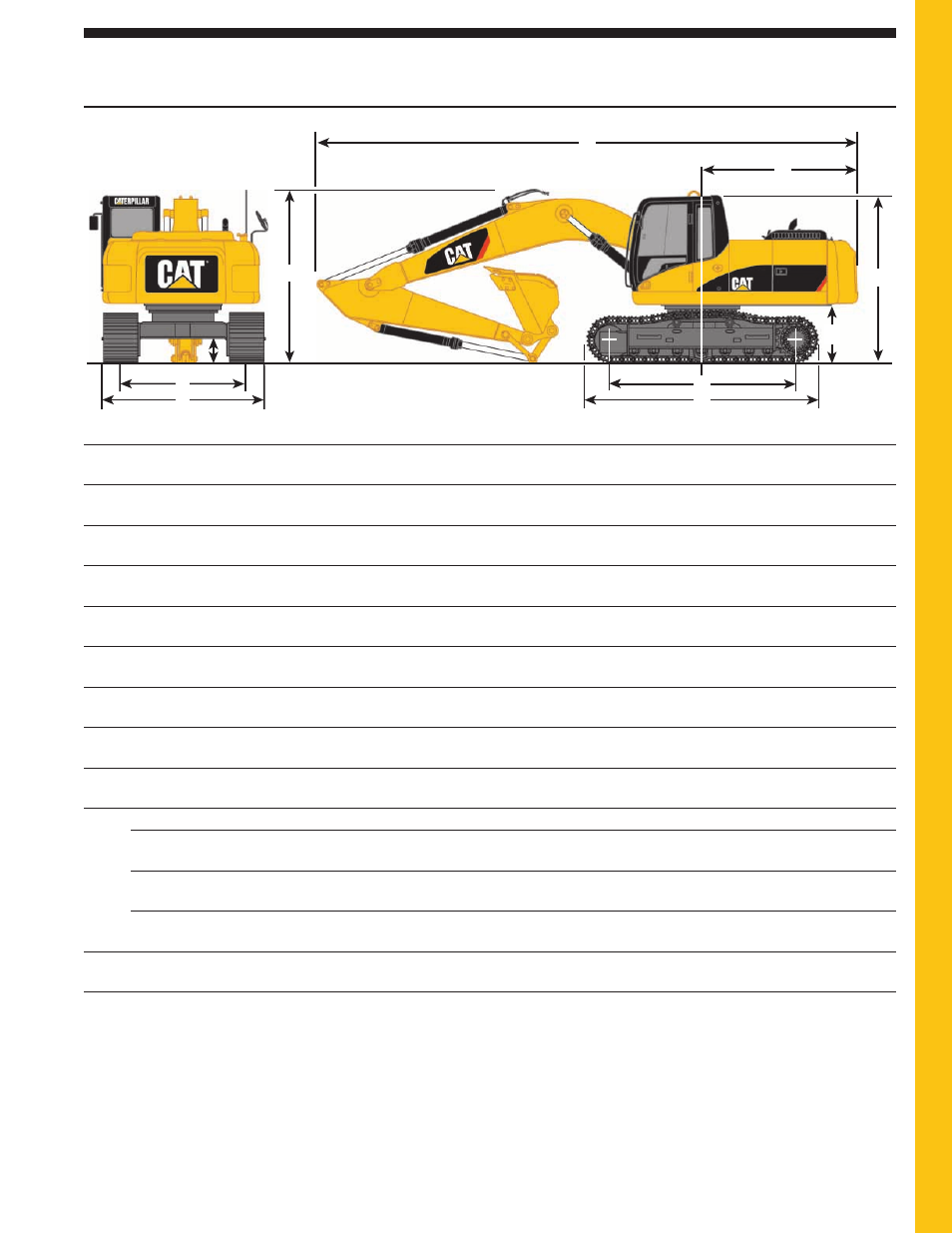

Dimensions
All dimensions are approximate.
Boom Options Reach Boom Mass Boom
6.5 m (21'4") 6.18 m (20'3")
Stick Options R3.9DB R3.2DB M2.55TB1
(12'10") (10'6") (8'4")
1 Shipping height* 3630 mm 3350 mm 3580 mm
(11'11") (11'0") (11'9")
2 Shipping length 11 200 mm 11 150 mm 10 910 mm
(36'9") (36'7") (35'10")
3 Tail swing radius 3500 mm 3500 mm 3500 mm
(11'6") (11'6") (11'6")
4 Length to center of rollers 4040 mm 4040 mm 4040 mm
(13'3") (13'3") (13'3")
5 Track length 5020 mm 5020 mm 5020 mm
(16'6") (16'6") (16'6")
6 Ground clearance** 450 mm 450 mm 450 mm
(1'6") (1'6") (1'6")
7 Track gauge 2590 mm 2590 mm 2590 mm
(8'6") (8'6") (8'6")
8 Transport width
800 mm (32") shoes (standard) 3390 mm 3390 mm 3390 mm
(11'1") (11'1") (11'1")
700 mm (28") shoes (optional) 3290 mm 3290 mm 3290 mm
(10'10") (10'10") (10'10")
850 mm (34") shoes (optional) 3440 mm 3440 mm 3440 mm
(11'3") (11'3") (11'3")
9 Cab height 3140 mm 3140 mm 3140 mm
(10'4") (10'4") (10'4")
10 Counterweight clearance* 1220 mm 1220 mm 1220 mm
(4'0") (4'0") (4'0")
* * Includes 30 mm ( 13 ⁄
16
in) lug height. R3.9 increase to 3700 mm (12'2") with medium pressure and/or drain auxiliary lines.
** Without 30 mm ( 13 ⁄ 16 in) shoe lug height.
