17 988H Wheel Loader specifications
Operating Specifications
Rated Payload 11.4 tonnes 12.5 tons
Operating Weight 49 546 kg 109,249 lb
Rated Payload – Standard 11.4 tonnes 12.5 tons
Transmission
Converter Drive – Forward 1 6.7 kph 4.2 mph
Converter Drive – Forward 2 11.8 kph 7.3 mph
Converter Drive – Forward 3 20.8 kph 12.9 mph
Converter Drive – Forward 4 36 kph 22.3 mph
Converter Drive – Reverse 1 7.6 kph 4.7 mph
Converter Drive – Reverse 2 13.5 kph 8.4 mph
Converter Drive – Reverse 3 23.7 kph 14.7 mph
Direct Drive – Forward 1 Lock-up disabled
Direct Drive – Forward 2 12.3 kph 7.7 mph
Direct Drive – Forward 3 21.9 kph 13.6 mph
Direct Drive – Forward 4 38.6 kph 24 mph
Direct Drive – Reverse 1 7.9 kph 4.9 mph
Direct Drive – Reverse 2 14.1 kph 8.8 mph
Direct Drive – Reverse 3 25.1 kph 15.6 mph
• Travel speeds based on two percent rolling resistance
and 35/65-33 tires.
Hydraulic Cycle Time
Raise 9.4 Seconds
Dump 2.4 Seconds
Lower Float Down (Empty) 3.8 Seconds
Total Hydraulic Cycle Time 15.6 Seconds
Service Refill Capacities
Fuel Tank 712 L 188 gal
Cooling System 103 L 27.2 gal
Crankcase 60 L 15.9 gal
Transmission 70 L 18.5 gal
Differentials and Final Drives 186 L 49 gal
– Front
Differentials and Final Drives 186 L 49 gal
– Rear
Hydraulic System (factory fill) 470 L 124.2 gal
Hydraulic System (tank only) 267 L 70.5 gal
Buckets
Bucket Capacities 6.3 m 3 –7.0 m 3 8.2 yd 3 –9.2 yd 3
Max. Bucket Capacity 7 m 3 9.2 yd 3
Engine
Engine Model Cat C18 ACERT ®
Gross Power 414 kW 555 hp
Flywheel Power 373 kW 501 hp
Net Power – EEC 80/1269 373 kW 501 hp
Net Power – ISO 9249 373 kW 501 hp
Gross Power – ISO 3046-2 388 kW 520 hp
Bore 145 mm 5.7 in
Stroke 183 mm 7.2 in
Displacement 18.1 L 1,104.5 in 3
• These ratings apply at 1,800 rpm when tested under the
specific standard conditions for the specified standard.
• Power rating conditions based on standard air conditions
of 25° C (77° F) and 99 kPa (29.32 in Hg) dry barometer,
using 35° API gravity fuel having an LHV of 42 780 kJ/kg
(18,390 Btu/lb) when used at 30° C (86° F) [reference a fuel
density of 838.9 g/L (7.001 lb/gal)].
• Net power advertised is the power available when the
engine is equipped with alternator, air cleaner, muffler
and hydraulic fan drive.
• No derating required up to 3048 m (10,000 ft) altitude.
• Direct-electric, 24-volt starting system with 100 amp
alternator and four high performance maintenance-free
batteries with 1,000 cold cranking amps.

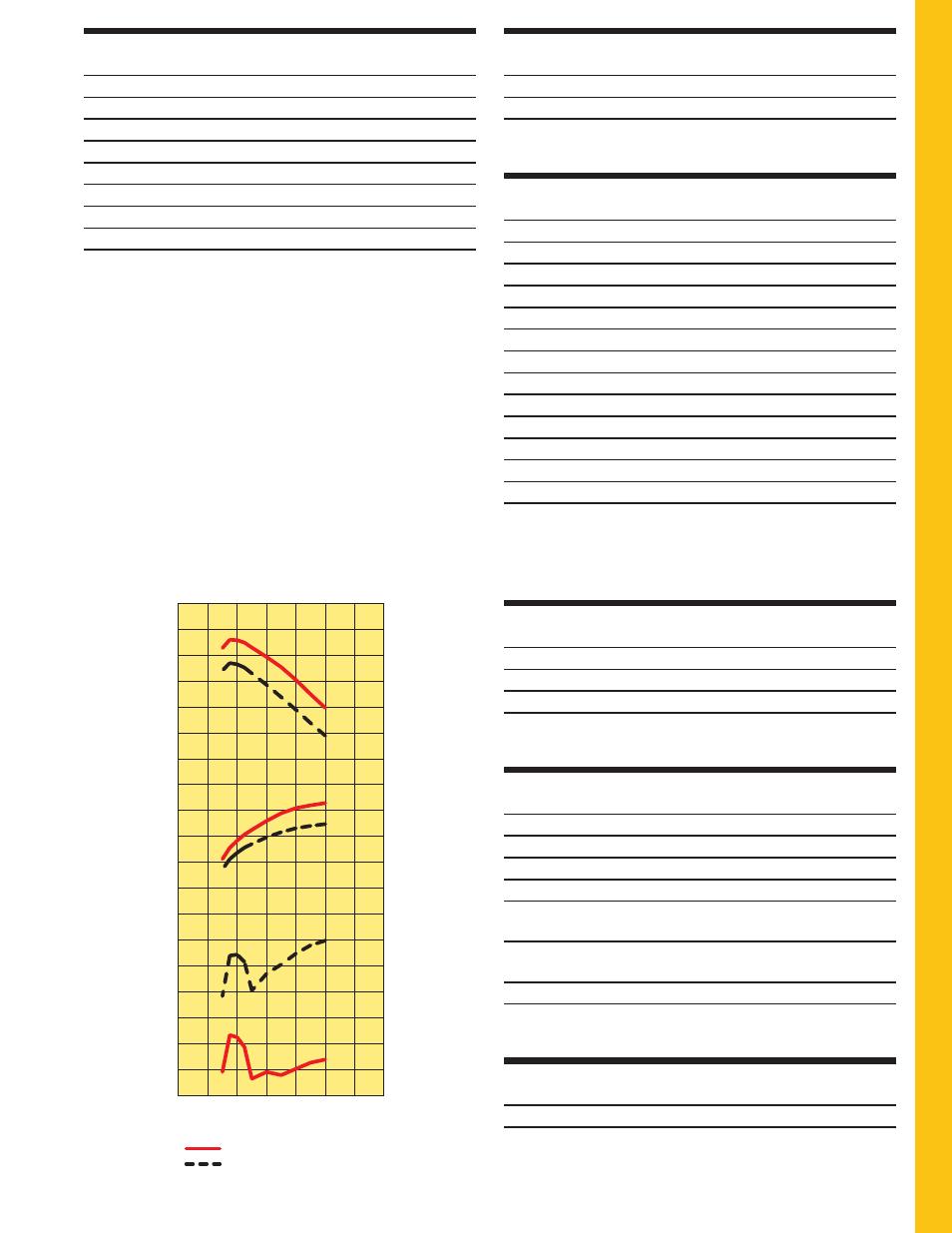

Gross
Net
1600 1800 2000 1400 1000 1200
3000 2213
2066
1919
1771
1624
1476
1328
2800
2600
2400
2200
2000
1800
450
400
350
300
250
200
235
230
220
225
215
210
205
Engine Speed (RPM)
603
536
469
402
335
268
0.385
0.377
0.369
0.361
0.344
0.353
0.336
Engine Power (Bhp)
Engine Torque (ft
•
lb)
Engine Torque (N
•
m)
Engine Power (kW)
BSFC (lb/Bhp-hr) BSFC (gm/kW-hr)
