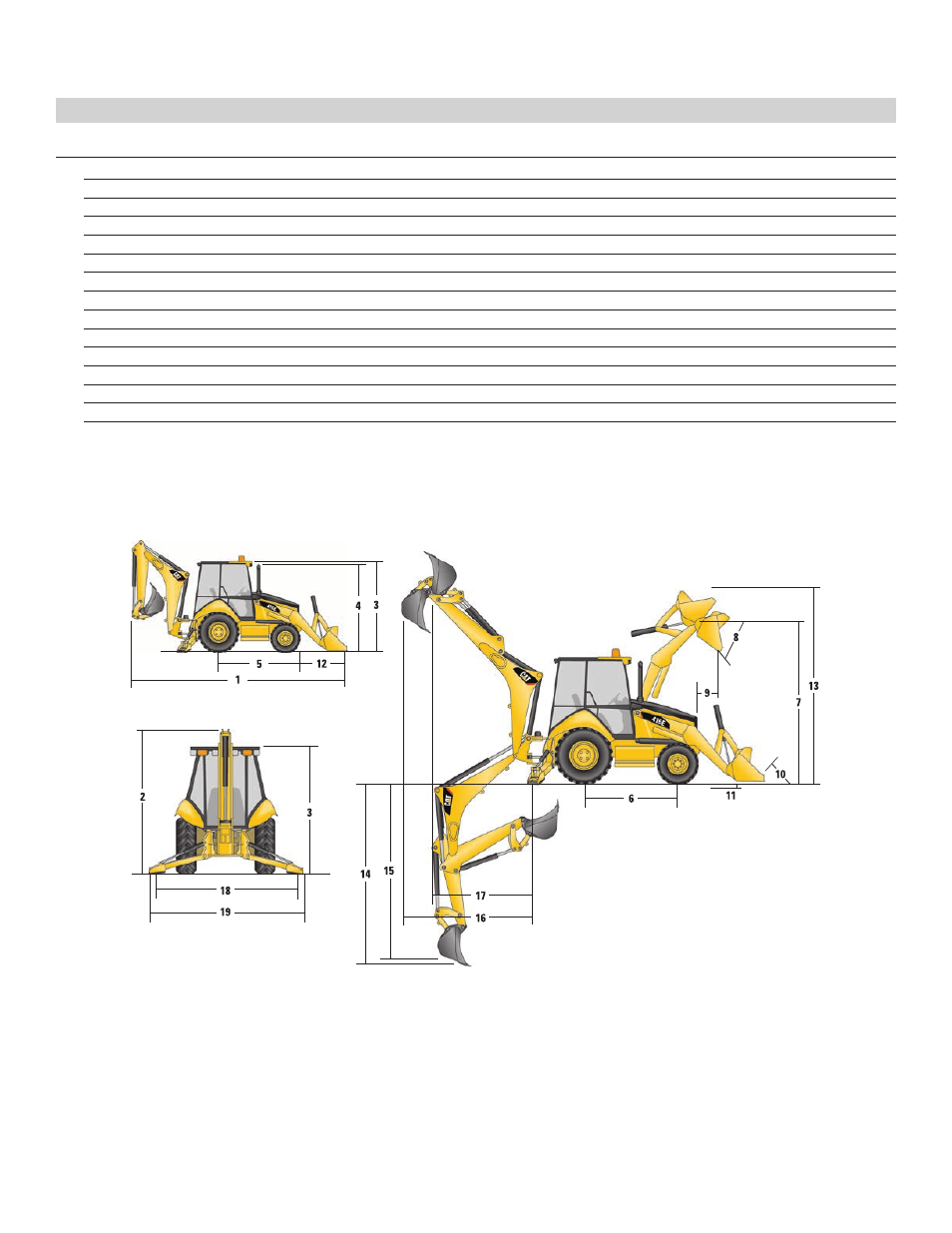

Backhoe Dimensions and Performance
Standard Stick Extendible Stick Retracted Extendible Stick Extended
(14) Digging depth, SAE (max.) 4360 mm 14 ft 4 in 4402 mm 14 ft 5 in 5456 mm 17 ft 11 in
(15) Digging depth, 610 mm (2 ft) flat bottom 4321 mm 14 ft 2 in 4363 mm 14 ft 4 in 5420 mm 17 ft 10 in
Reach from rear axle centerline at ground line 6721 mm 22 ft 1 in 6760 mm 22 ft 2 in 7769 mm 25 ft 6 in
(16) Reach from swing pivot at ground line 5618 mm 18 ft 5 in 5657 mm 18 ft 7 in 6666 mm 21 ft 10 in
Maximum operating height 5523 mm 18 ft 1 in 5555 mm 18 ft 3 in 6302 mm 20 ft 8 in
Loading height 3636 mm 11 ft 11 in 3577 mm 11 ft 9 in 4145 mm 13 ft 7 in
(17) Loading reach 1768 mm 5 ft 10 in 1868 mm 6 ft 2 in 2771 mm 9 ft 1 in
Swing arc 180° 180° 180°
Bucket rotation 205° 205° 205°
(18) Stabilizer spread, operating position (center) 3310 mm 10 ft 10 in 3310 mm 10 ft 10 in 3310 mm 10 ft 10 in
(19) Stabilizer spread, operating position (outside) 3770 mm 12 ft 4 in 3770 mm 12 ft 4 in 3770 mm 12 ft 4 in
Stabilizer spread, transport position 2322 mm 7 ft 7 in 2322 mm 7 ft 7 in 2322 mm 7 ft 7 in
Bucket dig force 51.8 kN 11,655 lb 51.1 kN 11,491 lb 51.1 kN 11,491 lb
Stick dig force 31.8 kN 7,151 lb 31.8 kN 7,151 lb 23.4 kN 5,250 lb
Dimensions and performance specifi cations shown are for machines equipped with 12.5/80-18 SGL front tires, 19.5L-24 IT525 rear tires, ROPS canopy, standard stick with
610 mm (24 inch) standard-duty bucket, and 0.76 m 3 (1.0 yd 3 ) loader bucket and standard equipment unless otherwise specifi ed.
Single Tilt Loader
