Nozzle Positioning

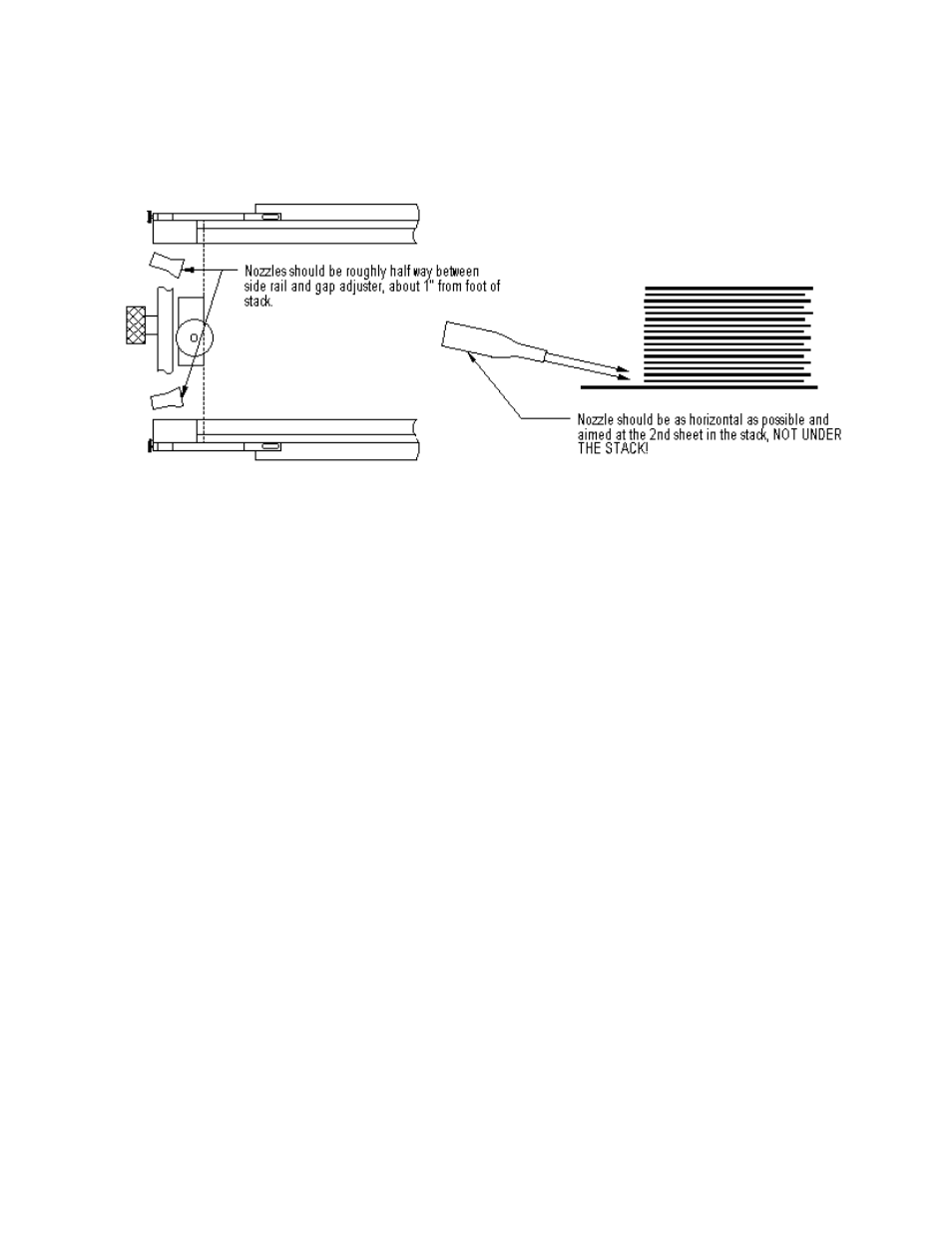

• The nozzles should be positioned according to the following diagram
• Note: Very wide stock will require the nozzles to be closer to the feed finger than the side
rails.
Vacuum/Blower Adjustments
• Switch the pump on by turning on the switch located on the STAND (below air feed table on
operator side)
• Turn the vacuum all the way down ( CCW )
• While turning the hand wheel, slowly increase the vacuum till a sheet(s) moves out from
under the stack approximately ½”
• If more than one sheet has started to move, adjust front nozzles till the extra sheets float
back into the stack.
• The feeder should now be ready to run
3.3 Optional Conveyor Out Feed
The conveyor out feed tray sits in the machine in the same fashion as the exit tray. Make
sure that the spur gears mesh. Do not force the conveyor out feed plate into position. The
pile tray is mounted on the end of the conveyor out feed plate, with two Phillips screws and
acts as a backstop for the finished stock.
