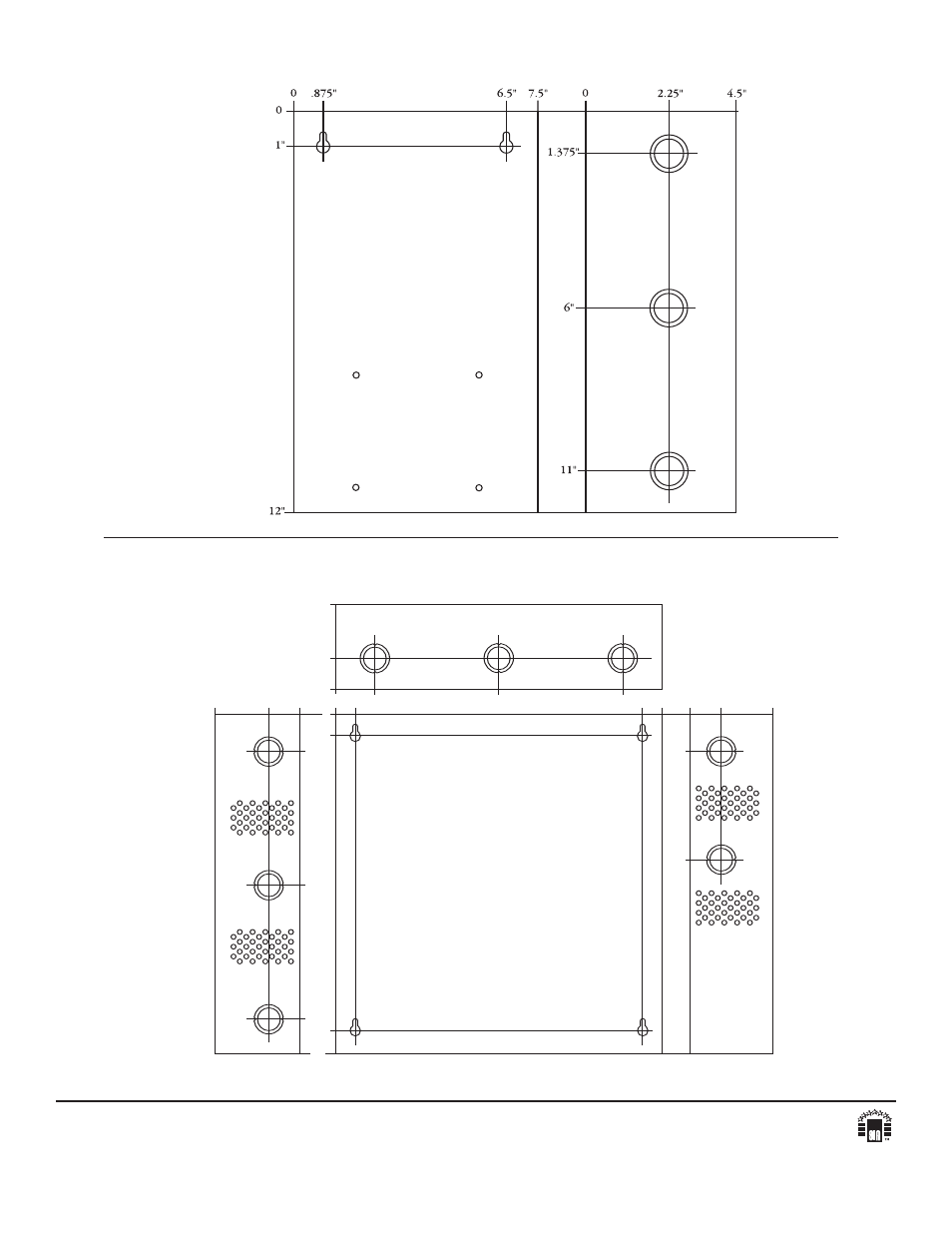

Enclosure Dimensions for:
• ALTV248600
• ALTV248600CB
13"H x 13.5"W x 3.25"D
Enclosure Dimensions for:
• ALTV248300
• ALTV248300CB
12.25"H x 7.75"W x 4.5"D
