Altronix ALTV248 Series Installation Instructions - Manual (Page 7)

- 7 -
TOP ONLY

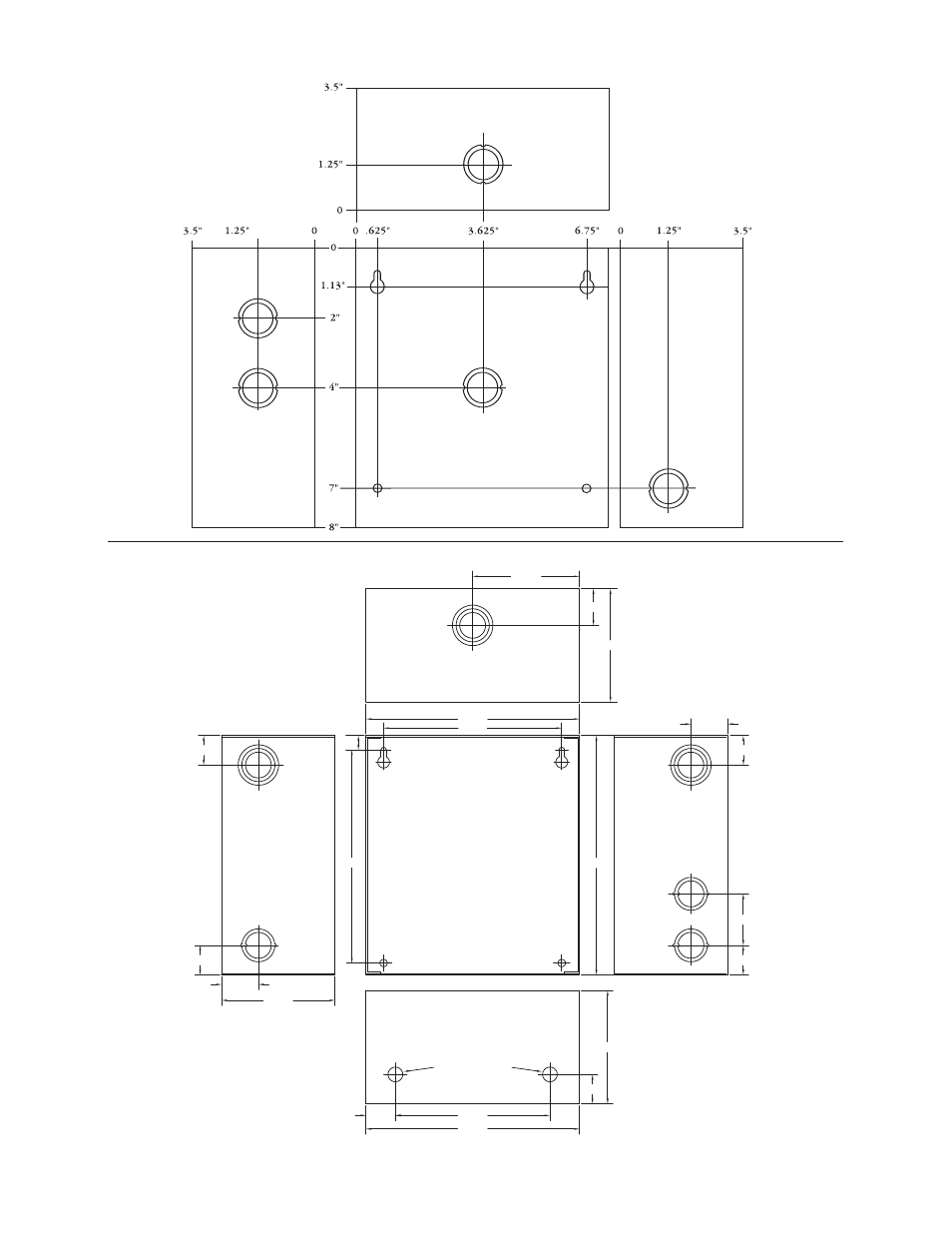

Enclosure Dimensions for:
• ALTV248
• ALTV248CB
• ALTV248175
• ALTV248175CB
8.5"H x 7.5"W x 3.5"D
Enclosure Dimensions for:
• ALTV248300M
• ALTV248300CBM
8.5"H x 7.5"W x 3.75"D
0.50”
6.05”
7.25”
3.85”
1.25”
3.625”
6.825” 8.125”
1.25”
1.00”
1.00”
1.00”
1.00”
1.00”
1.00”
5.25”
1.25”
7.25”
3.85”
3.85”
1.75”
Access for Linecord
