6. Connect two (2) 12V Stand-by batteries.
Note: For Access Control applications batteries are optional. When batteries are not used a loss of AC will result in
the loss of output voltage. Batteries must be lead acid or gel type if used. Two (2) 12V Stand-by batteries
connected in series to terminals marked [+ BAT --] (Fig. 1 , pg. 3).
7. It is required connect supervisory trouble reporting devices to outputs marked [AC FAIL, LOW BAT] (Fig. 1 , pg. 3).
Use 22 AWG to 18 AWG for AC Fail & Low Battery reporting. AC Failure will report in 5 minutes.
+
DC
---
AL600ULXB
ALTRONIX CORP.
BKLYN, N.Y. 11220
MADE IN USA
BAT FAIL NC C NO NC C NO
+ BAT
---
DC 24V - OPEN 12V - CLOSED
AC FAIL L G N
AC
BAT
Battery and AC Supervision Circuit (power limited). Use separate
knockout. Keep 1/4" away from non power limited wiring
CAUTION: De-energize unit prior to servicing. For continued protection
against fire hazard replace fuse with the same type and rating 3.5A, 250V.
Replace fuse cover before energizing.
Battery 1 Battery 2
Battery connection (non power limited)
Switch Position:
24VDC = SW1 OPEN
12VDC = SW1 CLOSED
115 power mains
(non power limited)
Door
Wire Strap
(from
Enclosure
to Door)
ALX3B
ALTRONIX CORP.
BKLYN, NY 11220 MADE IN U.S.A.
+ OUT2 --- + OUT3 --- + OUT1 ---
+ INPUT1 ---

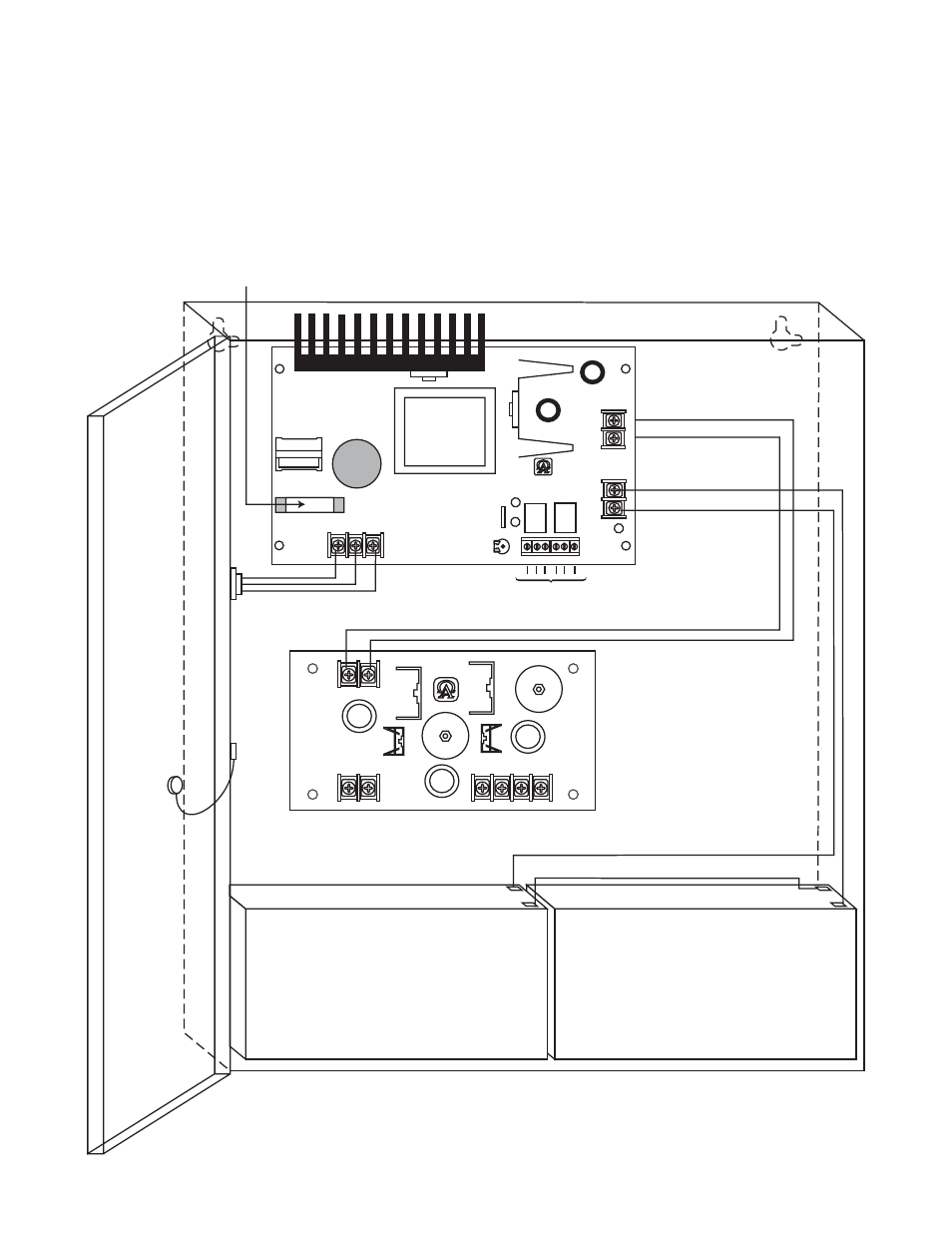

Fig. 1
