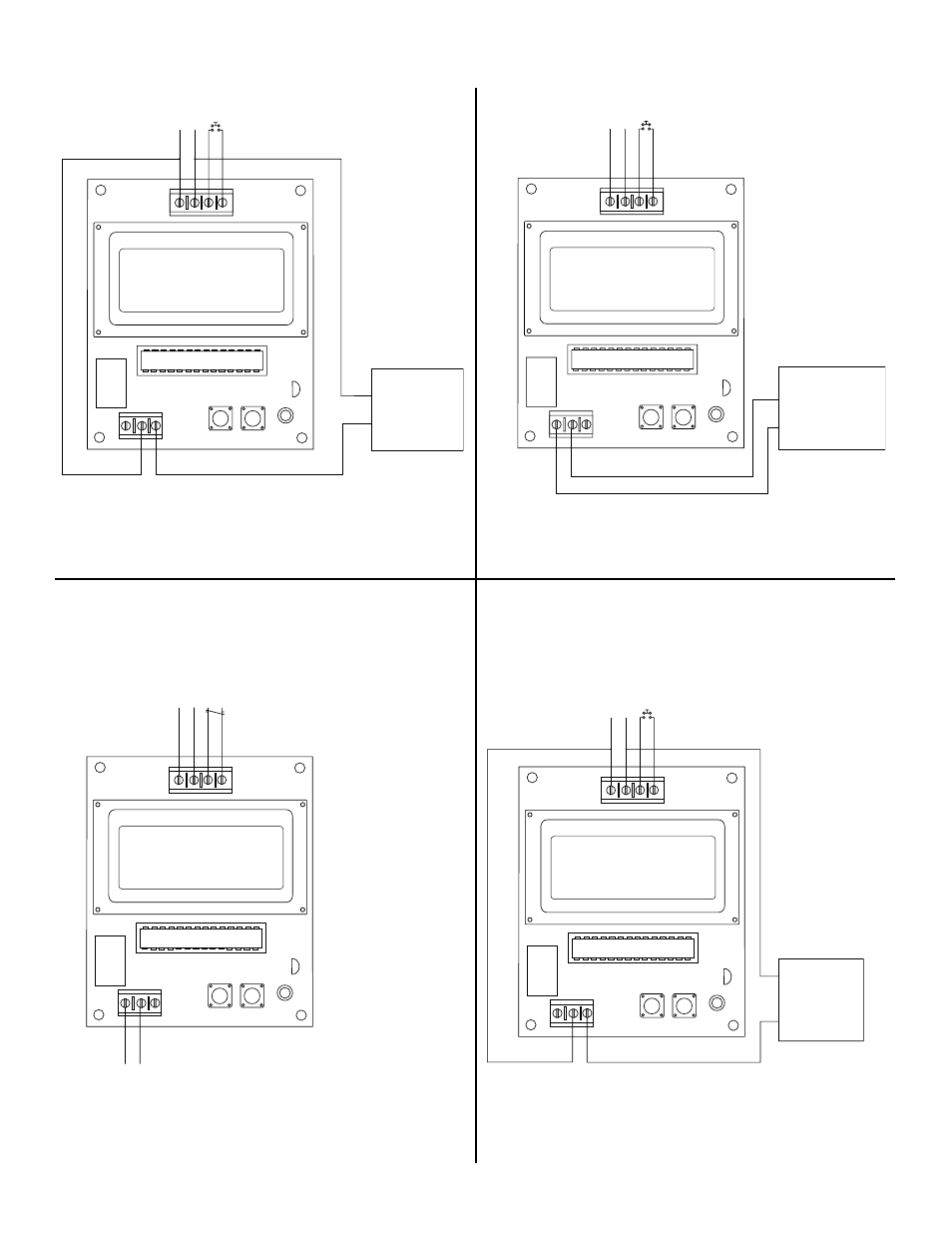

Tempo2 Typical Applications:
Fig. 1 - Timed Door Annunciator:
Dry
relay
output
Advance
C NC NO
POWER
12-24
VDC/VAC
Dry
Trigger
IN1
Confirm
Normally open
door contacts
+ ---
CHIME
--
+
For this application select Trigger “CHG” and Relay
“PULSE”.
Fig. 2 - Guard Tour Supervisory Timer:
Dry
relay
output
Advance
C NC NO
POWER
12-24
VDC/VAC
Dry
Trigger
IN1
Confirm
DIALER OR
TRANSMITTER
+ ---
Normally open
switch contacts
For this application select Trigger “CHG” and
Relay “OFF”.
Dry
relay
output
Advance
C NC NO
POWER
12-24
VDC/VAC
Dry
Trigger
IN1
Confirm
+ ---
Protective circuit
To closed circuit
zone on
control panel
For this application select Trigger “OFF”, Relay “ON”.
Fig. 4 - Delay Timer: Use for Door Ajar Alarm, Delayed
Activation of Digital Dialer,
Defrost Cycle Timer, etc...
Dry
relay
output
Advance
C NC NO
POWER
12-24
VDC/VAC
Dry
Trigger
IN1
Confirm
Normally open or
normally closed
switch contacts
SOUNDER
--
+
+ ---
For Normally Closed Trigger Contact select
Trigger “OFF”, Relay “ON”.
For Normally Open Trigger Contact select
Trigger “ON”, Relay “ON”.
Fig. 3 - Swinger Eliminator:
