- 4 - eBridge1CRT

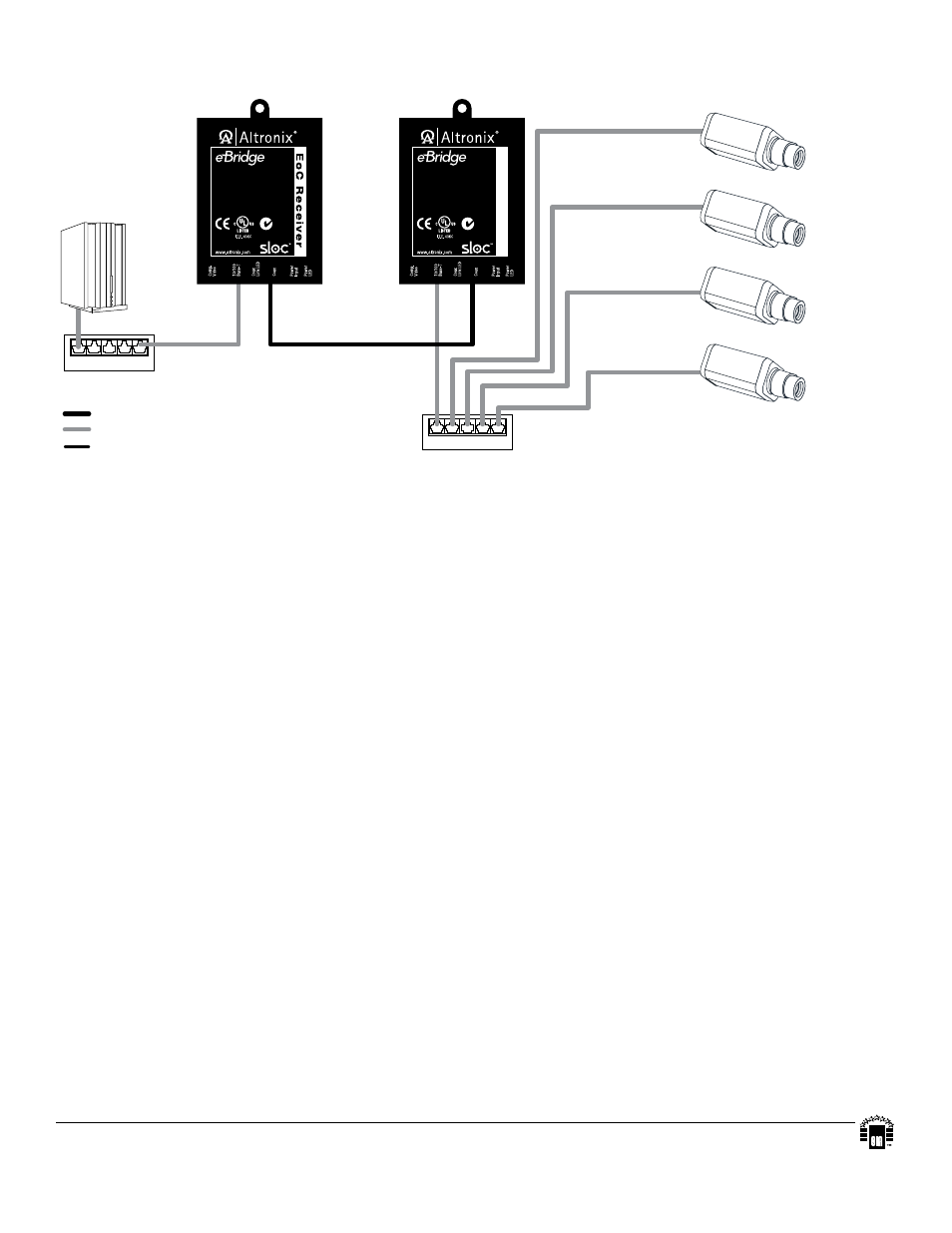

Multiple IP cameras over a single Coax:
Fig. 4
*Note: Multiple cameras require higher bandwidth and headend equipment processing speed. It is advised to test this
configuration. EBridge is rated to pass 25mbps of data at distances up to 1500 ft. With proper headend equipment,
multiple Megapixel cameras can be used.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIeBridge1CRT
G06L MEMBER
Up to
328 ft.
Up to
328 ft.
Up to
328 ft.
Up to
328 ft.
Up to
328 ft.
Up to
328 ft.
Ethernet Switch
Ethernet Switch
Up to
1500 ft.
Coax
Structured Cable
Power Connection IP Camera*
IP Camera*
IP Camera*
IP Camera*
eBridge1CR eBridge1CT
NVR Network
Video Server
(Head End
Equipment)
* External power
required for cameras
Z1409 Z1409
eBridge1CR
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
eBridge1CT
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
EoC
Tr
a
nsceiver
