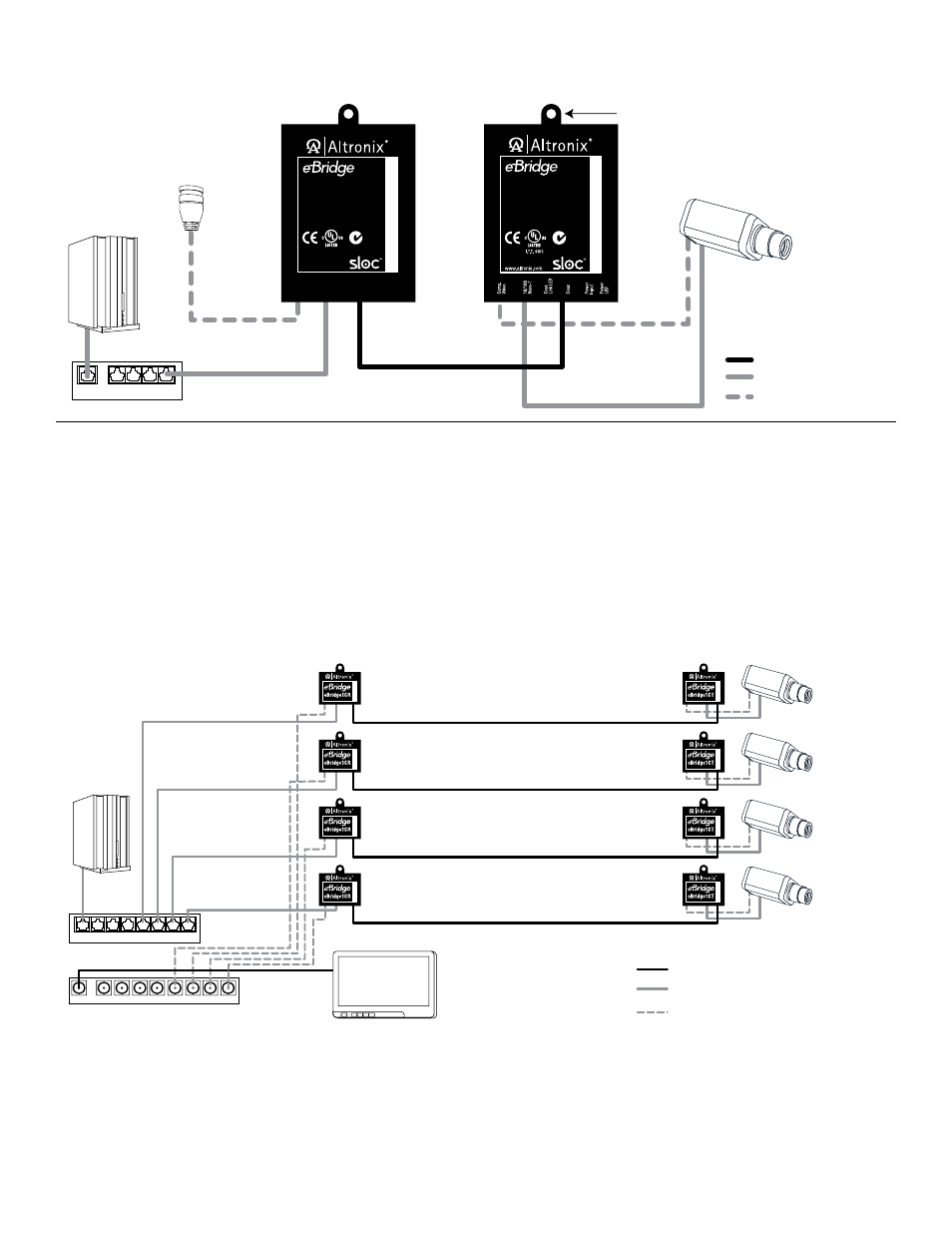

Single IP camera shown with composite video option:
Fig. 2 Fig. 2a
Solutions and Installation Notes:
Currently Matrix Switchers, DVRs and NVRs do not readily accommodate multi-picture (Matrix) monitor display
capability (typically 4X4 – 16 channel display) for some of the higher resolution cameras. In addition HD cameras use
a wide screen format (16:9 aspect ratio). This may not fit as well into the matrix display as the standard screen format
(4:3 aspect ratio). In addition high resolution multichannel recording can introduce unacceptable latency in the real-time
monitor display.
To achieve high resolution recording along with real-time multi-channel viewing: Record the high resolution IP video via
the NVR and the simultaneous composite video via the Matrix switcher to achieve proper display format (Fig. 3, pg. 3).
Multiple IP cameras shown with composite video option:
Fig. 3
Up to 328 ft.
Up to 328 ft.
Ethernet Switch
Up to
1500 ft.
Coax
Structured Cable
Composite Video Cable
Mounting Hole
IP Camera
(external power
required).
eBridge1CT eBridge1CR
NVR Network
Video Server
(Head End
Equipment)
Comp. Video
Cable
To Monitor
Composite
Video
Cable
Z1409
www.altronix.com
I.T.E. 43KC
Z1409
eBridge1CR
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
Coax Link LED Coax 10/100 Base-T Comp
.
Vide
o
Po
we
r
LE
D
Po
we
r
Input
EoC Receiver
EoC
Tr
a
nsceiver
eBridge1CT
Input: 12VDC/275mA, 24VDC/110mA,
16VAC/375mA, 24VAC/200mA.
Blue LED Coax link status.
RJ45 LEDs Yellow - Speed
Green - Activity
Green LED Power
IP Camera*
Ethernet Switch
Matrix Switch
Coax
Structured Cable
Composite Video Cable
* External power
required for
cameras
Monitor
Up to 1500 ft.
Up to 1500 ft.
Up to 1500 ft.
Up to 1500 ft.
NVR Network
Video Server
(Head End
Equipment)
IP Camera*
IP Camera*
IP Camera*
