- 4 -

eBridge16PCRX

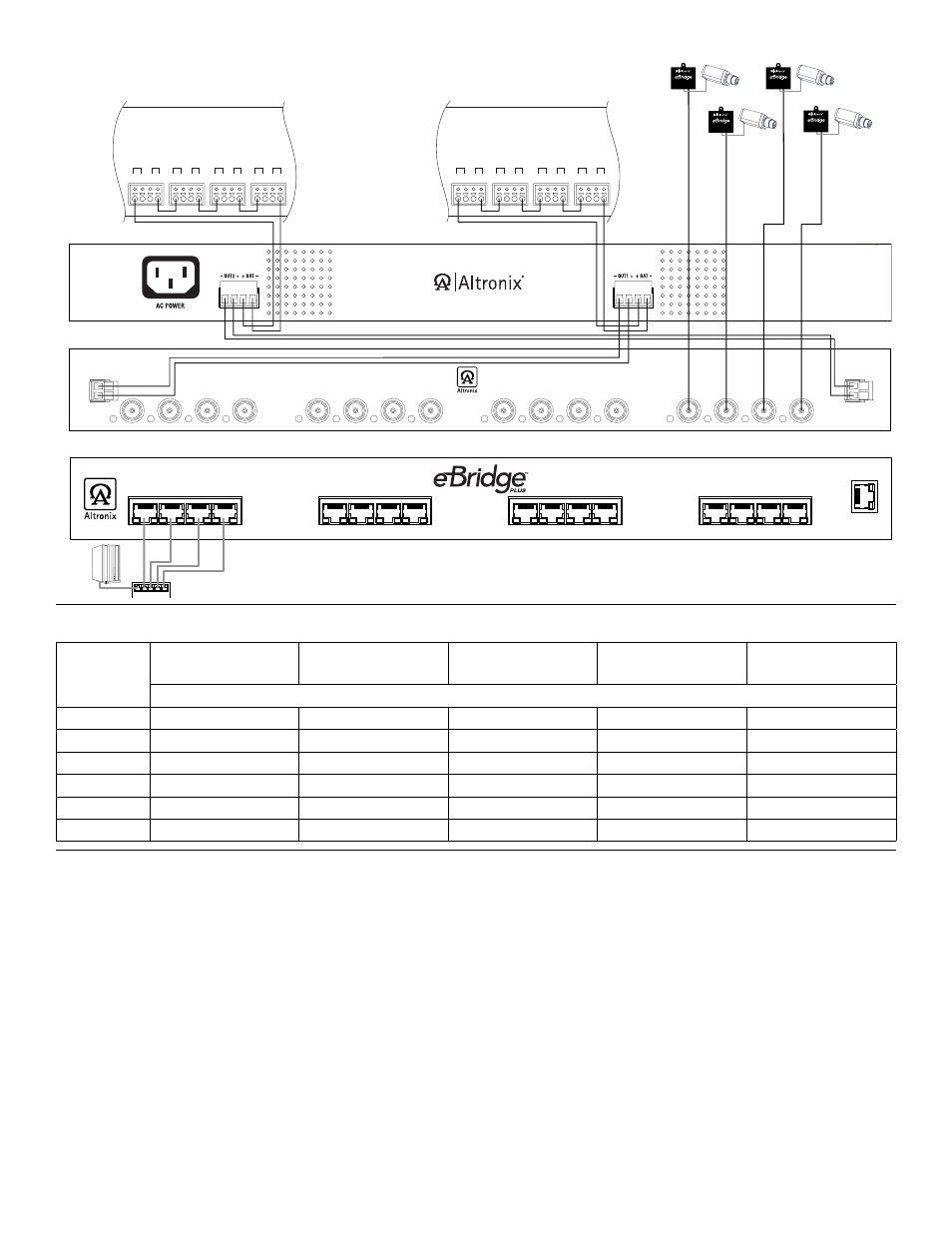

Single IP camera:

Fig. 2

Maximum Length of Coax Type vs. Camera Power/PoE Class:

Camera

Power/

PoE Class

RG59/U

(23AWG)

RG59/U

(22AWG)

RG59/U

(20AWG)

RG59/U

(18AWG)

RG6/U

(18AWG)

Max. Length (ft./meters)

13W/0

855’/260.64m

1,100’/335.28m

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

4W/1

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

6.5W/2

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

13W/3

855’/260.64m

1,100’/335.28m

1,500’+/457.20m+

1,500’+/457.20m+

1,500’+/457.20m+

19W

500’/260.64m

650’/335.28m

1035’/457.20m+

1,500’/457.20m+

1,500’/457.20m+

25W

390’/260.64m

494’/335.28m

785’/457.20m+

1,200’/457.20m+

1,200’/457.20m+

eBridge16PCRX User Interface and Programming:

Note: A constant PC connection is not required for proper operations and is used as a local programming/monitoring tool only.

Step 1. Set Local Area Connection of your laptop to DHCP mode.

For Windows XP:

a. Open Network Connections by clicking

Start button, then clicking Settings, then clicking Network Connections.

b. Right click the

Local Area Connection. Click Properties. Administrator permission required

If you are prompted for an administrator password or confirmation, type the password or provide confirmation.

c. Double click

Internet Protocol (TCP/IP) menu item.

d. Choose the

Obtain an IP address automatically option.

e. Click

OK. Close all windows.

For Windows Vista:

a. Open Network Connections by clicking the

Start button Picture of the Start button, clicking Control Panel,

clicking

Network and Internet, clicking Network and Sharing Center, and then clicking Manage Network

connections.

b. Right click the

Local Area Connection icon, and then click Properties. Administrator permission required

If you are prompted for an administrator password or confirmation, type the password or provide confirmation.
