Installation
Camera mounting
Installation shall be conducted after turning off each device.
z
Detach the dome cover. (☞ Page 18)
x
Connect the cables to the camera. (☞ Pages 23 to 27)
As necessary, use a cable tie (accessory) to assemble the cables.
c

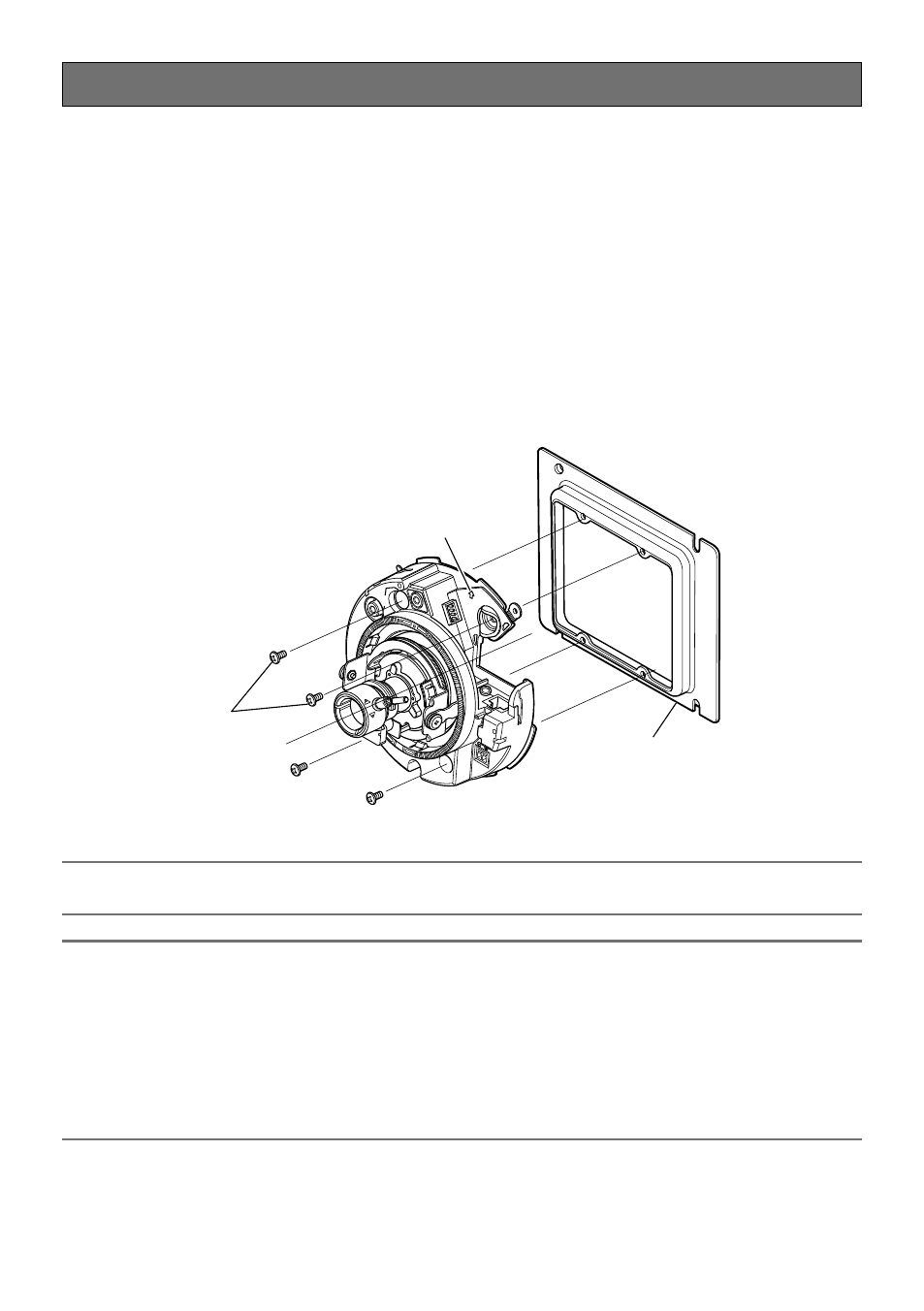

Mount the camera. (The illustration represents the case in which a two-gang junction box is
installed.)
• Fix the camera with 4 screws (M4, locally procured)
FRONT
TOP EXT I/O
AUDIO
OUT
MIC
LINE IN
10BAS
100BA
12V=IN
4
2
3
1
MONITOR
OUT
N
F
Direction marker for installation
Two-gang junction box
Screws
(locally procured)
Important:
• When tightening the screws, be careful to ensure that the cables does not tangle the cables.
Note:
• For ceiling mounting
"gFRONT" of direction marker for installation indicates the center of panning. Adjustment of
lens direction will become easier when the camera is mounted with the "gFRONT" marker ori-
ented to the desired shooting area. Refer to the "Adjustment" section (☞ pages 29 to 33) for
further information about adjustment.
• For wall mounting
The camera shall be mounted with the "gFRONT" marker facing upward.
