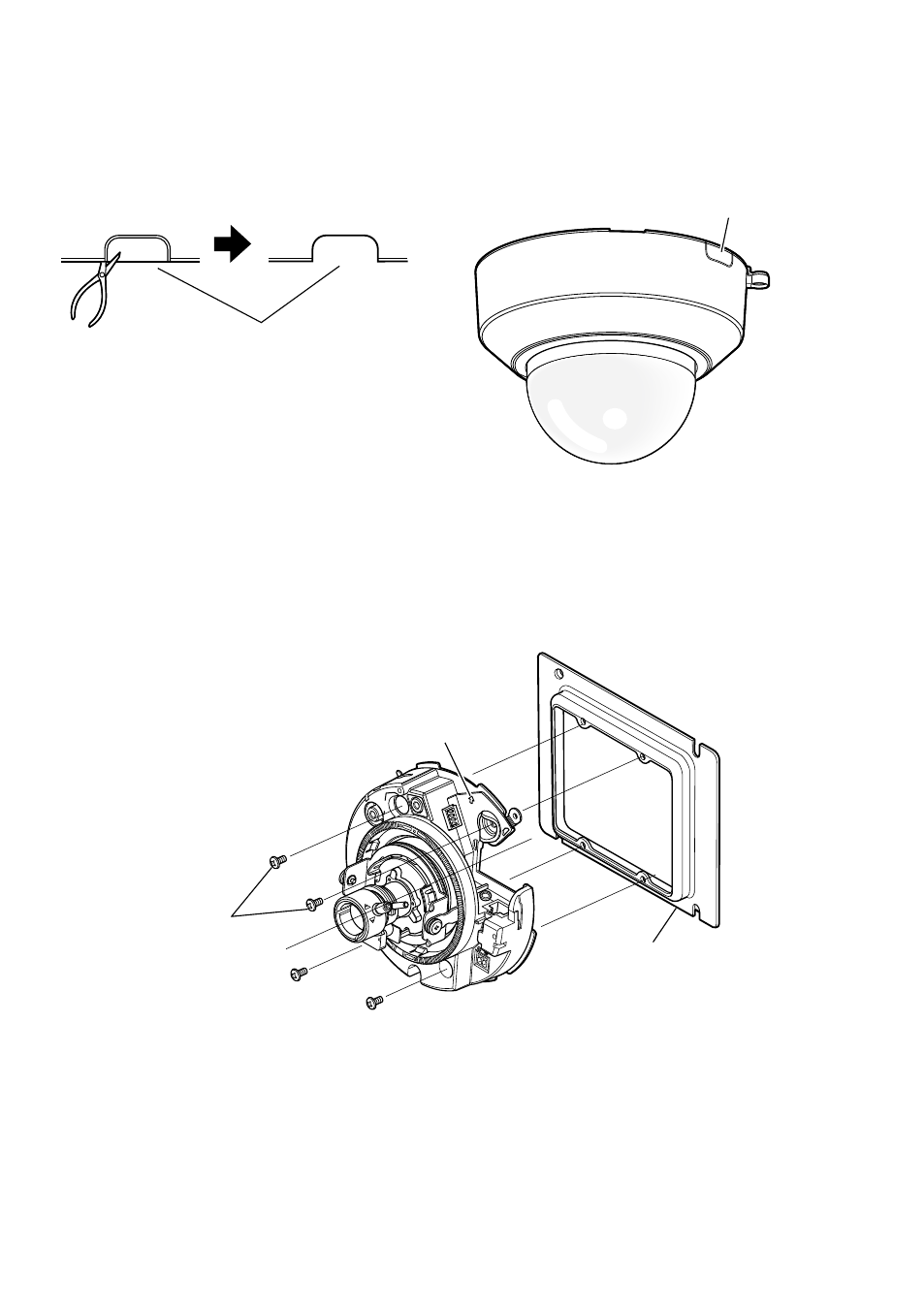

Using the side cable access hole
When installing the camera directly on the ceiling or wall with cables exposed or when using the
optional ceiling mount bracket WV-Q168, cut out a portion of the dome cover to open a cable
access hole.
Side cable access hole
Side cable access hole
Method of camera installation
Using the two-gang junction box
Mount the camera on the two-gang junction box by fixing 4 screws (locally procured). (☞ Page 28)
FRONT
TOP EXT I/O
AUDIO
OUT
MIC
LINE IN
10BAS
100BA
12V=IN
4
2
3
1
MONITOR
OUT
N
F
Direction marker for installation
Two-gang junction box
Screws
(locally procured)
